OPERATOR’S AND SAFETY HANDBOOK
1NO0060EN-00
Zebra 12 – Zebra 16
66

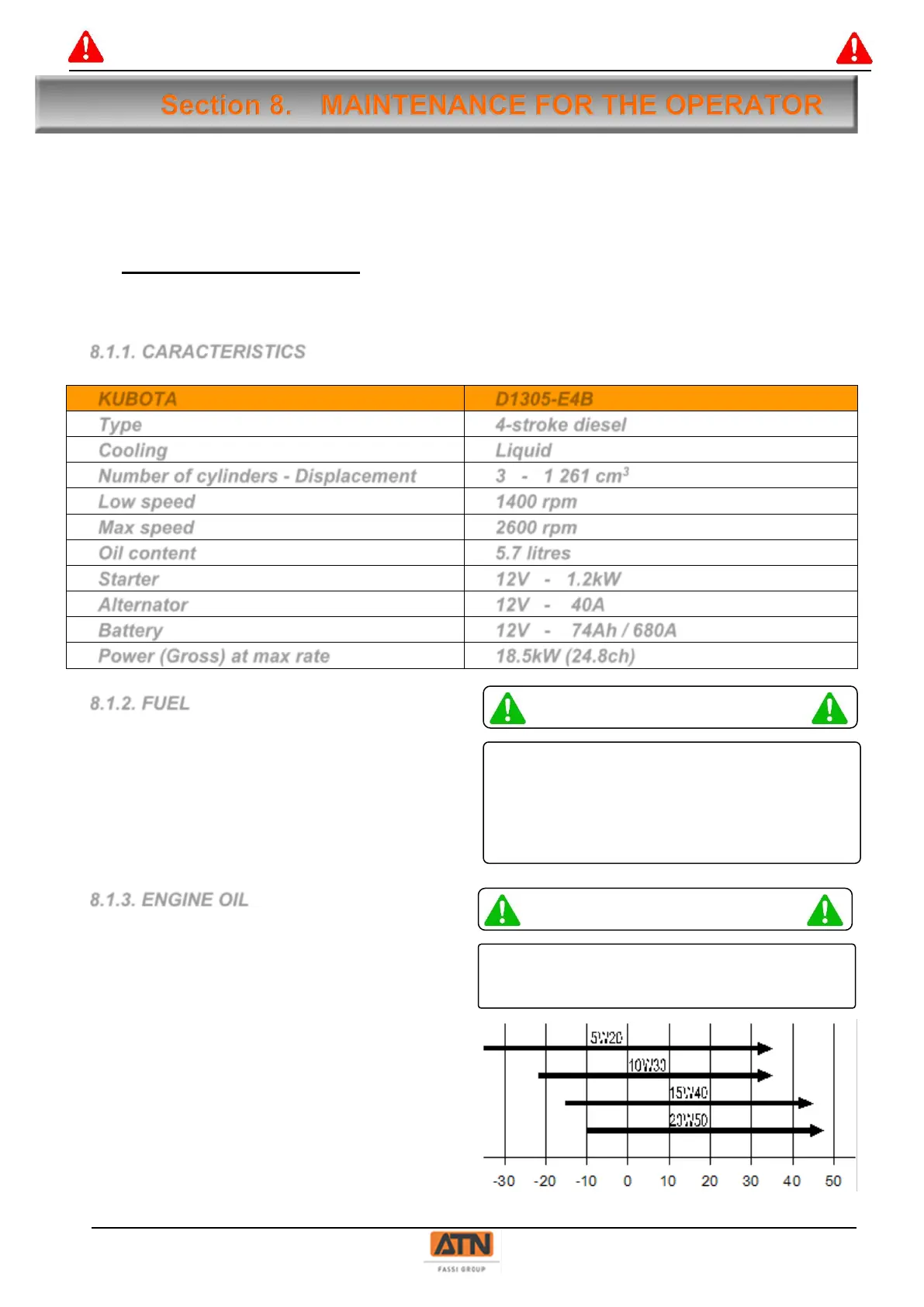

This section is intended to provide the operator with the information to carry out verification and
common maintenance operations on the machine. The following information does not replace
the machine's preventive maintenance and inspection programme.
8.1 COMBUSTION ENGINE
- NOTE-
Refer to the engine's maintenance manual for more information.
8.1.1. CARACTERISTICS
KUBOTA
D1305-E4B
Type
4-stroke diesel
Cooling
Liquid
Number of cylinders - Displacement
3 - 1 261 cm
3
Low speed
1400 rpm
Max speed
2600 rpm
Oil content
5.7 litres
Starter
12V - 1.2kW
Alternator
12V - 40A
Battery
12V - 74Ah / 680A
Power (Gross) at max rate
18.5kW (24.8ch)
8.1.2. FUEL
Make sure that there is enough fuel in the tank
to avoid discharging the circuit. Only use fuel for
GNR type diesel engines. Refer to the engine's
maintenance manual.
8.1.3. ENGINE OIL
At the factory, Multi-Grade 15W40 lubricant is
used in the machine. This type of lubricant
enables the engine to start at temperatures as
low as -15°C.
Depending on the operating conditions of the
machine, you may need to adapt the type of
lubricant (See graph opposite).
CAUTION
ONLY USE FUEL FOR GNR TYPE
DIESEL ENGINES.
MAKE SURE NO WATER OR
IMPURITIES GET IN WHEN FILLING THE
TANK.
CAUTION
USE OF SYNTHETIC OIL IS NOT
RECOMMENDED
.
