Refer to 4.2.3 – Combustion engine safety devices.

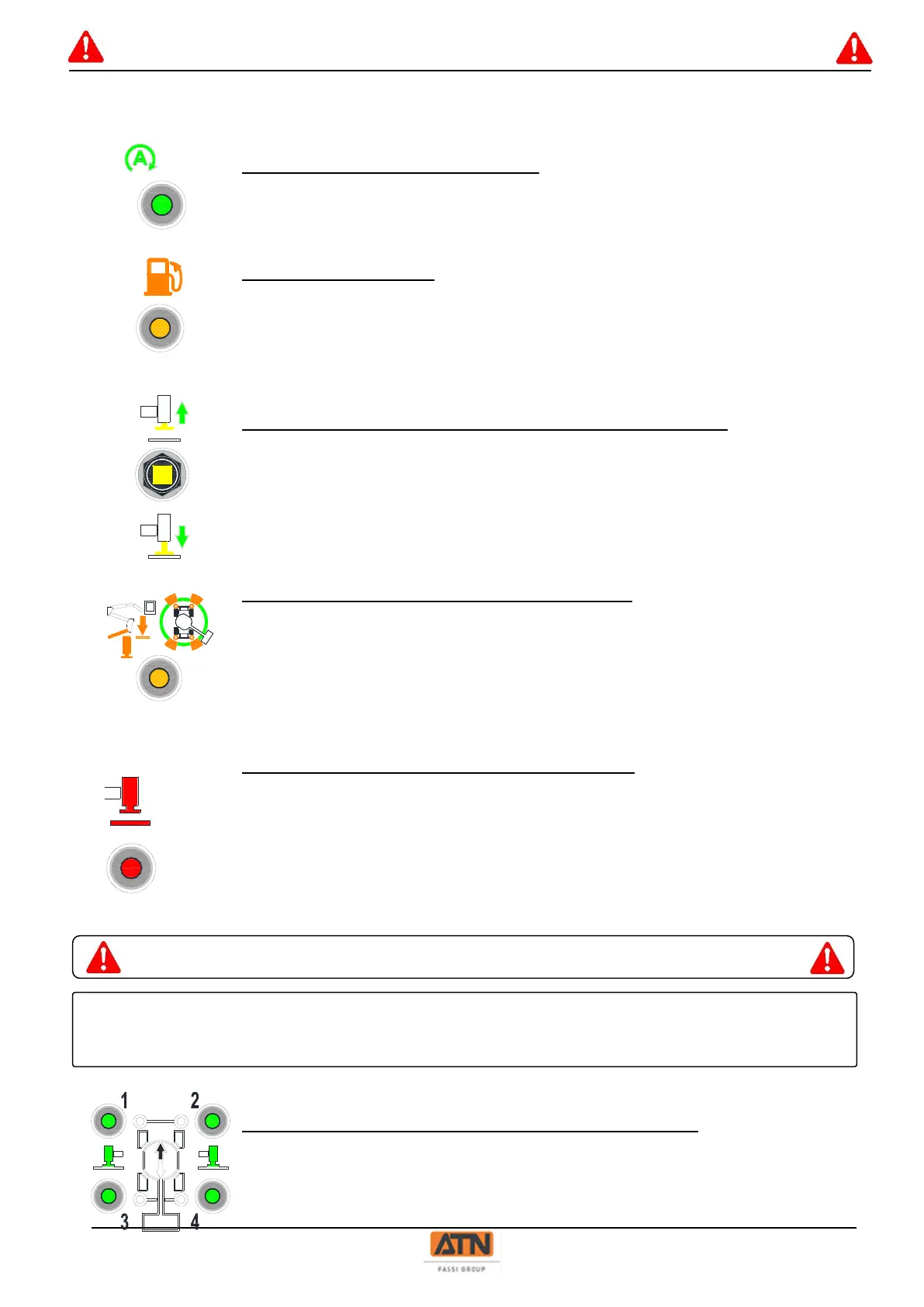

21- Stop & Start activation indicator:
This indicator lights up after the combustion engine has stopped through the
Stop & Start device.
Refer to Section 4.2 – Combustion engine operation.
22- Fuel level indicator:
This indicator lights up when the fuel level in the tank is low: you need to
add fuel in the tank.
Refer to Section 8.1.2 – Fuel.
23- Outrigger Extension/Retraction control (Z16 Stab only):
Tilt the lever downwards to extend the outriggers.
Tilt the lever upwards to retract the outriggers.
Refer to Section 4.5 – Outriggers.
24- Structure position indicator (Z16 Stab only):
The indicator comes on when, during a rotation movement, the structure is
above an outrigger. Lowering of arm 1 will be stopped automatically above
the outrigger. To fully lower arm 1, turn the structure until the arm is no
longer above the outrigger and the indicator light switches off.
Refer to Section 4.5 – Outriggers.
25- Outrigger position indicator (Z16 Stab only):
This indicator is lit:
• When the outriggers are in movement and do not contact the ground.
• When the four outriggers are not fully retracted.
• When at least ONE OF THE OUTRIGGERS DOES NOT OR DOES
NO LONGER CONTACT THE GROUND FIRMLY.
Refer to Section 4.5 – Outriggers.
26- Outrigger ground contact indicator (Z16 Stab only) :
The indicators are lit when the corresponding outriggers contact the
ground.
To Next Page
