OPERATOR’S AND SAFETY HANDBOOK
1NO0060EN-00
Zebra 12 – Zebra 16
77

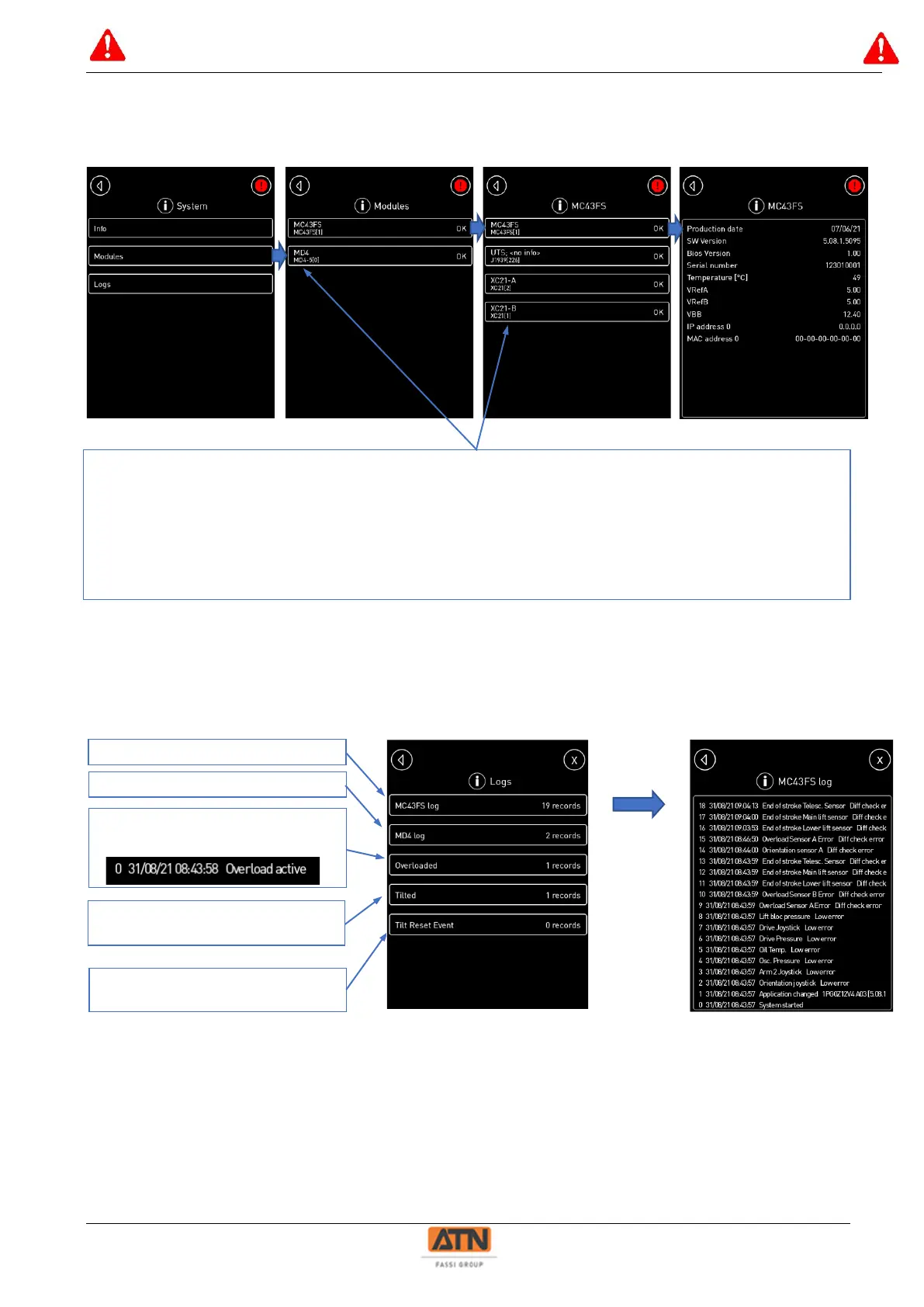

Modules : gives access to the information on each module, in particular the supply
voltage (VBB) and the 5V voltage delivered by the module (Vref).
Logs : Records the errors and events (overload, tilt, tilt reset)
Errors recorded on the MC43FS
Errors recorded on the MD4
Machine Event Overload with date
and time:
Machine Event tilt in elevated
position with date and time
Event Tilt reset done with date and
time
MC43FS: Master Module inside the lower control station. Status: OK or No contact (supply fault or
CANBUS)
MD4: Display. Status: OK or No contact (supply fault or CANBUS)
UTS : Tilt sensor. Status: OK or No contact (supply fault or CANBUS)
XC21-A/XC21-B : Slave module in the upper control station. Status: OK or No contact (supply fault or
CANBUS)
