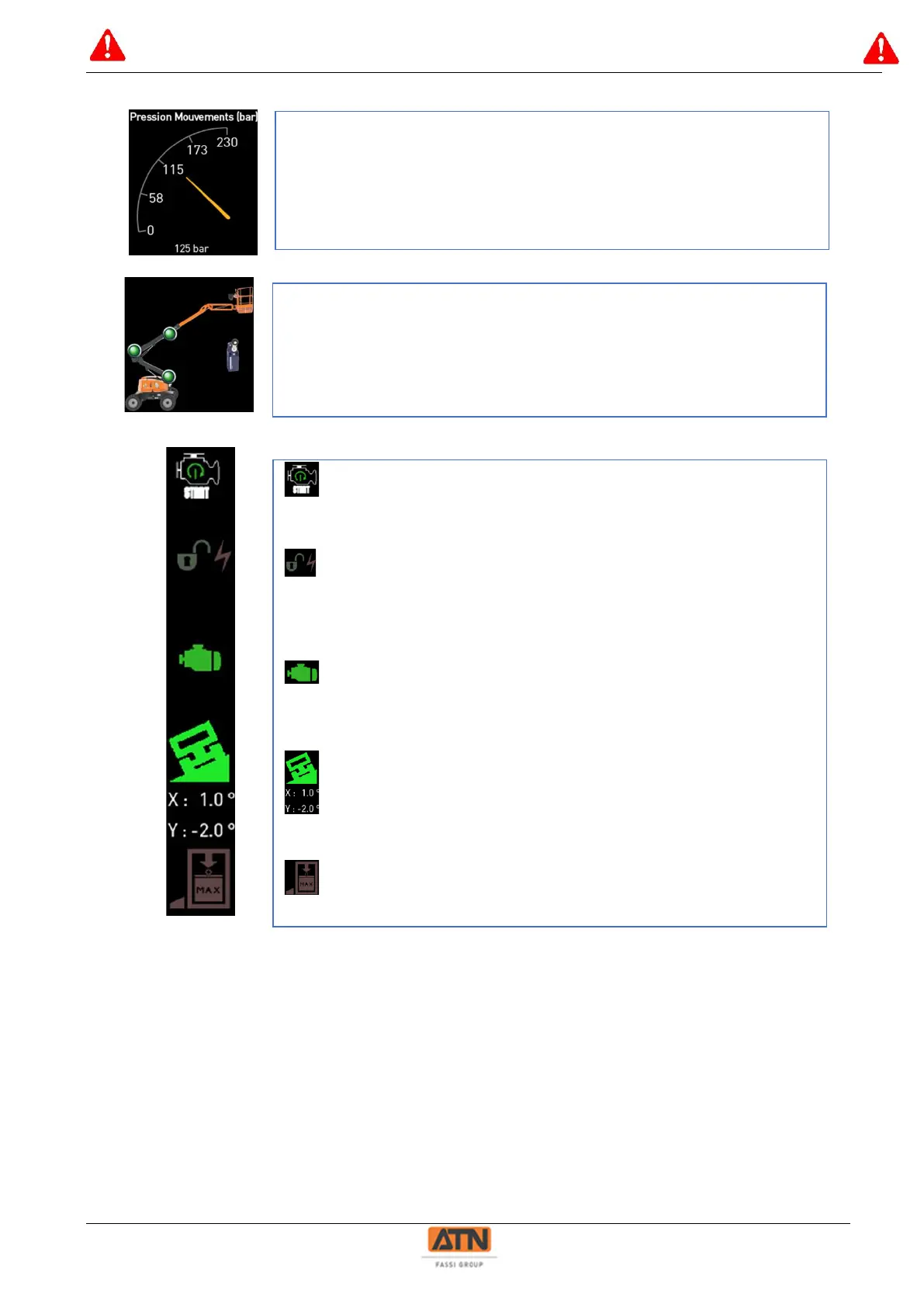

Pressure in the circuit of the elevation movement pilot block in bars.
Condition of the structure sensors Arm 1 / Arm 2 / Telescope.
When the machine is lowered, the 3 indicators must be lit in green.
Info Engine start button.
Info enable button lower control box.
Info engine running (sensor RPM info).
Tilt, lit green if ok and red if beyond or disconnected.
Overload, lit red if active.
