OPERATOR’S AND SAFETY HANDBOOK
1NO0060EN-00
Zebra 12 – Zebra 16
89

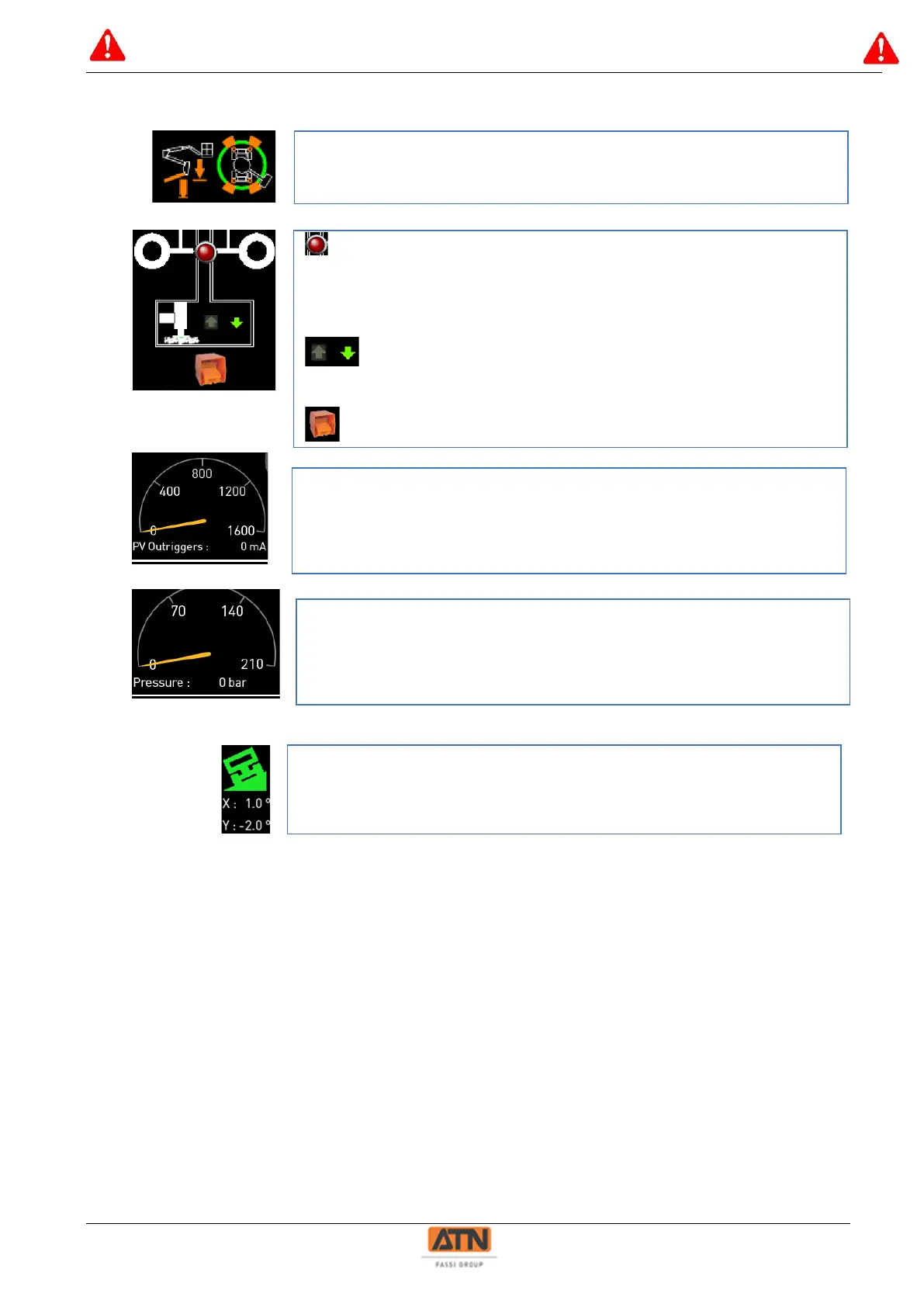

This indicator shows arm 1 is positioned above the outriggers and
authorises the complete rotation of the structure.
This indicator show the condition of the structure position sensor in
relation with the 4 outriggers (cam detection).
On, red : Arm 1 is above an outrigger.
On, green : Arm1 is positioned between the outriggers.
The arrow lit in green shows the activation of the outrigger up /
down control button.
Condition pedal upper control box, lit if active.
Info solenoid piloting in mA.
Pressure in the circuit of the outrigger movement piloting block in bars.
Tilt, lit green if ok and red if beyond.
Note : When the machine is on outriggers, chassis max tilt authorised is 1°.
