Choosing your power source
The Shinobi can be powered by the included AC-powered Battery
Eliminator, or by using a compatible DC battery. If you are the owner of
other Atomos devices, the batteries you have for these devices
(NP-Fseries)willbecompatiblewithyournewShinobi.
Battery Eliminator
Included in the Shinobi box is a Battery Eliminator. This connects directly to
the battery slot of your Shinobi and enables AC power connection. Please
note the Battery Eliminator is suitable for use with Atomos devices only.
Batteries
We recommend the use of optional Atomos NP-F type batteries and the
Atomos Power Kit with the Shinobi. The Shinobi can also use standard
NP-F compatible batteries. Charge new batteries before using them, using
a compatible battery charger. To attach the battery, gently slide it down into
the slot until it locks into position. To remove a battery, push the latch to
release it.
Before any type of disposal the battery should be discharged
completely. Tape the contacts with electrical tape and package so as to
prevent contacts accidentally coming together at any time.
Incineration must be performed by an approved and permitted waste
treatment facility that handles lithium ion batteries. If you are not sure
if your waste facility can handle lithium ion batteries, contact them and
verify if they are permitted or not.
Atomos NP-F Battery Charger (optional)
The Atomos NP-F Battery Charger has been designed to rapidly charge
the batteries yet be lightweight so that is easy to travel with.
In the unlikely event of a charge error the rst and fast red LEDs
ashing quickly.
Fast charging of the battery is possible up to 80% capacity and the
remaining 20% will then charge at a slower rate to maintain good
battery life.
Batteries do not charge in a linear way. At rst they charge very
quickly, and then the rate slows down to a trickle. While charging,
one or more red lights will blink. When 90% charge is reached, all the
lights will ash. It is perfectly OK to use the batteries at this point and
we recommend stopping at this stage for the longest battery life. If
you leave the batteries on charge after all four lights are ashing, the
charger goes into trickle charging mode for the nal 10%. Eventually,
when trickle charging is complete, and the batteries are at 100%
charge, all the lights will go out.
Choosing the right battery for your application
Battery time
(Based on 7.4V)
Standby mode Monitor mode
2600mAh - 3hrs 2600mAh - 1.5hrs
5200mAh - 6hrs 5200mAh - 3hrs
7800mAh - 12hrs 7800mAh - 6hrs
We recommend using Atomos NP-F series batteries.
DC to D-Tap Coiled Cable
An optional Atomos accessory is a DC to D-Tap Coiled Cable. This is
designed to allow you to power your device from an external battery system.
To use this simply connect the D-Tap connector to your power source.
Ensure that the output of the power source does not exceed 16.8V DC.
Batteries and modular accessories are held in place tightly because they
are on the outside of the device, this is to ensure there is no possibility
whatsoever that they work loose, so you may have to be quite rm
with the battery latches. We suggest that you familiarize yourself with
the force required to remove the battery and accessories so that you
can do this quickly in the eld.

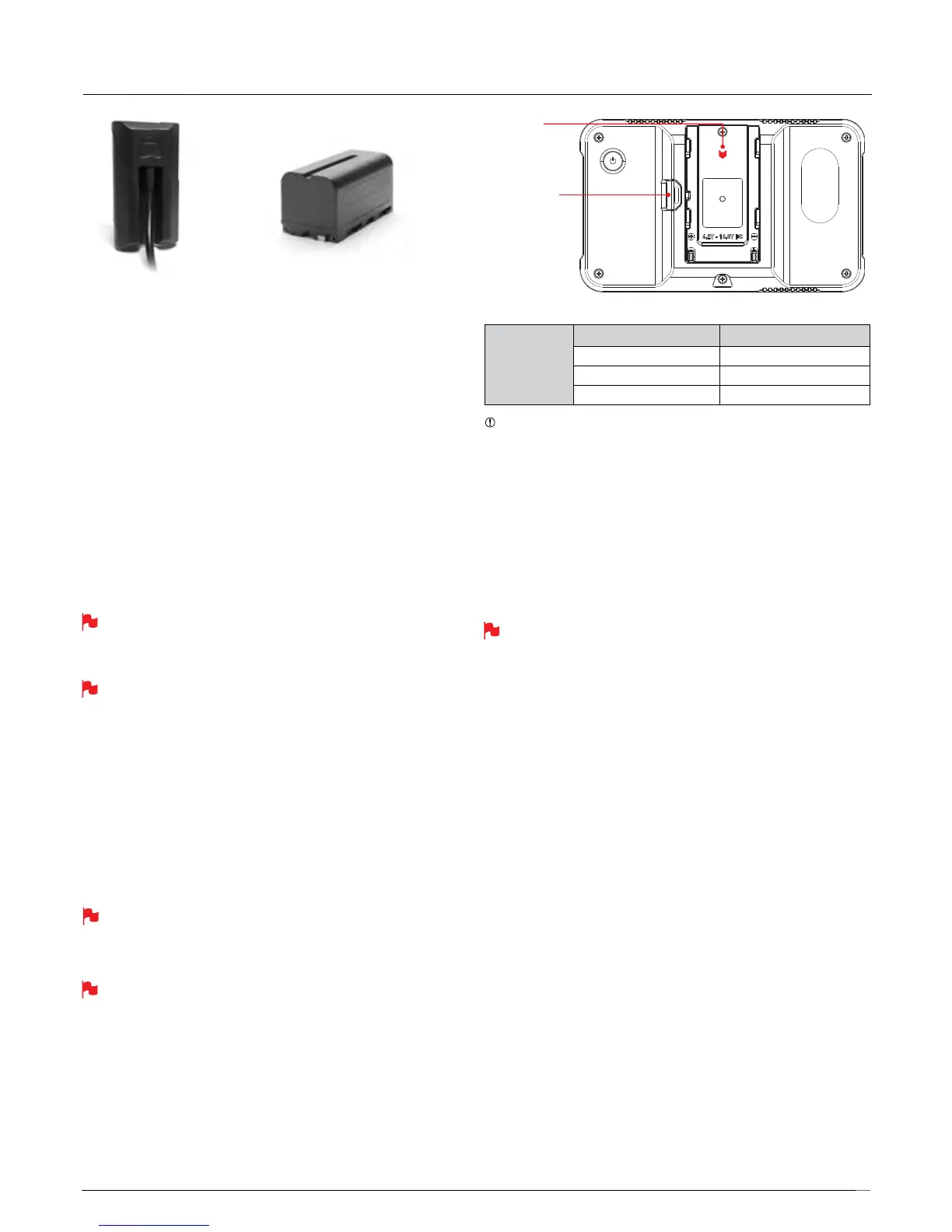

3. Powering the Shinobi
Battery slot
Gently slide
down into battery
slot and lock into
position
Push the release
button to unlock
the battery and
slide battery
upwards to
remove.
Battery
Eliminator
(included)
NP-F
Battery
(optional)
To Next Page
