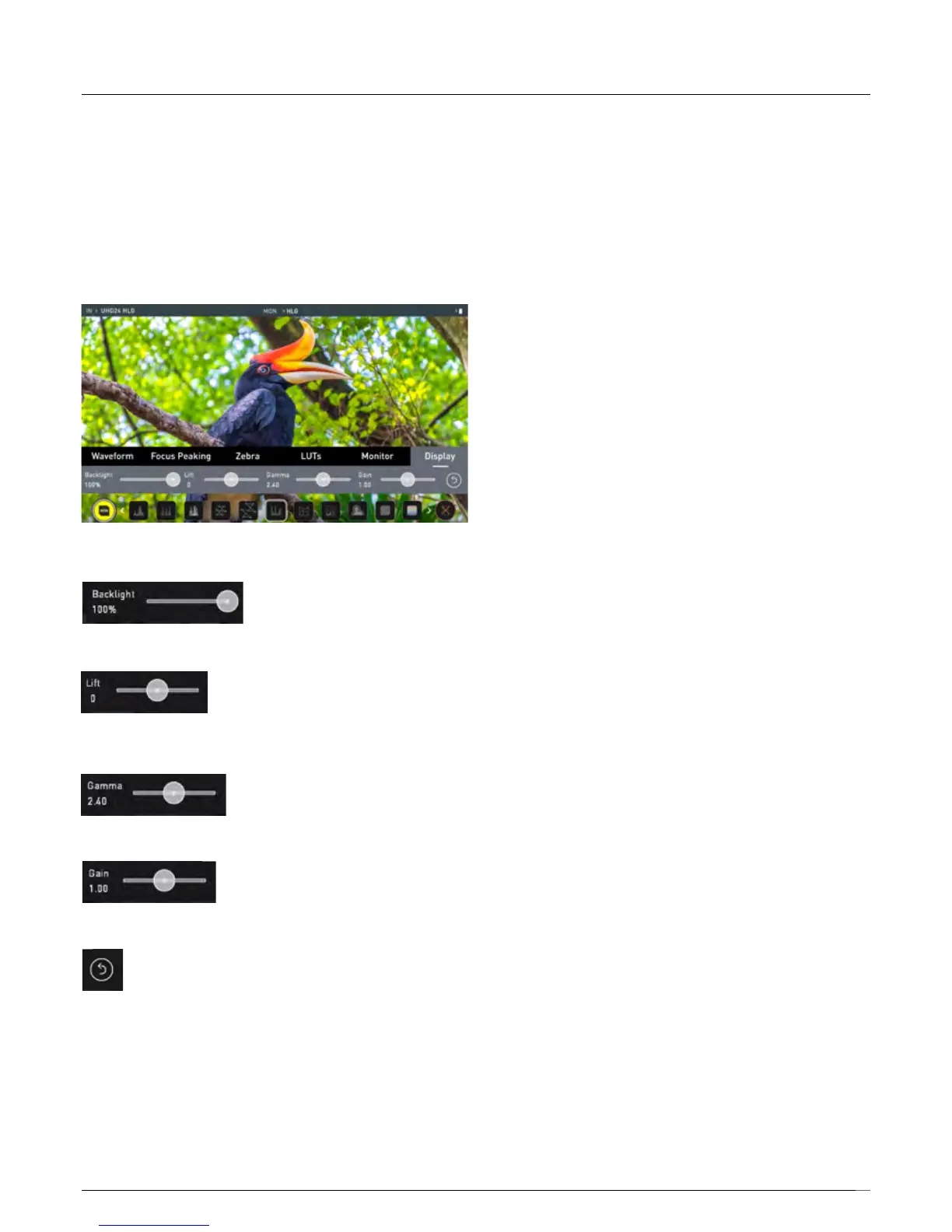

Display
With this mode selected you have the option to change the screen brightness by
adjusting the slider when in Native mode. As you slide to the right the brightness
will increase and when at 100% the image will be using the full 1000nits of the
display. As with any electronic screen device increasing the brightness will
increase the power draw and battery life will be effected accordingly.
Adjustments can also be made to the Lift, Gamma and Gain of the display.
You can tap the icon on the left of the menu to scroll through the options
and adjustments are again made by moving the slider left and right.
Backlight:
Adjust the strength of the backlight. Disabled during HDR monitoring
Lift:
Increasing lift will brighten the image and lessen the shadows
Gamma:
Gamma control allows you to create darker and richer shadows. This may be useful
when monitoring in bright daylight conditions.
Gain:
Gain will boost the image brightness and affect the highlights
Reset:
Quickly return all values to default
5. Using the Shinobi

Atomos SHINOBI Specifications

General

Aspect ratio	16:9
LED backlight	-
Pixel density	427 ppi
Display diagonal	5.2 \
Display technology	IPS
Input voltage	6.2 - 16.8 V
Power supply type	Battery
Power consumption (max)	7 W
Power consumption (typical)	4 W
HDMI version	1.4
Headphone out	Yes
Product color	Black
Housing material	Polycarbonate (PC)
Connecting thread	1/4 \
Compatible memory cards	SD
Cables included	HDMI
Audio sampling rate	48 kHz
Supported video modes	720p, 2160p
Resolution at capture speed	1280x720@50fps, 1920x1080@23.98fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@59.94fps, 3840x2160@23.98fps, 3840x2160@24fps, 3840x2160@25fps, 3840x2160@29.97fps, 4096x2160@23.98fps, 4096x2160@24fps, 4096x2160@25fps

Weight and Dimensions

Depth	31.5 mm
Width	151 mm
Height	91.5 mm
Weight	196 g
