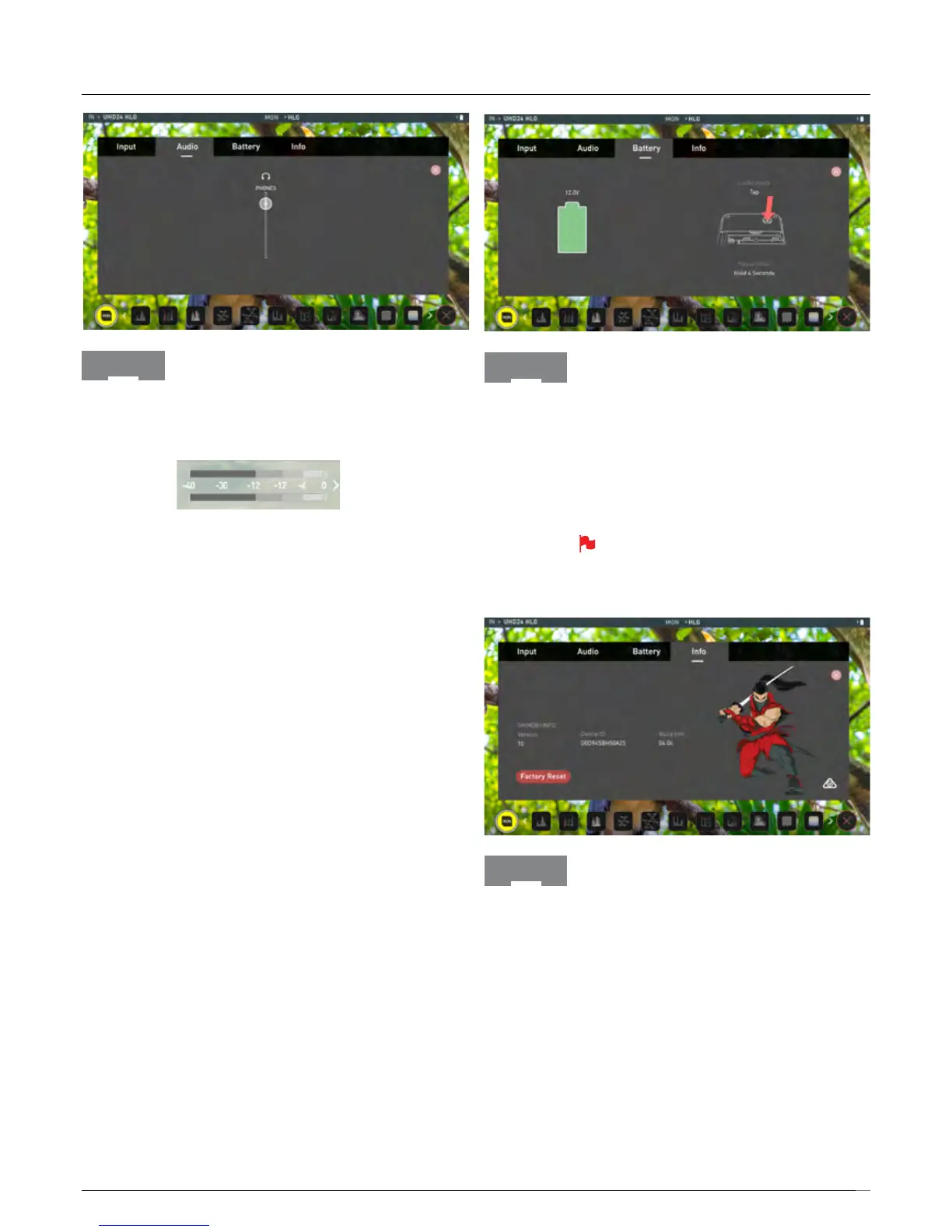

5. Using the Shinobi
Audio
The audio settings are easily accessible by touching the
audiometers(shownbelow)onthemonitorscreen.
Touching the meters will take you directly to the Audio
menu where you can adjust output volume.
Audio
Battery
The Battery icon on the left of the screen indicates the
remaining power in the attached battery.
When using the supplied Battery Eliminator, the
remaining power indicator will remain green and show
100% full. The displayed voltage will be determined by
the input source. Refer to your Shinobi quickstart guide
for more information regarding battery life.
When a battery is running low a message will
appear on screen. Warning message will appear
at approximately 6.3V remaining.
Battery
Info
Showsthesoftware(rmware)versionanduniquedevice
ID(DID)ofyourShinobidevice.Youcancheckonthe
Atomos website to ensure you are running the latest
rmware:www.atomos.com/support
Info

Atomos SHINOBI Specifications

General

Aspect ratio	16:9
LED backlight	-
Pixel density	427 ppi
Display diagonal	5.2 \
Display technology	IPS
Input voltage	6.2 - 16.8 V
Power supply type	Battery
Power consumption (max)	7 W
Power consumption (typical)	4 W
HDMI version	1.4
Headphone out	Yes
Product color	Black
Housing material	Polycarbonate (PC)
Connecting thread	1/4 \
Compatible memory cards	SD
Cables included	HDMI
Audio sampling rate	48 kHz
Supported video modes	720p, 2160p
Resolution at capture speed	1280x720@50fps, 1920x1080@23.98fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@59.94fps, 3840x2160@23.98fps, 3840x2160@24fps, 3840x2160@25fps, 3840x2160@29.97fps, 4096x2160@23.98fps, 4096x2160@24fps, 4096x2160@25fps

Weight and Dimensions

Depth	31.5 mm
Width	151 mm
Height	91.5 mm
Weight	196 g
