Atomos SHINOBI User Manual

Atomos Shinobi – User Manual Edition 1: February 2019
2
Introduction

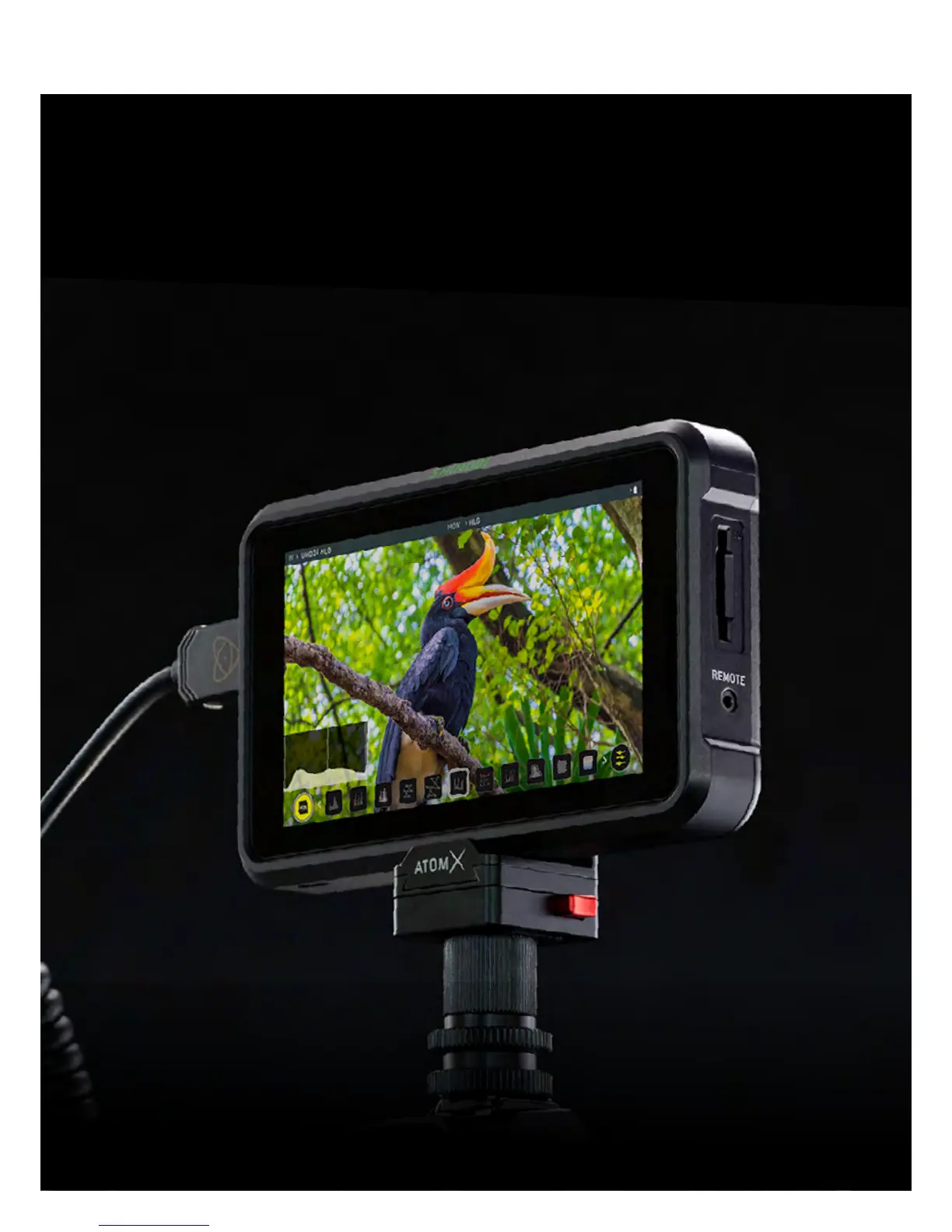

Thank you for choosing the Atomos Shinobi 5.2 inch HDR Monitor.
Featuring a super high-resolution screen in a lightweight polycarbonate
ABS chassis, and an array of essential production tools including
waveformmonitoring,vectorscope,luma,focusassistandtheworld’s
leading support for HDR monitoring.
This user manual will get you up to speed with all the amazing features
packed into the Shinobi. Stay up-to-date with the latest information and
software by registering your product today
www.atomos.com/support
SHINOBI

Atomos SHINOBI Specifications

General

Aspect ratio	16:9
LED backlight	-
Pixel density	427 ppi
Display diagonal	5.2 \
Display technology	IPS
Input voltage	6.2 - 16.8 V
Power supply type	Battery
Power consumption (max)	7 W
Power consumption (typical)	4 W
HDMI version	1.4
Headphone out	Yes
Product color	Black
Housing material	Polycarbonate (PC)
Connecting thread	1/4 \
Compatible memory cards	SD
Cables included	HDMI
Audio sampling rate	48 kHz
Supported video modes	720p, 2160p
Resolution at capture speed	1280x720@50fps, 1920x1080@23.98fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@59.94fps, 3840x2160@23.98fps, 3840x2160@24fps, 3840x2160@25fps, 3840x2160@29.97fps, 4096x2160@23.98fps, 4096x2160@24fps, 4096x2160@25fps

Weight and Dimensions

Depth	31.5 mm
Width	151 mm
Height	91.5 mm
Weight	196 g
