Atomos SHINOBI User Manual

Atomos Shinobi – User Manual Edition 1: February 2019
3

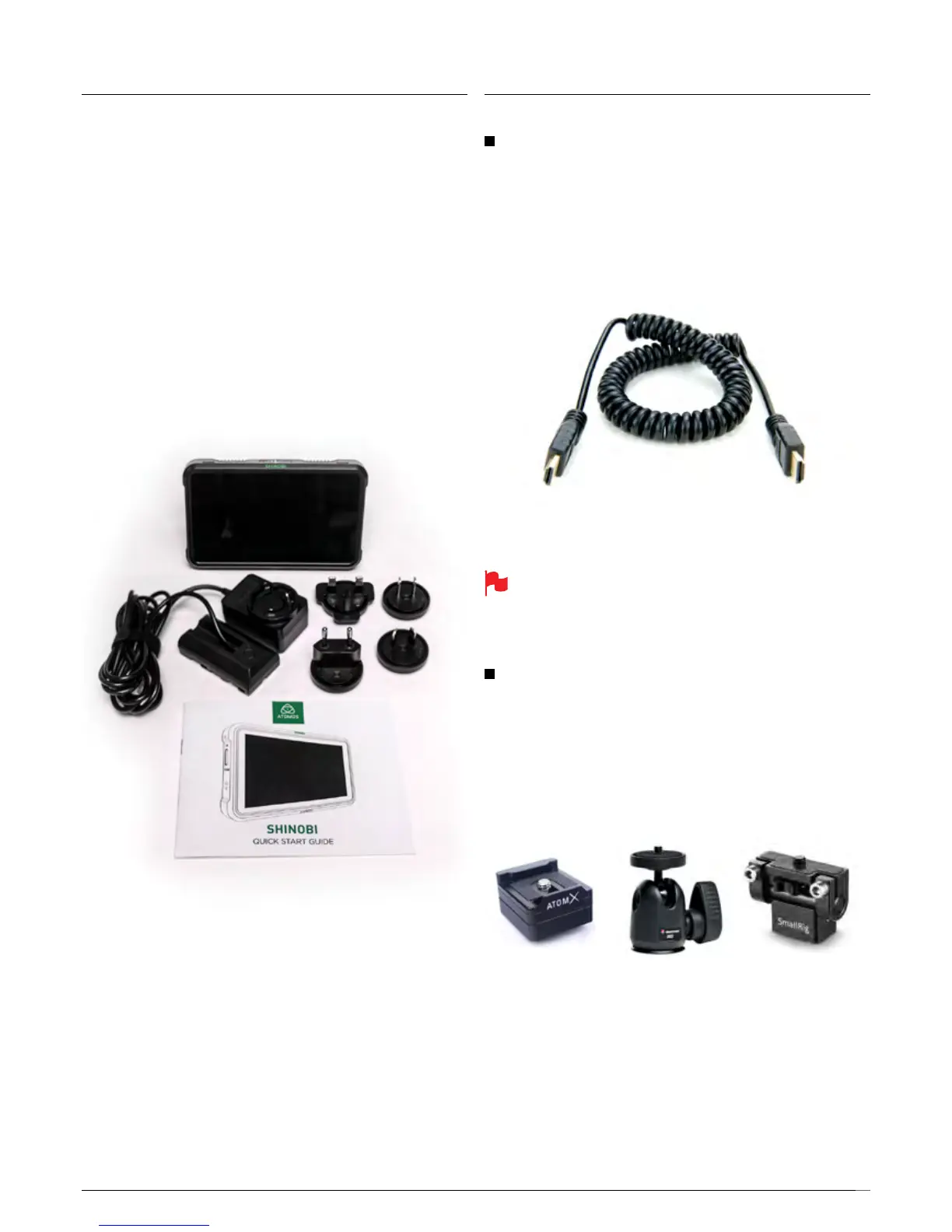

Your Shinobi includes base accessories to get you started, such as a
mains power supply. Additionally you will need a compatible HDMI cable
(Cameraout/Shinobiin)andcompatiblebatteries.OptionalAtomX
accessories including power and accessory kits and are also available.
Visit the Atomos website for the latest accessory options.
Included:
q 1 x Shinobi
q 1 x AC Power Adaptor
q 1 x Quick Start Guide
1. What’s included 2. What you also need
HDMI cables
Take care to use HDMI cables of the appropriate grade and take care to
protect them from damage. Signal issues can often result from damaged
HDMI cables, or using cables that are too long.
Atomos make a range of professional HDMI cables which are ideal for
connecting between your camera and Shinobi. We advise the use of
Atomos HDMI 2.0 cables.
Not all HDMI cables are created equal and there are a variety of different
qualities available. Please make sure you test your cables prior to shooting.
Also check your connectivity at both the camera connector and the
monitor connector to make sure you have a rm connection to avoid
any signal drop out.
Standard 1/4” Mount/Arm
The Shinobi unit includes 1/4”-20 screw mounts top and bottom. It is
compatible with the latest mounting solutions from companies such as
Shape, SmallRig and Wooden Camera. Select the mount type that best
suits your input device, application and conditions.
Below are some examples of tripod and cold shoe mounts, available from
most camera and video specialists.
A secure mount will greatly enhance usability and security of HDMI, power,
remote and audio connections. Related info on page 10.

Atomos SHINOBI Specifications

General

Aspect ratio	16:9
LED backlight	-
Pixel density	427 ppi
Display diagonal	5.2 \
Display technology	IPS
Input voltage	6.2 - 16.8 V
Power supply type	Battery
Power consumption (max)	7 W
Power consumption (typical)	4 W
HDMI version	1.4
Headphone out	Yes
Product color	Black
Housing material	Polycarbonate (PC)
Connecting thread	1/4 \
Compatible memory cards	SD
Cables included	HDMI
Audio sampling rate	48 kHz
Supported video modes	720p, 2160p
Resolution at capture speed	1280x720@50fps, 1920x1080@23.98fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@59.94fps, 3840x2160@23.98fps, 3840x2160@24fps, 3840x2160@25fps, 3840x2160@29.97fps, 4096x2160@23.98fps, 4096x2160@24fps, 4096x2160@25fps

Weight and Dimensions

Depth	31.5 mm
Width	151 mm
Height	91.5 mm
Weight	196 g
