Turning ON power to the Shinobi
The power button is located rear of the unit. With a charged battery or
supplied battery eliminator attached momentarily press the recessed
circular button to power up the unit. After a couple of seconds you will see
the Atomos logo, and then the Shinobi Home Screen.
Turning OFF power to the Shinobi
To turn the unit off, do a forced power down by pressing the power button
for ve seconds.
Five seconds can seem like a long time! We’ve made it this
way to make absolutely certain that the Shinobi can’t be turned
off accidentally.
Do not press and hold the power button in when the Shinobi while the
unit is off. This will place the device in to a Firmware recovery mode.
If you accidentally do this, simply turn the device off again or remove
the power source.
Take note to respect the air ow and do not to obstruct the cooling
vents of the unit.

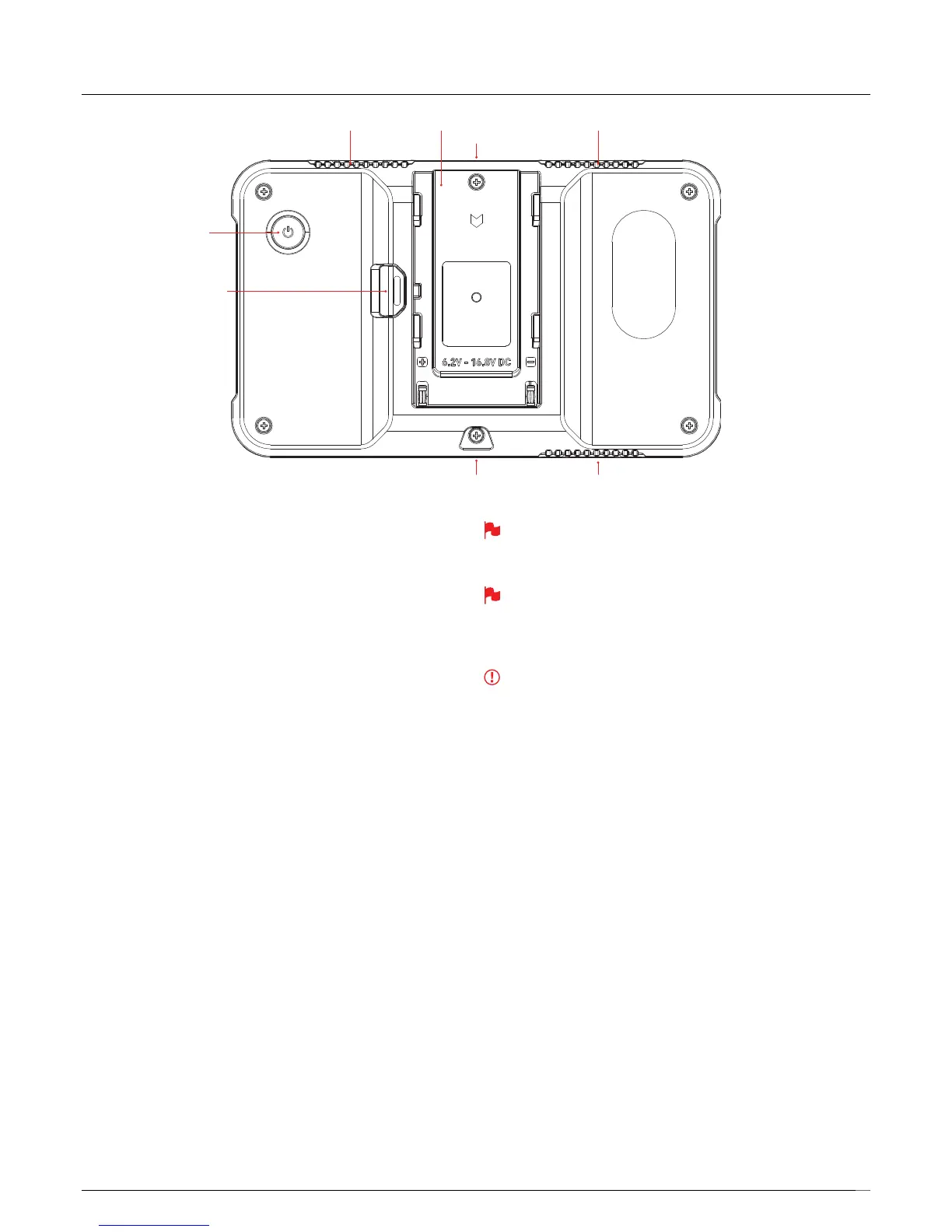

3. Powering the Shinobi
1/4” screw hole
Battery Slot Ventilation
Ventilation
Ventilation
1/4” screw hole
Battery release
Power

Atomos SHINOBI Specifications

General

Aspect ratio	16:9
LED backlight	-
Pixel density	427 ppi
Display diagonal	5.2 \
Display technology	IPS
Input voltage	6.2 - 16.8 V
Power supply type	Battery
Power consumption (max)	7 W
Power consumption (typical)	4 W
HDMI version	1.4
Headphone out	Yes
Product color	Black
Housing material	Polycarbonate (PC)
Connecting thread	1/4 \
Compatible memory cards	SD
Cables included	HDMI
Audio sampling rate	48 kHz
Supported video modes	720p, 2160p
Resolution at capture speed	1280x720@50fps, 1920x1080@23.98fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@59.94fps, 3840x2160@23.98fps, 3840x2160@24fps, 3840x2160@25fps, 3840x2160@29.97fps, 4096x2160@23.98fps, 4096x2160@24fps, 4096x2160@25fps

Weight and Dimensions

Depth	31.5 mm
Width	151 mm
Height	91.5 mm
Weight	196 g
