Shenzhen AtomStack Technologies Co., Ltd. support@atomstack3d.com
15
fixed focus plate (once in contact, the laser can be lifted up slightly to
remove the fixed-focus film at the end).

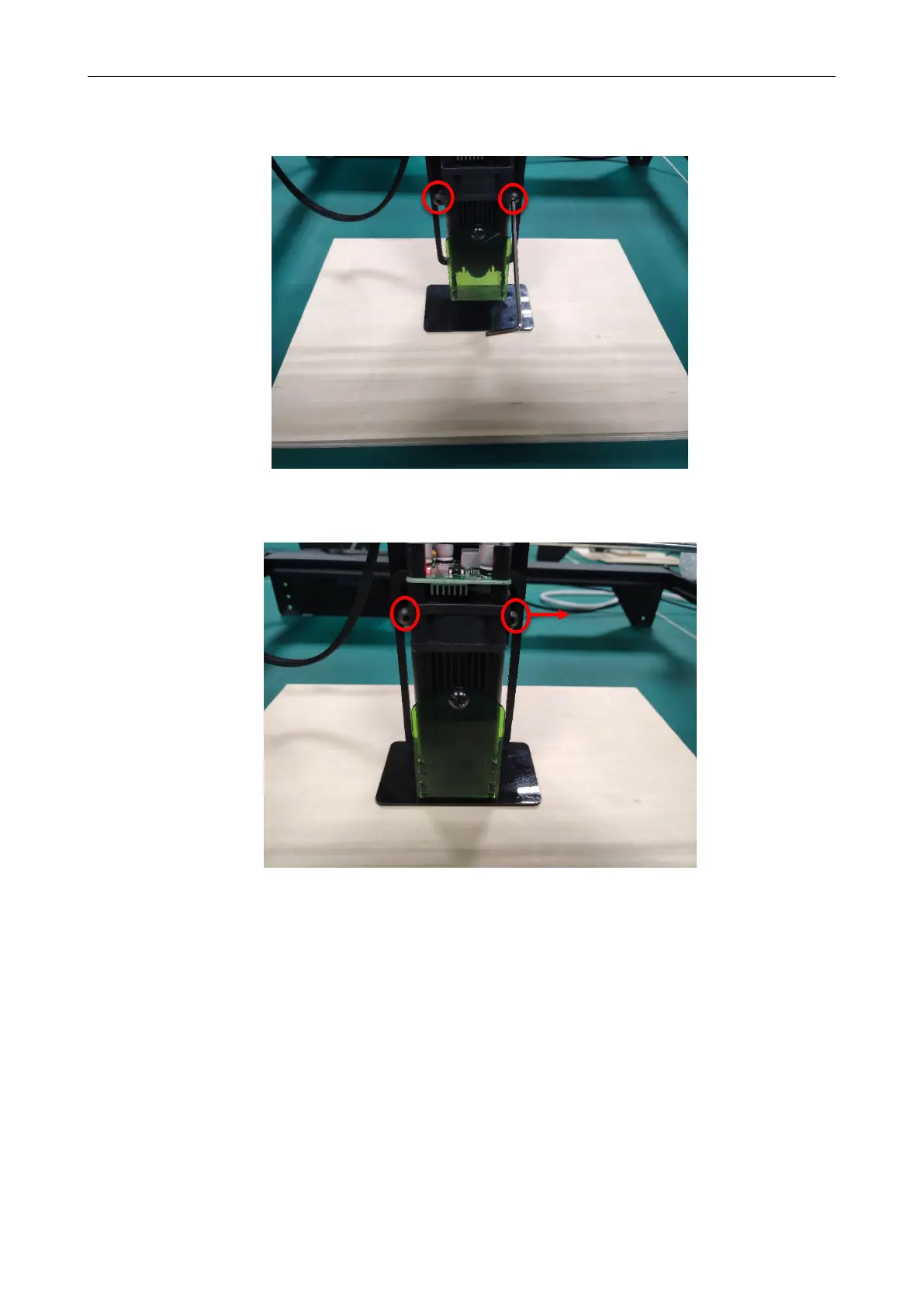

B. Picture 2.12 Adjusting the laser distance
C. Tighten the fixing screws of the slides on both sides of the laser.
Picture 2.13 fixing screws
D. Take out the fixed focus piece and finish focusing.
Tighten

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ATOMSTACK A5 and is the answer not in the manual?

ATOMSTACK A5 Specifications

General IconGeneral
Engraving Accuracy0.01mm
Data Transmission MethodUSB
Engraving Area400 x 400 mm
Laser Output Power5W
Laser Protective CoverYes
Operating SoftwareLaserGRBL
Supported File FormatsBMP, JPG, PNG, DXF
Supported MaterialsWood, Leather
