Shenzhen AtomStack Technologies Co., Ltd. support@atomstack3d.com
17
emits irradiation point is the center of the engraving pattern, based on
this, adjust the position of the engraved object!
D. Click "Profile Scan" button, the laser will start to scan the outer
contour of the pattern on the computer, you can change the position of the
engraved object again according to the scanned outer contour position.
Besides: You can click on the "wrap-around" button for several times until
the outer contour is at the position you want to engrave.

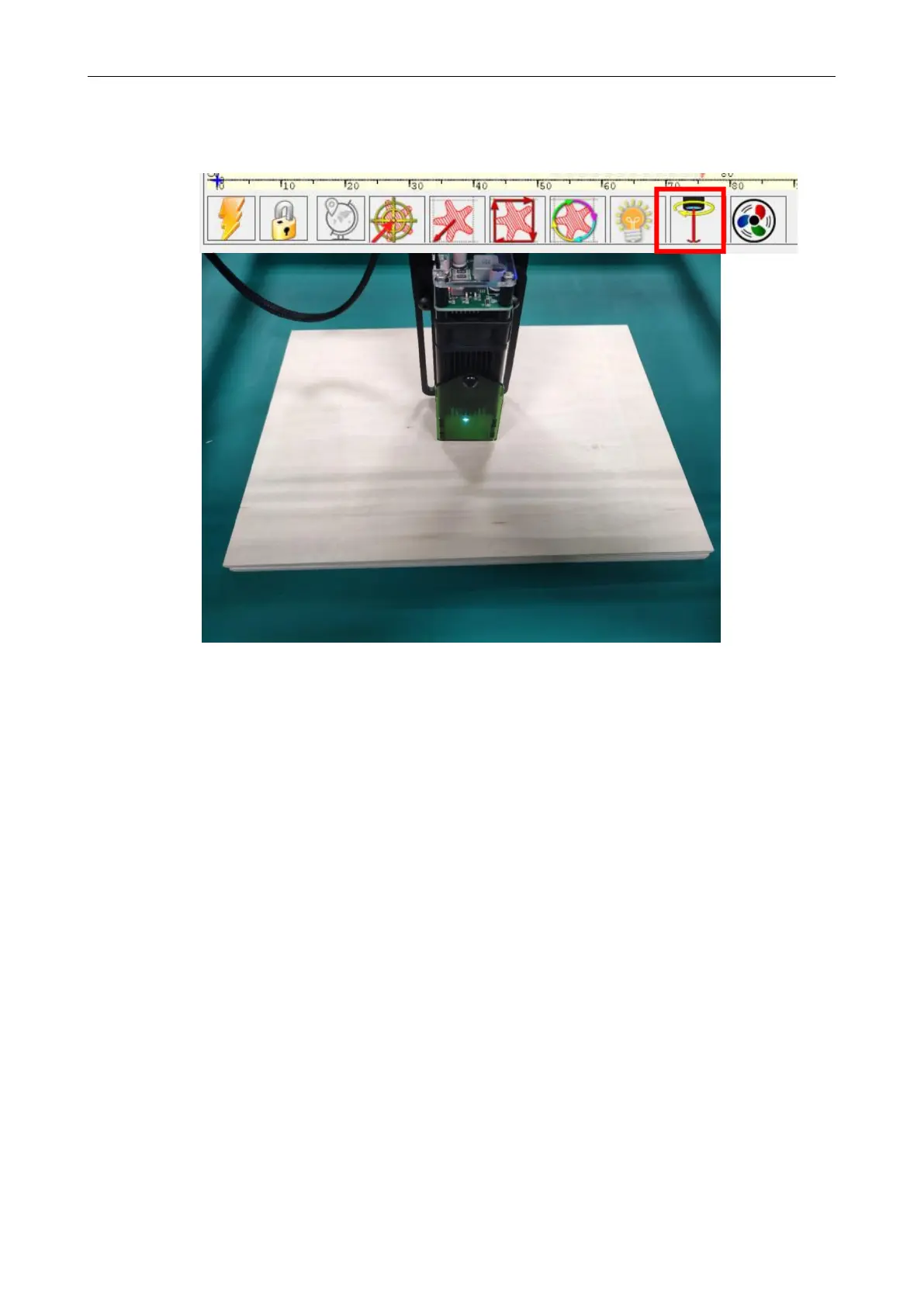

Picture 2.16 light laser
