e-motion™ Operating Manual - B-Level STD
MACHINE HANDLING
Caution!
The (filled) Hopper is heavy!
!
!

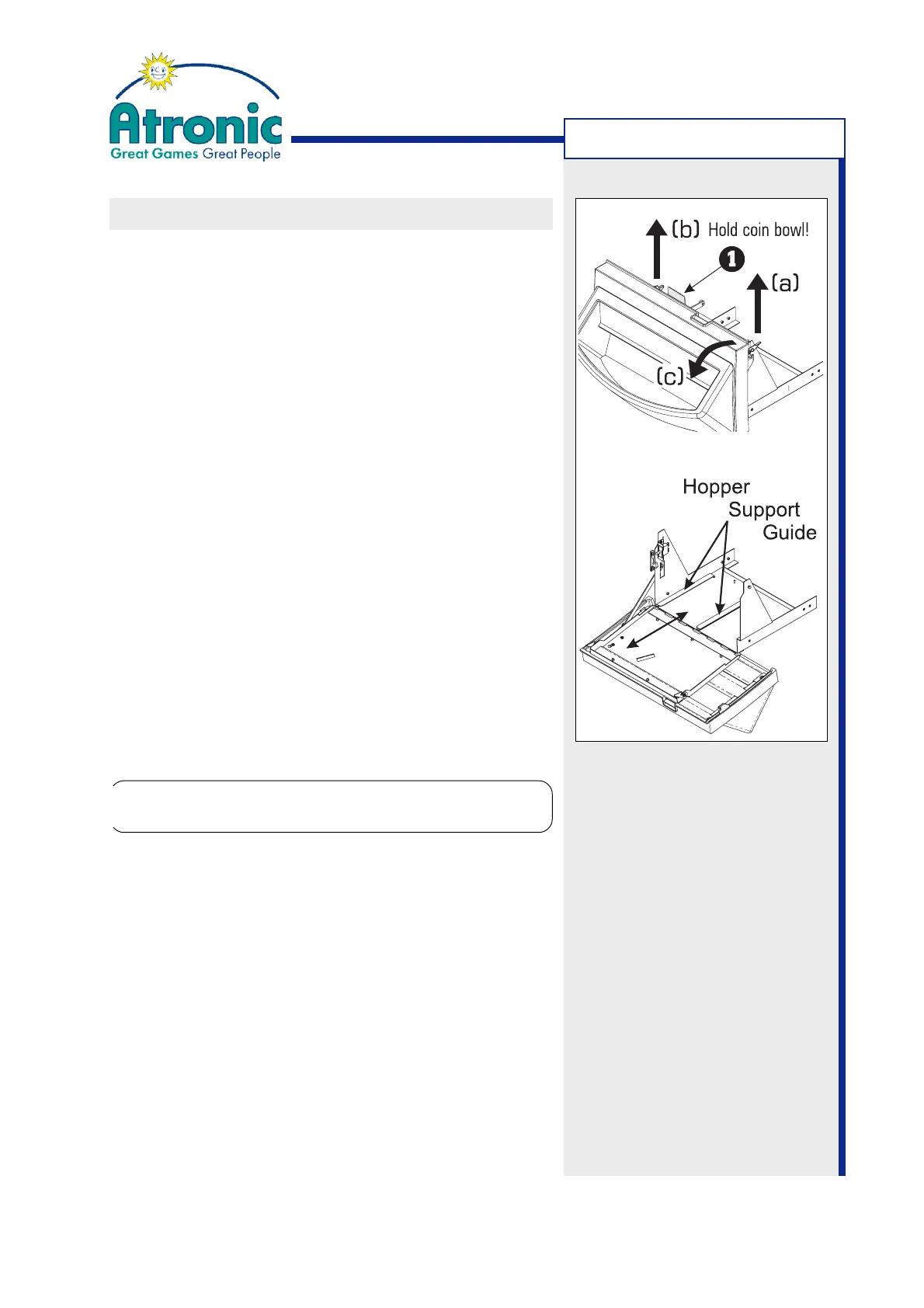

HOPPER REMOVAL AND REPLACEMENT
To remove the hopper for replacement or maintenance,
follow these steps.
1. Unlock and open the maindoor.
2. Turn the machine power off.
3. Close the maindoor.
4. Make sure the coin bowl is empty and open the
hopper drawer.
5. Lift the coin bowl retaining lever on the right
side of the hopper drawer (a).
6. Hold the Coin Bowl, to prevent it from falling open,
and release the second coin bowl retaining lever
on the left side of the hopper drawer (b).
7. Gently lower the coin bowl until it stops (c).
8. Slide the hopper completely out of the hopper
support guide. Do not use the hopper coin switch
or any other sensitive part to carry or pull the
hopper.
