Atronic e-motion - Peripheral Voltage Requirements and Pin-Outs

57
April 2007
e-motion™ Operating Manual - B-Level STD
PERIPHERALS VOLTAGE REQUIREMENTS & CONNECTORS PIN-OUT
Coin Acceptor
Required Voltage: 12V
Connected to: Coinboard
Connector: P3 (NRI-G13)
P4 (MC-16)
Bill Acceptor
Required Voltage: 24V
Connected to: Filterboard Signal
Connector: P7
Hopper
Required Voltage: 24V
Power Consumption: payout mode 0,5A-1,3A
blocking ~3,3A
Connected to: Hopperboard
Connector: P2
Voucher Printer
Required Voltage: 24V
Connected to: Filterboard Signal
Connector: P1
Toplight
Required Voltage: 12V
Connected to: Filterboard Signal
Connector: P6
VOLTAGE / PIN-OUTS
Hopper motor - forward:
pin 1 = +24V
pin 2 = GND
Hopper motor - reverse:
pin 1 = GND
pin 2 = +24V

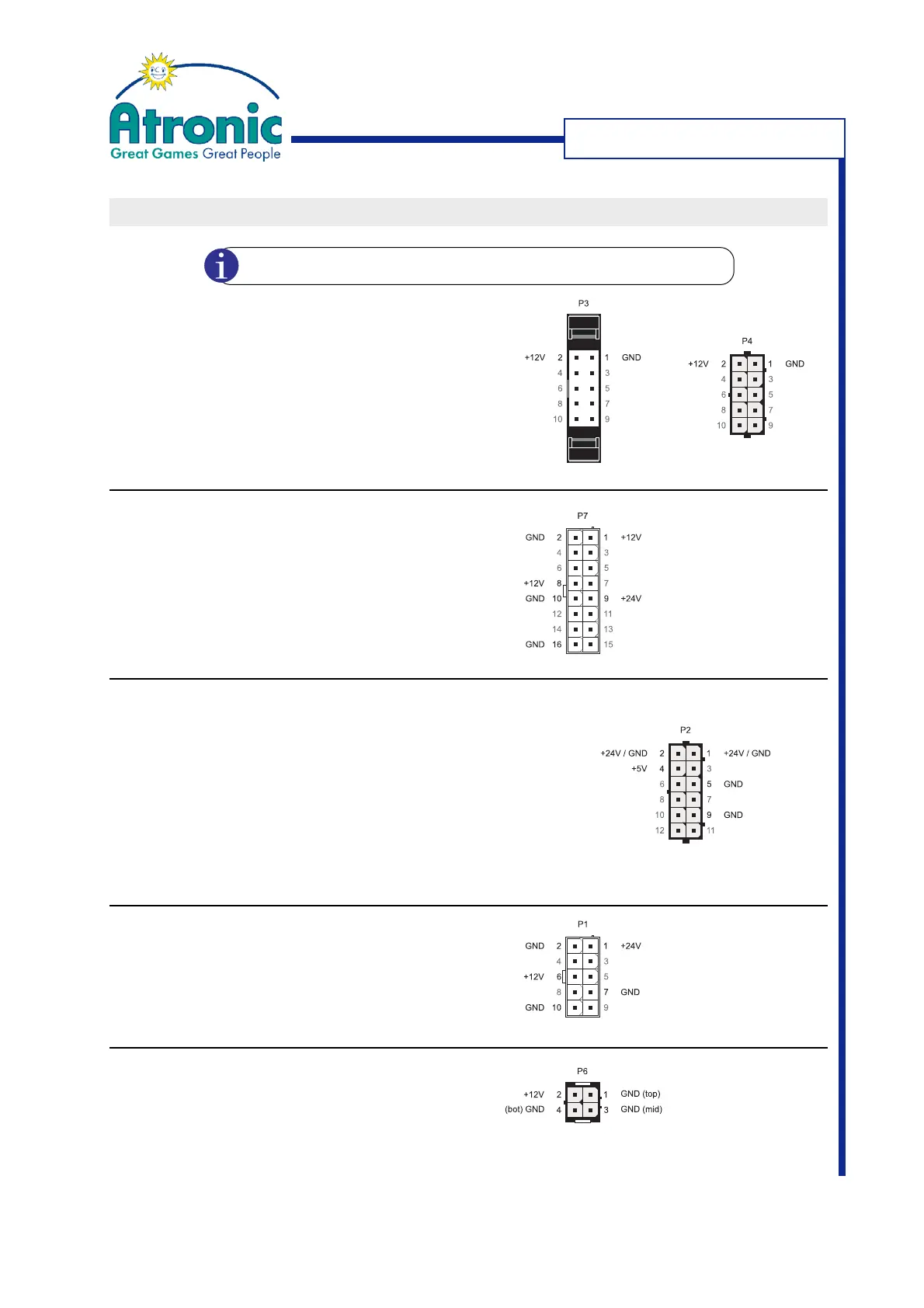

Figures show board female connector pin layouts.
