e-motion™ Operating Manual - B-Level STD
Top Glass
Release
Lever
Button
Panel
Release
Lever

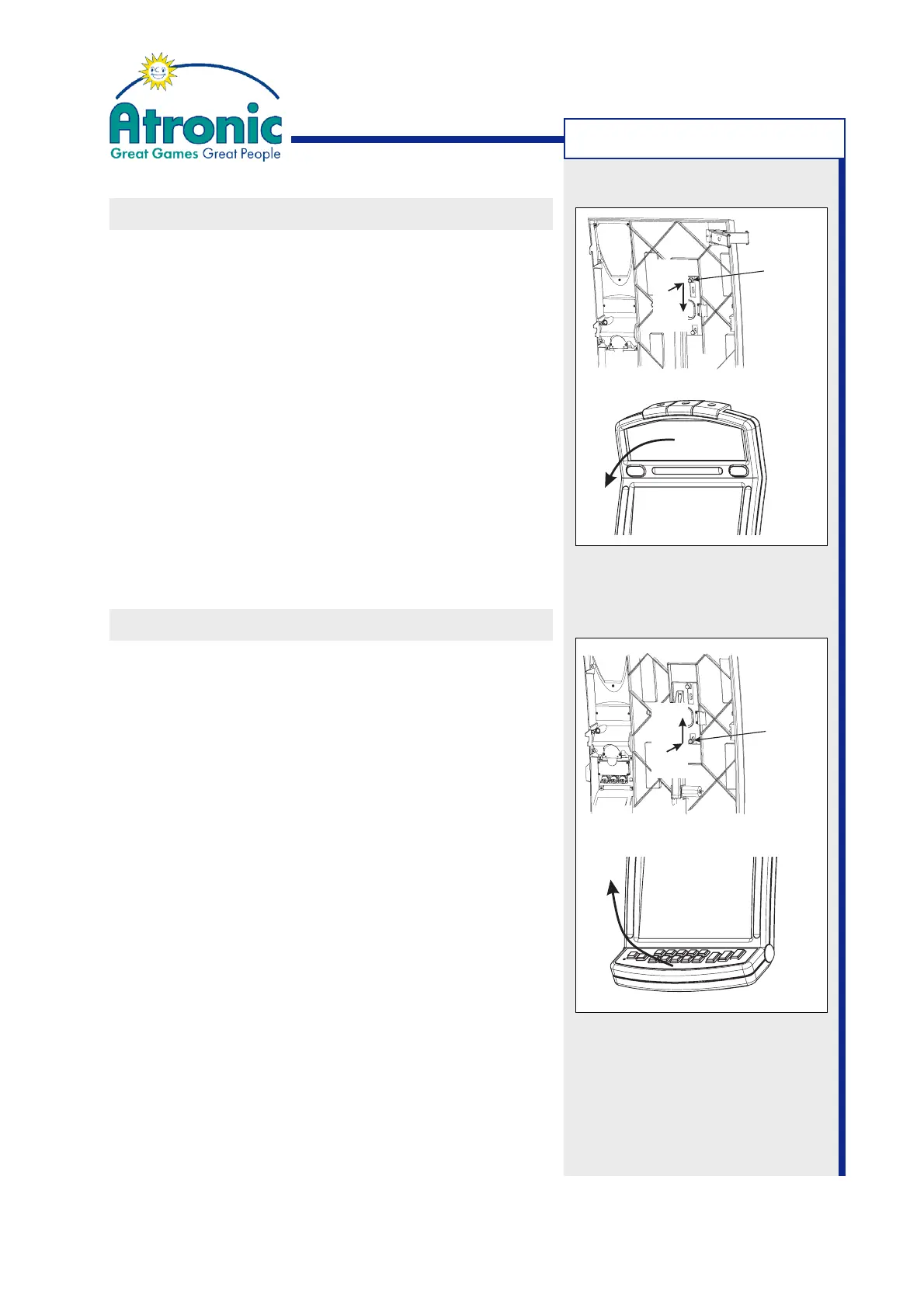

TECHNICAL PROCEDURES
EXCHANGING THE TOP GLASS
To exchange the top glass, follow these steps:
1. Open the maindoor and locate the top glass re-
lease lever on the inner side of the maindoor.
2. Press and slide the release lever downwards, while
holding the top glass with the other hand to pre-
vent it from falling out of it's mounting.
3. Take out top glass.
It might be necessary to push the glass a bit
downwards to take it out of its mounting.
4. Install new top glass in reversed order.
EXCHANGING THE BUTTON PANEL
To exchange the button panel assembly, follow these
steps:
1. Open the maindoor and locate the button panel
release lever.
2. Press and slide the release lever upwards.
3. Take out the button panel assembly while unplug-
ging all cables. Remove the earthing cable, which
is fixed with a knurled screw.
Note:
The bottom side of the button panel has some
sharp edges. Avoid scratching the playfield cover.
4. Install new button panel in reversed order.
