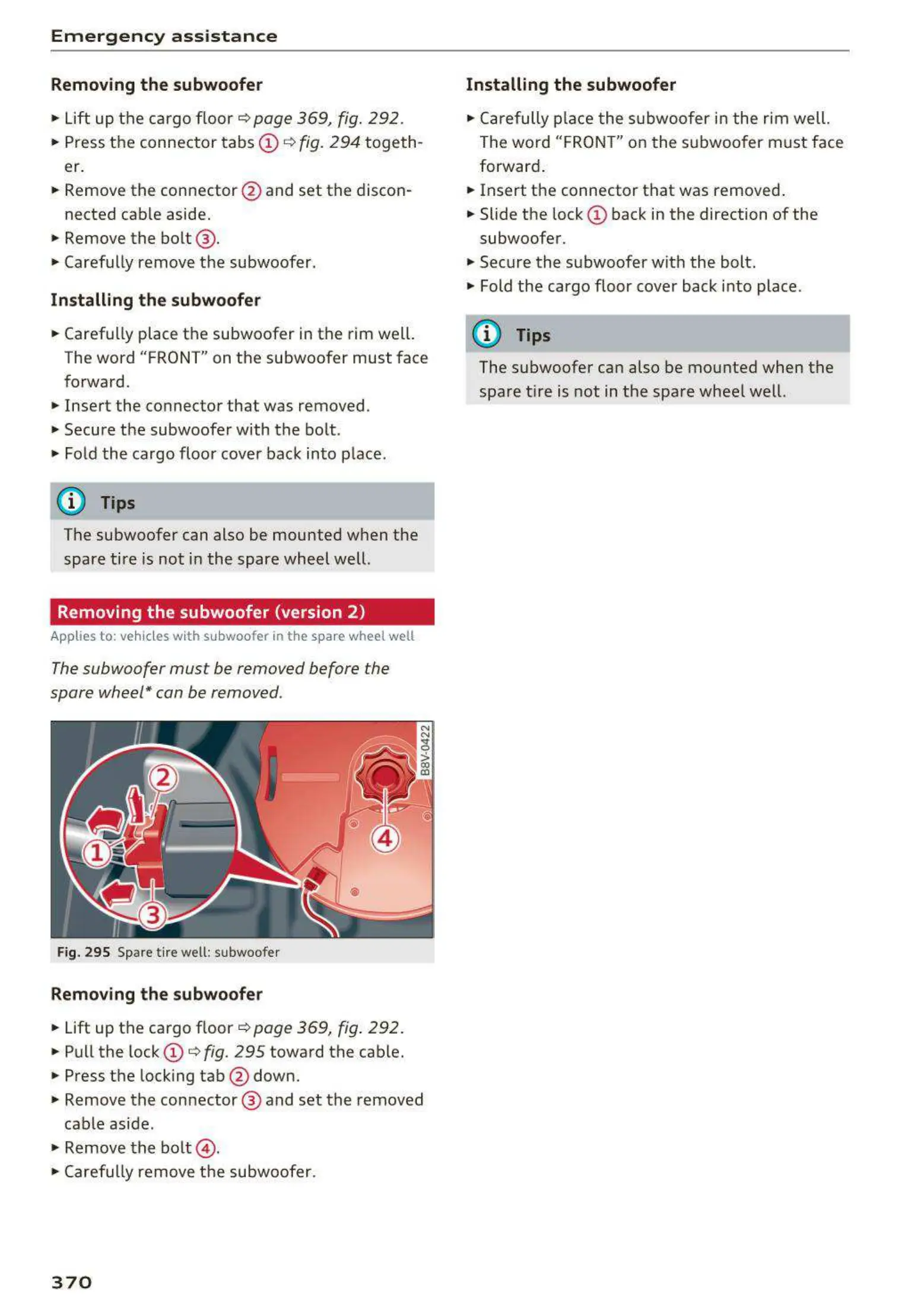

Emergency assist a nce
Removing the subwoofer
• Lift up the cargo f loor ¢ page 369, fig. 292 .
• Press the connector tabs @ ¢
fig. 29 4 togeth -
er.
• Remove the connector @ and set the discon-
nected cab le aside.
• Remove the bolt @ .
• Carefu lly remove t he subwoofer .
Installing the subwoofe r
• Carefu lly place the subwoofer in the rim we ll.
The word "FRONT" on the subwoofer must face
forward.
• Inse rt the connector that was removed .
• Secure t he subwoofer with the bolt .
• Fold the cargo floo r cover bac k into place.
(D Tips
The subwoofer can also be mounted when t he
spare tire is not in the spare wheel well.
Removing the subwoofer (version 2)
Applies to: vehicles with subwoofer in the spare wheel well
The subwoofer must be removed before the
spare wheel* can be removed .
Fig. 295 Spare t ire well : subwoofer
Removing the subwoofer
• Lift up the cargo floor ¢ page 369 , fig . 292 .
• Pull the lock
(D ¢ fig. 295 toward the cab le.
• Press t he locking tab @ down.
• Remove t he connector @ and set the removed
cable aside .
• Remove t he bolt @ .
• Caref ully remove t he subwoofer.
370
Installing the subwoofer
• Carefully place t he subwoofer in the rim well.
The word "FRONT" on the subwoofer must face
forward .
• Insert the connecto r that was removed .
• Slide the lock
(D back in the direction of the
subwoofe r.
• Secure the subwoo fer wit h the bolt.
• Fold the cargo floor cover back into place .
(D Tips
The subwoofer can also be mounted when the
spare t ire is not in the spa re whee l wel l.
