Fuses and bulbs
Fuse assignment - interior
ij
::,
CX)
ID

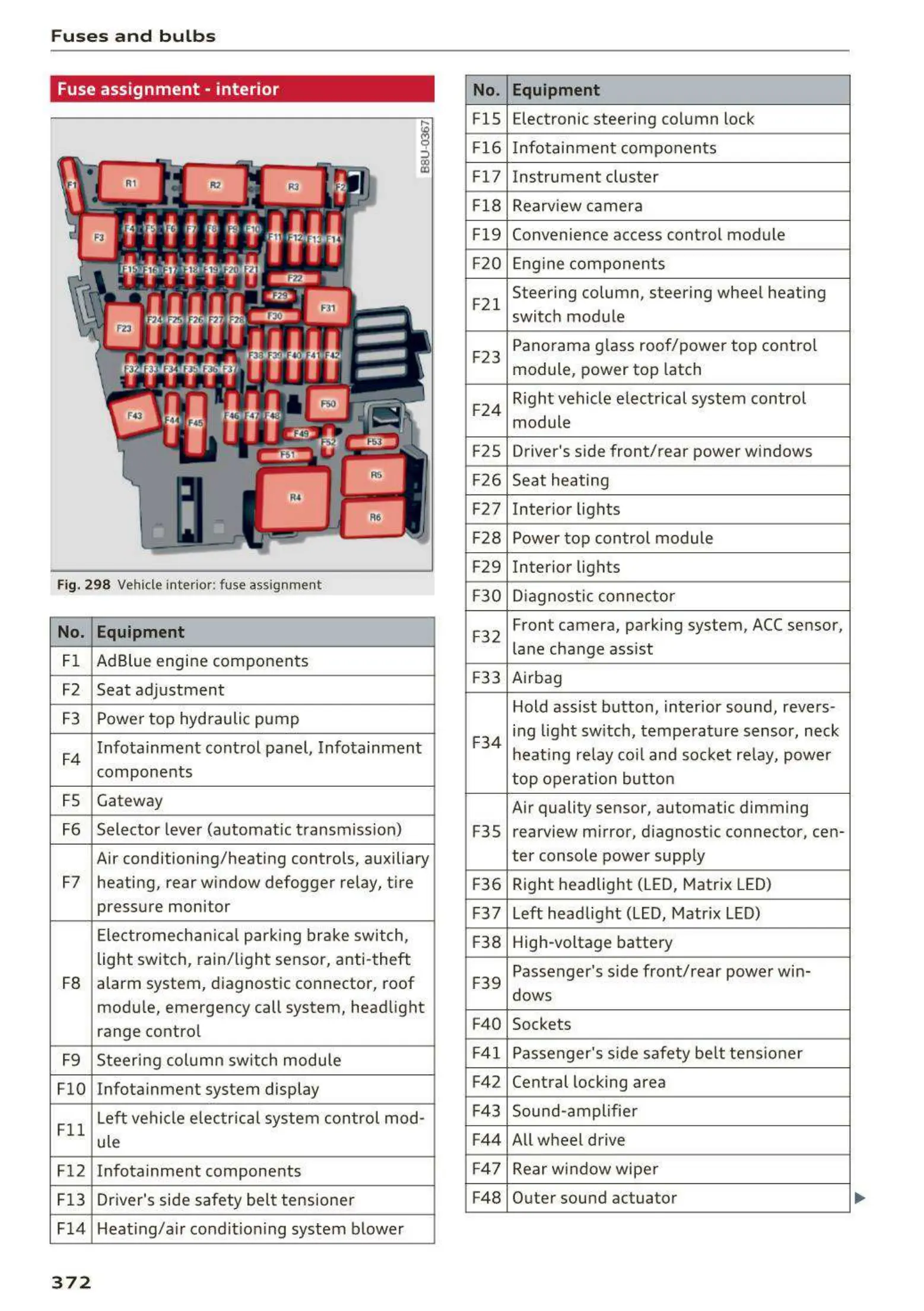

Fig. 298 Vehicle interior: fuse assignment
No. Equipment
Fl Ad Blue engine components
F2 Seat adjustment
F3
Power top hydraulic pump
F4
Infotainment control panel, Infotainment
components
FS
Gateway
F6 Selector lever (automat ic transm iss ion)
Air conditioning/heating controls, auxiliary
F7 heating, rear window defogger relay, tire
pressure monitor
Electromechan ical park ing brake switch,
light switch, rain/light sensor, anti-theft
F8
alarm system, diagnostic connector, roof
module, emergency call system, head light
range control
F9 Steering col umn sw itch module
FlO Infotainment system display
Fll
Left vehicle electrica l system control mod-
ule
F12 Infotainment components
F13
Driver's side safety belt tensioner
F14 Heat ing/a ir condit ion ing system blower
372
No. Equipment
FlS
Electronic steering column lock
F16 Infotainment components
Fl7 Instrument cluster
Fl8 Rearview camera
Fl9
Convenience access control module
F20 Engine components
F21
Steering column, steering wheel heating
switch module
F23
Panorama glass roof/power top control
module, power top latch
F24
Right vehicle electrical system control
module
F2S
Driver's side front/rear power windows
F26 Seat heating
F27
Interior lights
F28 Power top control module
F29 Interior lights
F30 Diagnostic connector
F32
Front camera, parking system, ACC sensor,
lane change assist
F33 Airbag
Hold assist button, interior sound, revers-
F34
ing light sw itch, temperature sensor, neck
heating rel ay coil and socket re lay, power
top operation button
Air quality sensor, automatic dimming
F3S
rearview mirror, d iagnostic connector, cen-
ter console power supply
F36
Right headlight (LED, Matrix LED)
F37 Left headlight (LED, Matrix LED)
F38 High-voltage battery
F39
Passenger 's s ide front/rear power win-
dows
F40
Sockets
F41 Passenger's s ide safe ty be lt tens ioner
F42
Central locking area
F43 Sound-amplifier
F44 All wheel drive
F47 Rear window wiper
F48 Outer sound actuator
