Cylinder Head – Tightening Torques
Component Nm
Engine lifting eye bolt 25
Sealing plugs 5
Heat shield bracket bolts 9
Heat shield bolts 20
Mounting plate to connecting piece bolts 9
Valve housing to cylinder head cover bolt 4
Camshaft adjustment valve 1 N205 to housing bolt 4
Cable bracket to housing bolt 10
Housing to cylinder block bolt 10
Transport strap to cylinder block bolt 25
Stud bolt for intake manifold 10
Camshaft Position (CMP) sensor G40 to cylinder block
bolt
10
Stud bolt for tensioning roller 10
Stud bolt for exhaust manifold 20

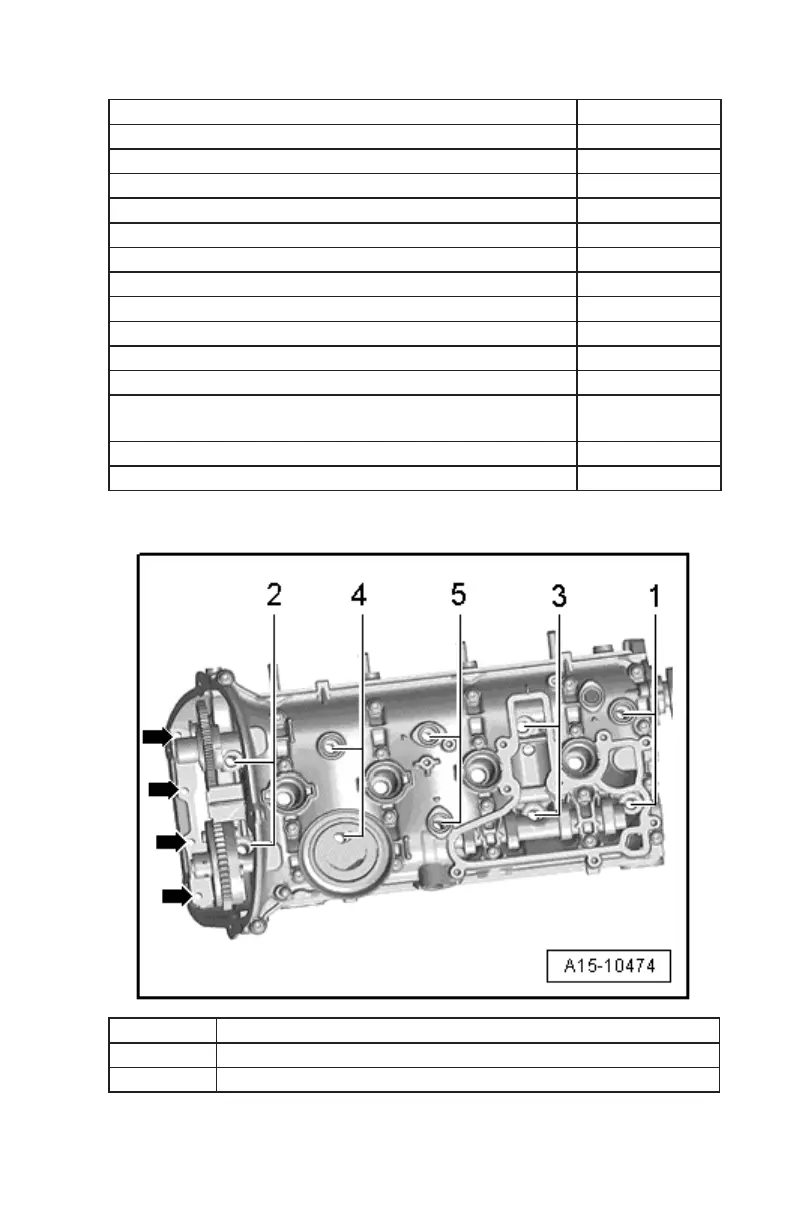

Cylinder Head – Loosening Sequence
Step Component
1 Remove bolts
2 Loosen bolts 1 – 5 in sequence
➡
