Rear Suspension – All Wheel Drive
Rear Axle – Curb Weight Data

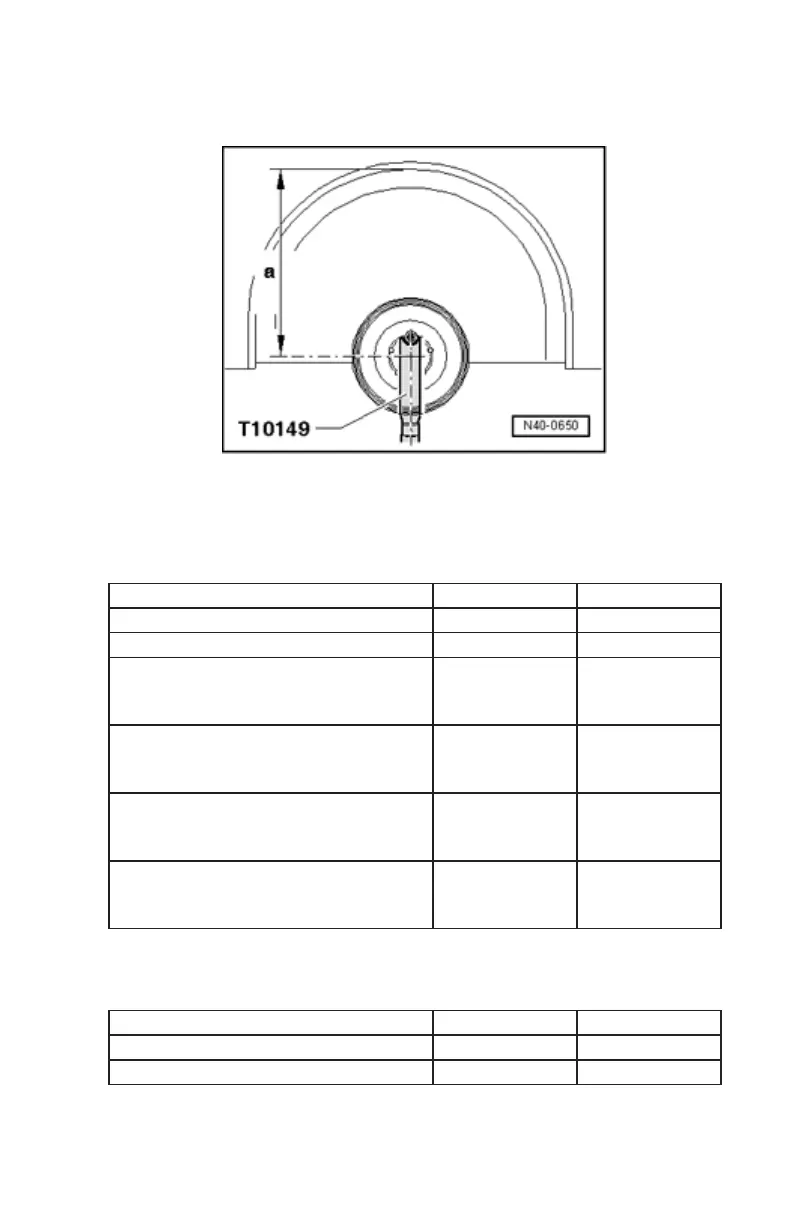

Only perform the tightening of respective bolts/nuts when dimension
a between wheel hub center and lower edge of wheel housing
is reached.
Subframe – Tightening Torques
Threaded connection Thread Nm
To lower transverse link M12 x 1.5 95
To upper transverse link M12 x 1.5 95
To body M12 x 1.5 x 125 90 plus an
additional 90°
(¼ turn)
To tie rod M12 x 1.5 x 100 90 plus an
additional 90°
(¼ turn)
To front crossmember M10 x 115 50 plus an
additional 180°
(½ turn)
To nal drive and M12 x 1.5 x 85 60 plus an
additional 90°
(¼ turn)
Left Rear Level Control System Sensor G76 –
Tightening Torques
Threaded connection Thread Nm
To subframe M5 x 20 5
To lower transverse link M5 x 20 5
