Rear Suspension – Front Wheel Drive
Rear Axle – Curb Weight Data

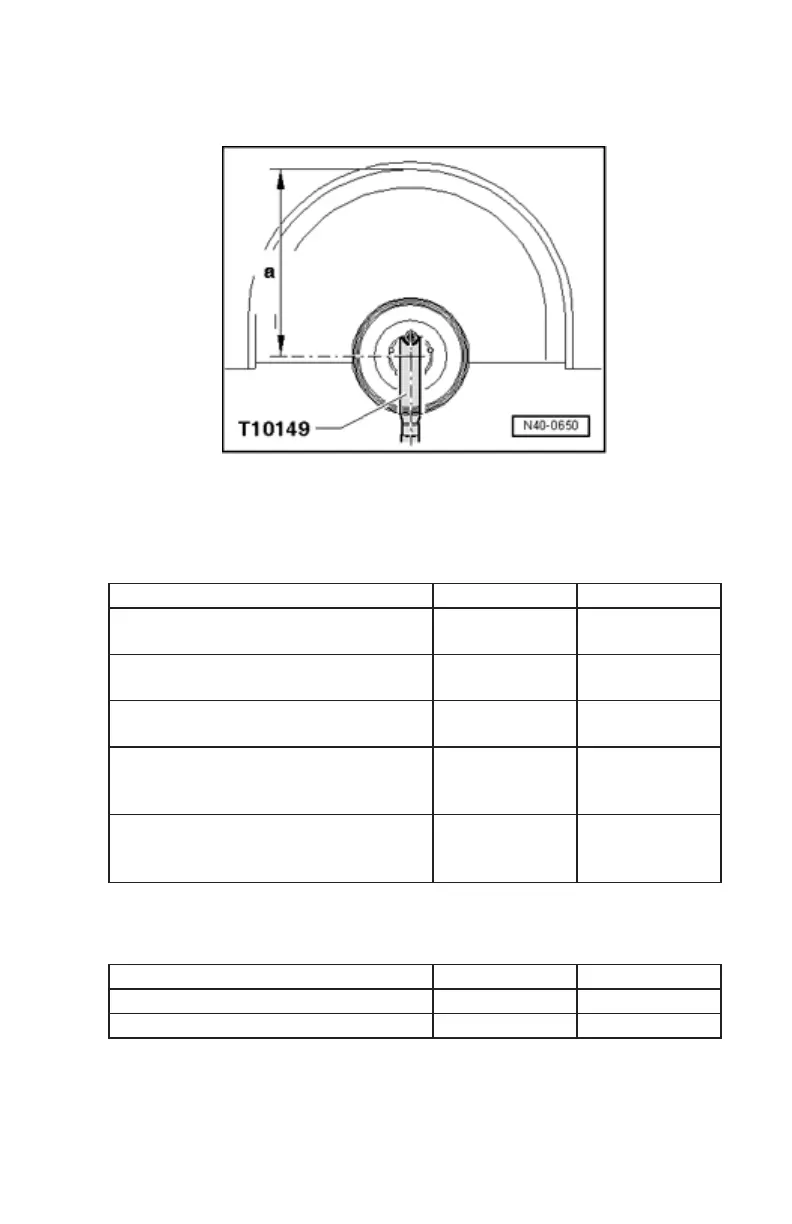

Only perform the tightening of respective bolts/nuts when dimension
a between wheel hub center and lower edge of wheel housing
is reached.
Subframe – Tightening Torques
Threaded connection Thread Nm
Eccentric bolt and nut to lower
transverse link
M12 x 1.5 95
Eccentric bolt and nut to upper
transverse link
M12 x 1.5 95
Stone impact protection on transverse
link
M6 x 12 8
Subframe to body bolts M12 x 1.5 x 90 90 plus an
additional 90°
(¼ turn)
To tie rod M12 x 1.5 x 90 90 plus an
additional 90°
(¼ turn)
Left Rear Level Control System Sensor G76 –
Tightening Torques
Threaded connection Thread Nm
To subframe M5 x 20 5
To lower transverse link M5 x 20 5
