Audi TT Platform 2009 - Manual Transmission - Installing - 02 Q; 02 Q Selector Mechanism - Tightening Torques; Transmission to Engine - Tightening Torques; 02 Q Transmission - Tightening Torques

Manual
Transmission
Audi TT Quick Reference Specication Book • May 2009 61
Manual Transmission – Installing – 02Q
02Q Selector Mechanism – Tightening Torques
Component Nm
Selector housing to body M8 25
Selector housing to body M6 8

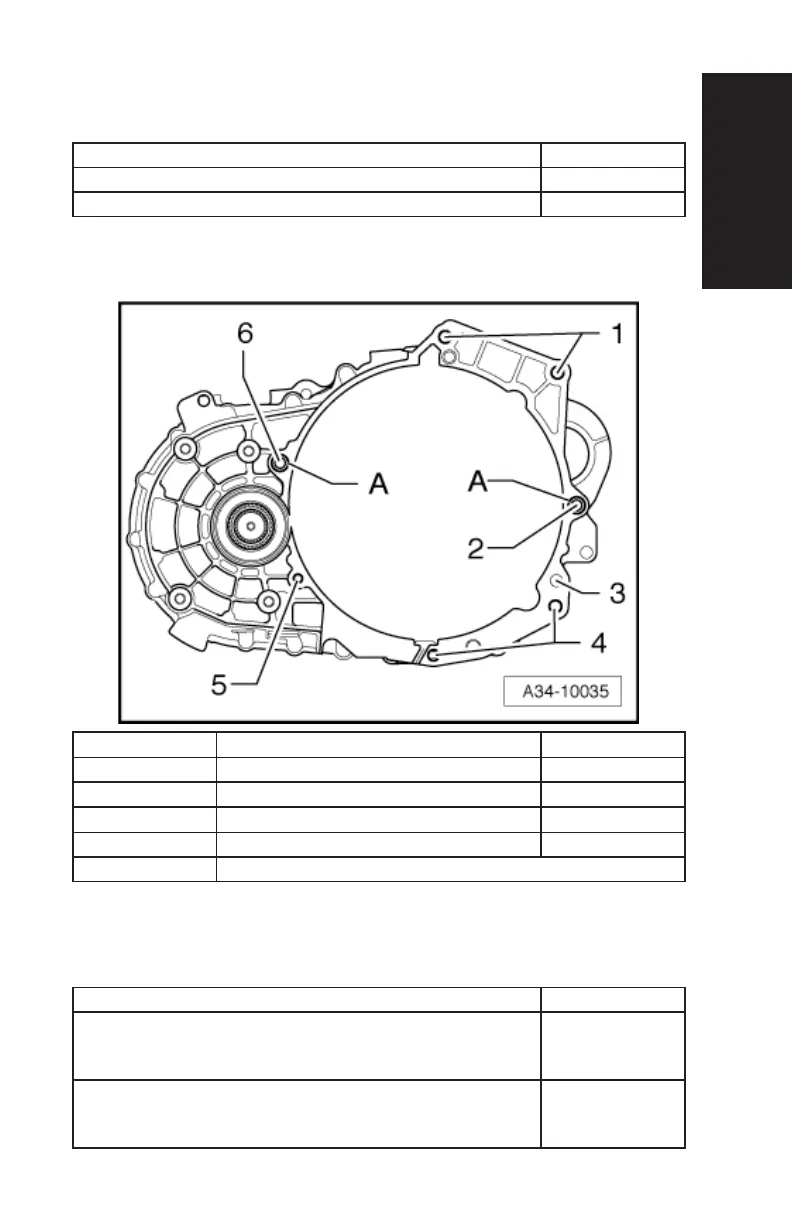

02Q Transmission To Engine –
Tightening Torques
Item Bolt Nm
1
1)
, 3 M12 x 55 80
2
2)
M12 x 65 80
4, 5
2)
M10 x 50 40
6
2)
M12 x 80 80
A Alignment sleeves for centering
1)
Bolt with threaded pin M8.
2)
Install in transmission from engine side.
02Q Transmission – Tightening Torques
Location/Fastener Nm
Transmission plate to transmission 60 plus an
additional 90°
(¼ turn)
Transmission to left assembly mounting 60 plus an
additional 90°
(¼ turn)
