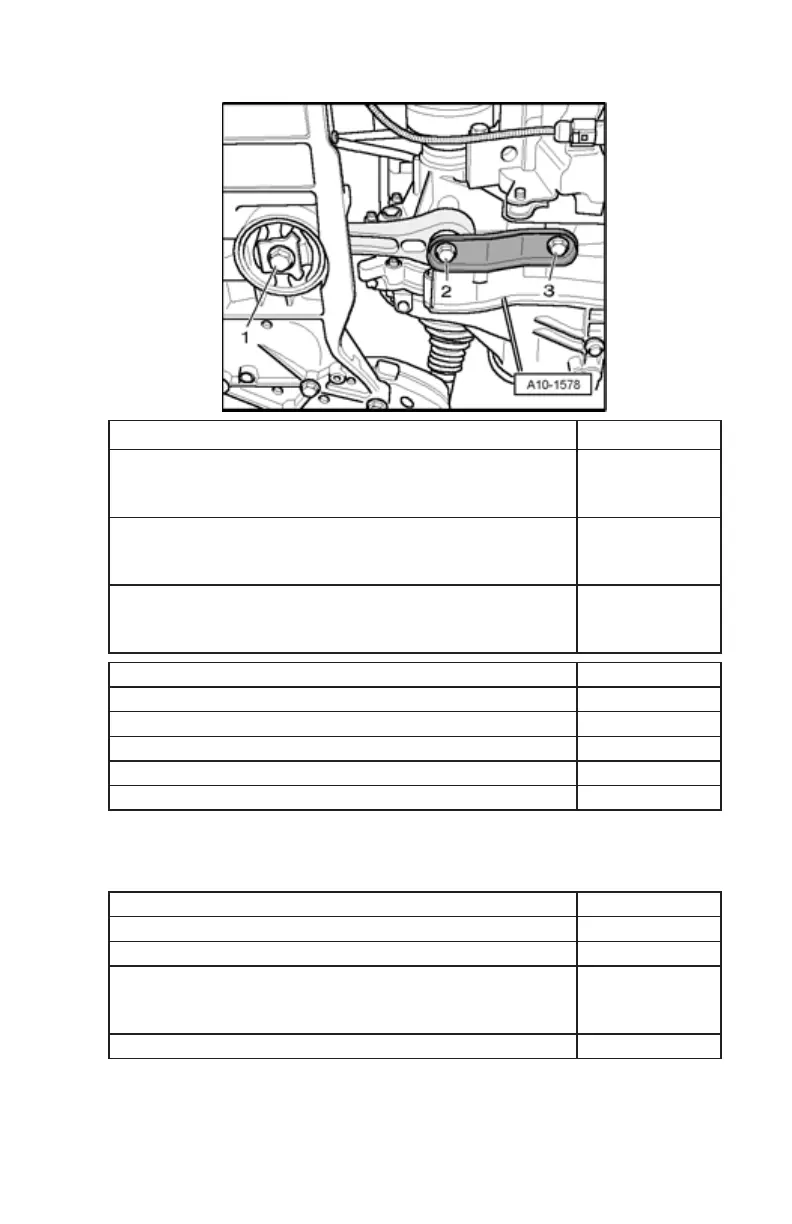

O2Q Transmission Pendulum Support
Item Nm
Bolt - 1 100 plus an
additional 90°
(¼ turn)
Bolt - 2 40 plus an
additional 90°
(¼ turn)
Bolt - 3 40 plus an
additional 90°
(¼ turn)
Component Nm
Small cover plate for ywheel 10
Right drive axle heat shield to cylinder block 25
Cable mounting bracket to transmission 20
Ground (GND) wire to upper starter bolt 23
Bracket for electrical wiring to lower starter bolt 23
02Q Transmission Housing and Shift
Mechanism – Tightening Torques
Component Nm
Back up light switch F4 20
Selector shaft locking bolt 30
Clutch housing bolts (always replace) 15 plus an
additional 90°
(¼ turn)
Selector mechanism bolts (always replace) 20
