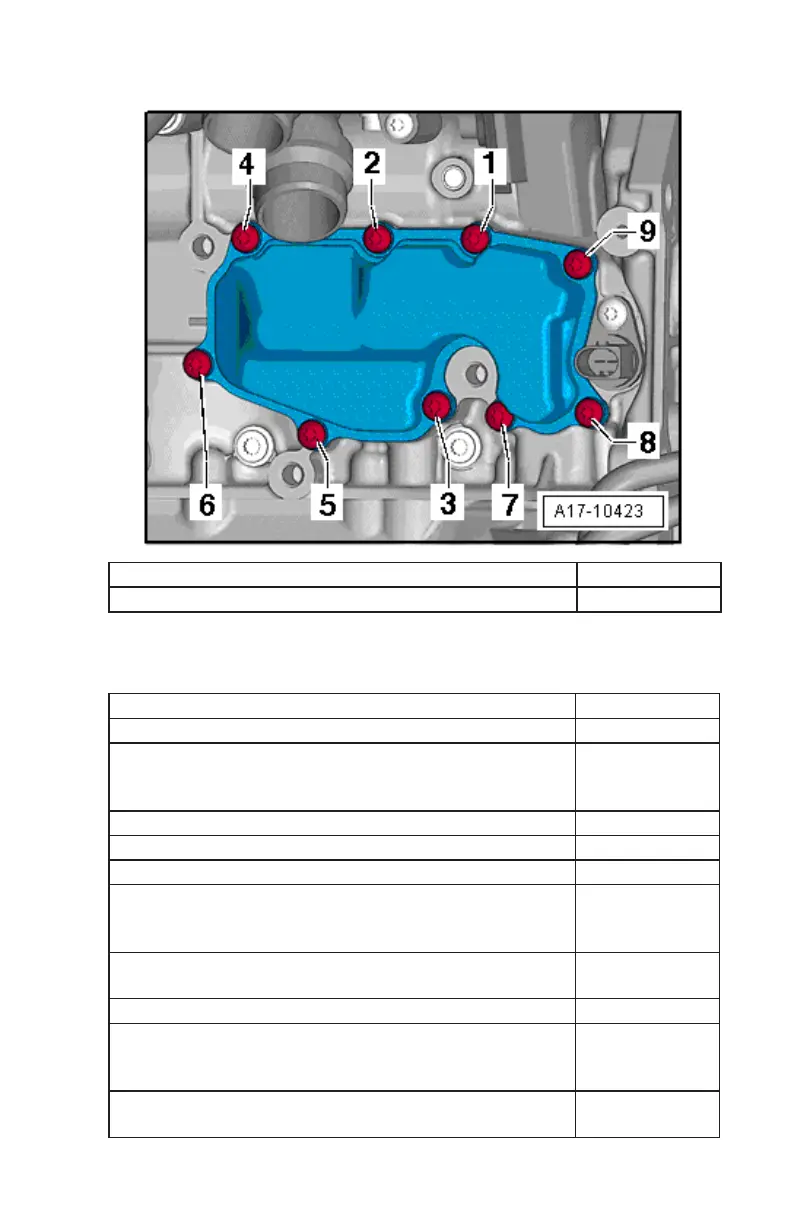

Oil Separator – Tightening Torques
Component Nm
Tighten bolts 1 - 9 in sequence 9
Lubrication System Components –
Tightening Torques
Component Nm
Sealing ange to engine bolt 15
Oil pump with balance shaft drive to cylinder block bolt 15 plus an
additional 90°
(¼ turn)
Oil pan bolt 15
Oil drain plug to oil pan bolt 15
Oil level thermal sensor G266 protective cap bolt 10
Chain sprocket to oil pump with balance shaft drive bolt 20 plus an
additional 90°
(¼ turn)
Oil pump with balance shaft drive cover to oil pump with
balance shaft drive bolt
9
Oil pump with balance shaft drive cover bolt 40
Chain sprocket to oil pump cover to inner rotor to outer
rotor to oil pump with balance shaft drive bolt
20 plus an
additional 90°
(¼ turn)
Chain tensioner with tensioning rail to oil pump with
balance shaft drive bolt
15
