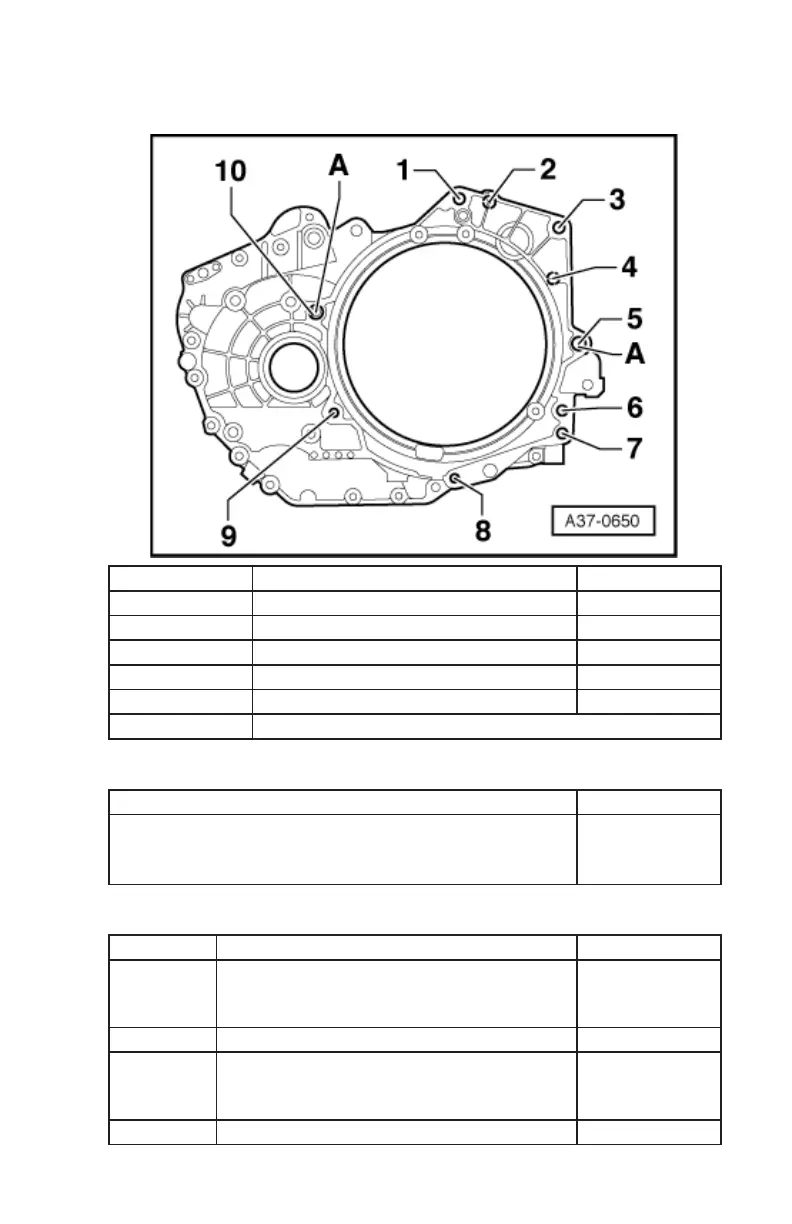

02E Transmission To 3.2L MPI Engine –
Tightening Torques
Item Bolt Nm
1, 3, 6 M12 x 55 80
2, 4 M10 x 45 (Starter Mount) 40
5, 10 M12 x 65 80
7, 8 M10 x 50 40
9 M10 x 45 40
A Alignment sleeves for centering
02E Oil Cooler – Tightening Torques
Component Nm
Oil cooler bolts (replace bolts) 20 plus an
additional 45°
(
1
⁄
8
turn)
02E Oil Pump – Tightening Torques
Step Component Nm
1 Oil pump bolts (all four) 5 plus an
additional 90°
(¼ turn)
2 Oil pump countersunk bolt 8
3 Oil pump (remaining 3 bolts) 8 plus an
additional 90°
(¼ turn)
4 Oil pump cover (tighten diagonally) 8
