Audio Technica AT-LP1240-USB User Manual

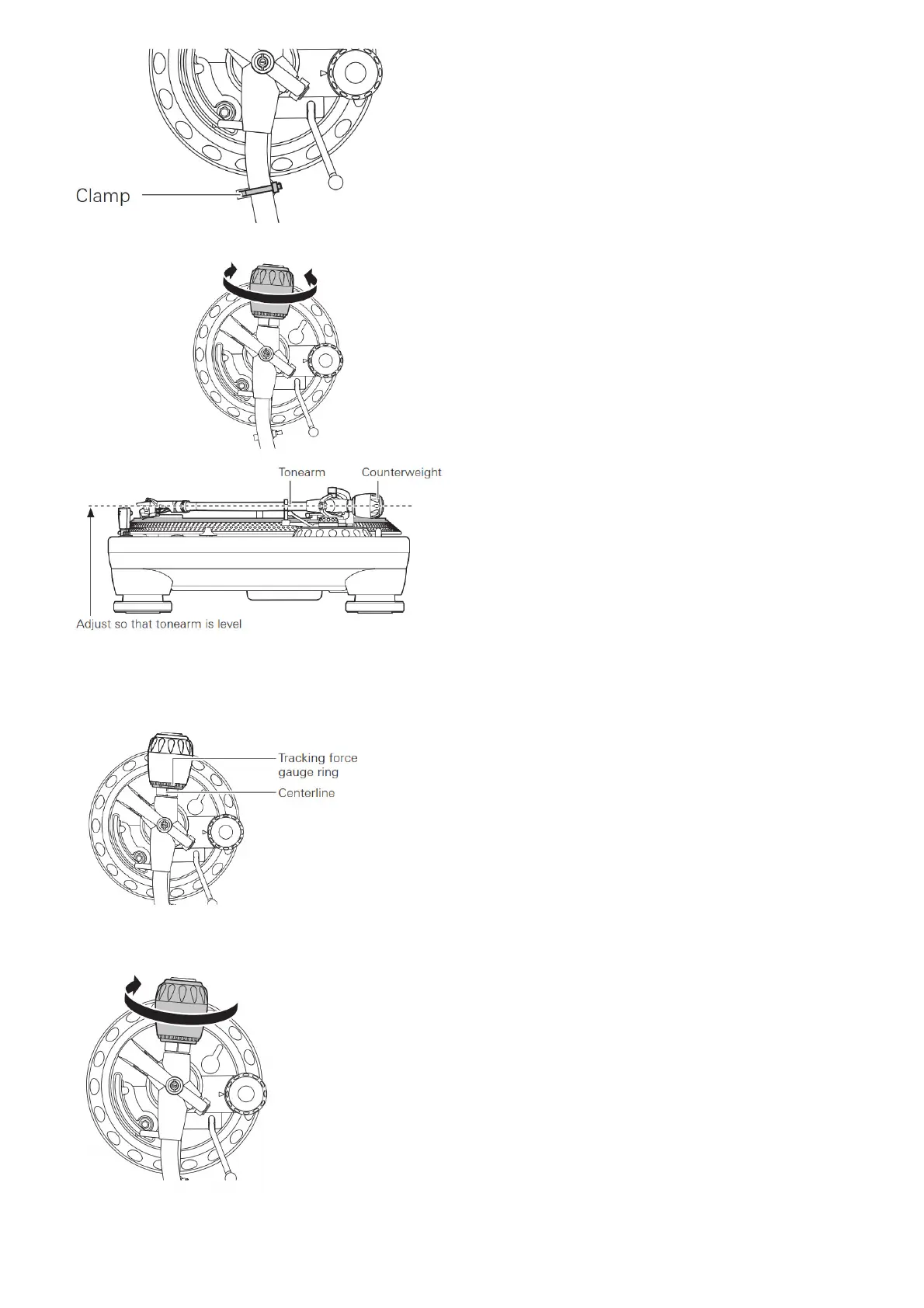

3. While still lightly holding the headshell, turn the counterweight to adjust the tonearm’s balance.
• Adjust the balance so that the tonearm is level when you release the headshell.
4. Return the tonearm to the tonearm rest and latch the clamp.
Setting tracking force
1. While supporting the counterweight so that it does not move, turn the tracking force gauge ring so that its “0” position lines up with the centerline on the back of the tonearm.
• The tracking force is not adjusted simply by turning the tracking force gauge ring.
2. Turn the counterweight and the tracking force gauge ring together counterclockwise (to the left) until the centerline value matches the recommended tracking force value for the
cartridge you are using.
• Refer to the cartridge maker’s specifications for the recommended tracking force value.
• The standard tracking force value for the cartridge provided with this product is 3.0 g.
Setting the anti-skate adjustment
While the record is playing, a force acts on the stylus tip to pull it inward. This force can be counteracted by setting the same values for the anti-skate and the tracking force. Adjust the anti-

Audio Technica AT-LP1240-USB Specifications

General

Type	Direct drive audio turntable
Interface	USB & Analog
Operation	Manual
Product color	Black
Wow & flutter	0.1 %
Nominal speeds	33 1/3, 45, 78 RPM
Turntable size	332 mm
Platter material	Metal
Signal-to-Noise Ratio (SNR)	55 dB
USB port	Yes
USB ports quantity	0
Power supply type	AC
AC adapter frequency	60 Hz
AC adapter input voltage	120 V
Power consumption (typical)	13 W
Compatible operating systems	Windows XP +\\r Mac OS X +
Cables included	AC, Audio (3.5mm), RCA, USB

Weight and Dimensions

Depth	353 mm
Width	450 mm
Height	166.5 mm
Weight	12500 g
