Audio Technica ATW-R3210 User Manual

24

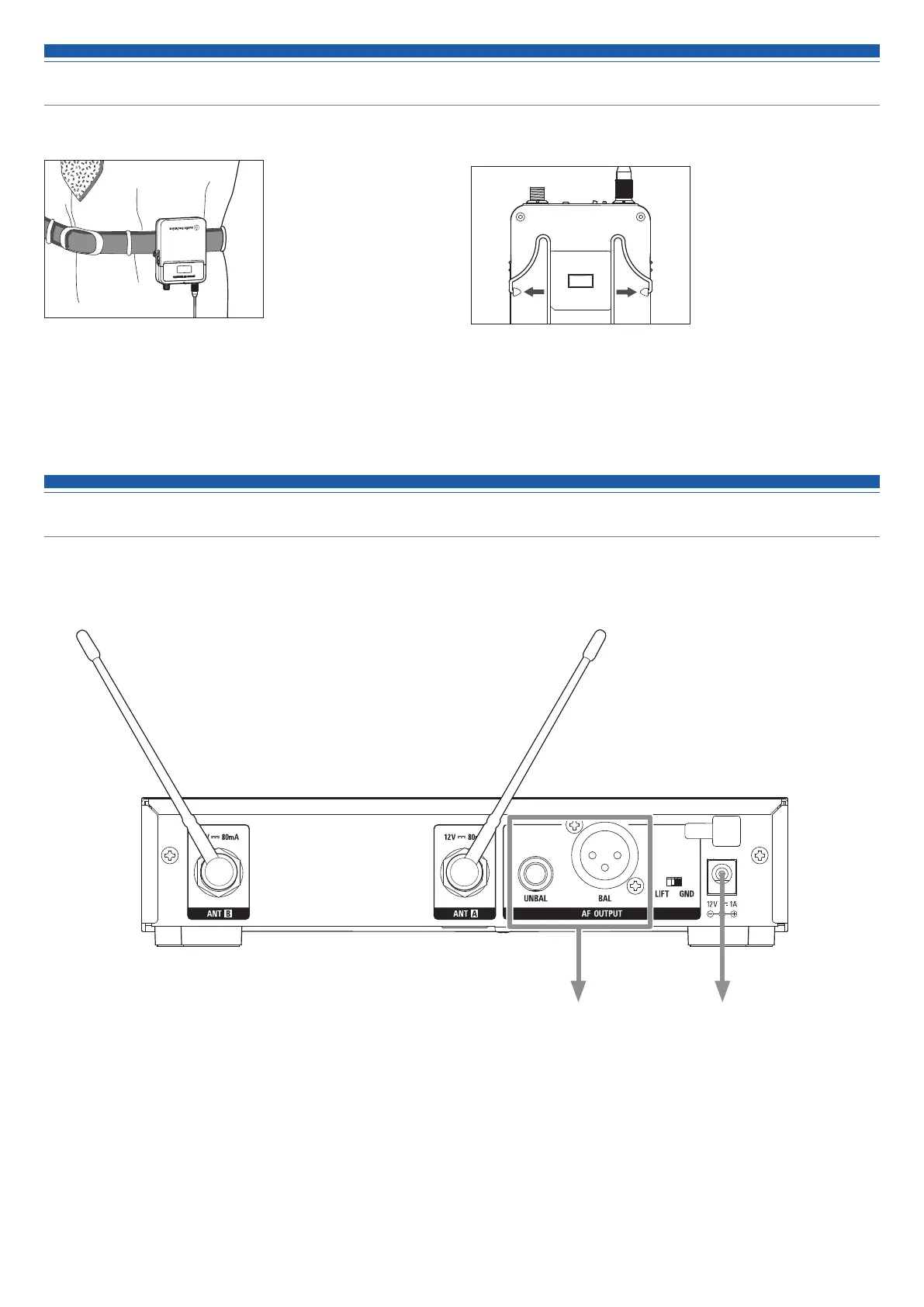

How to attach the transmitter (ATW-T3201)
The ATW-T3201 transmitter is equipped with a clip that can be used to attach the transmitter to a belt, etc.
You can reverse the direction of the input connector by
attaching the clip in the opposite direction.
Pull both sides of the clip firmly to the outside to remove
the clip from the product.
Making connections (basic connections)
This is an example of connections made when using one receiver.
When connecting more than one receiver via a distributor (sold separately), refer to the distributor's user manual.
Whip antenna Whip antenna
AC adapterMixer input

Audio Technica ATW-R3210 Specifications

General

Quantity	1
Antenna type	Removable
Ethernet LAN	No
Mounting type	Rack mount
Product color	Black
Built-in display	Yes
Antennas quantity	2
Antenna connector type	BNC
Operating frequency type	Ultra High Frequency (UHF)
Operating temperature (T-T)	-5 - 45 °C
Total Harmonic Distortion (THD)	1 %
Input voltage	100 - 240 V
Power supply type	AC

Weight and Dimensions

Depth	191 mm
Width	210 mm
Height	43.4 mm
Weight	1100 g
