Audio Technica ATW-R3210 User Manual

14
Settings

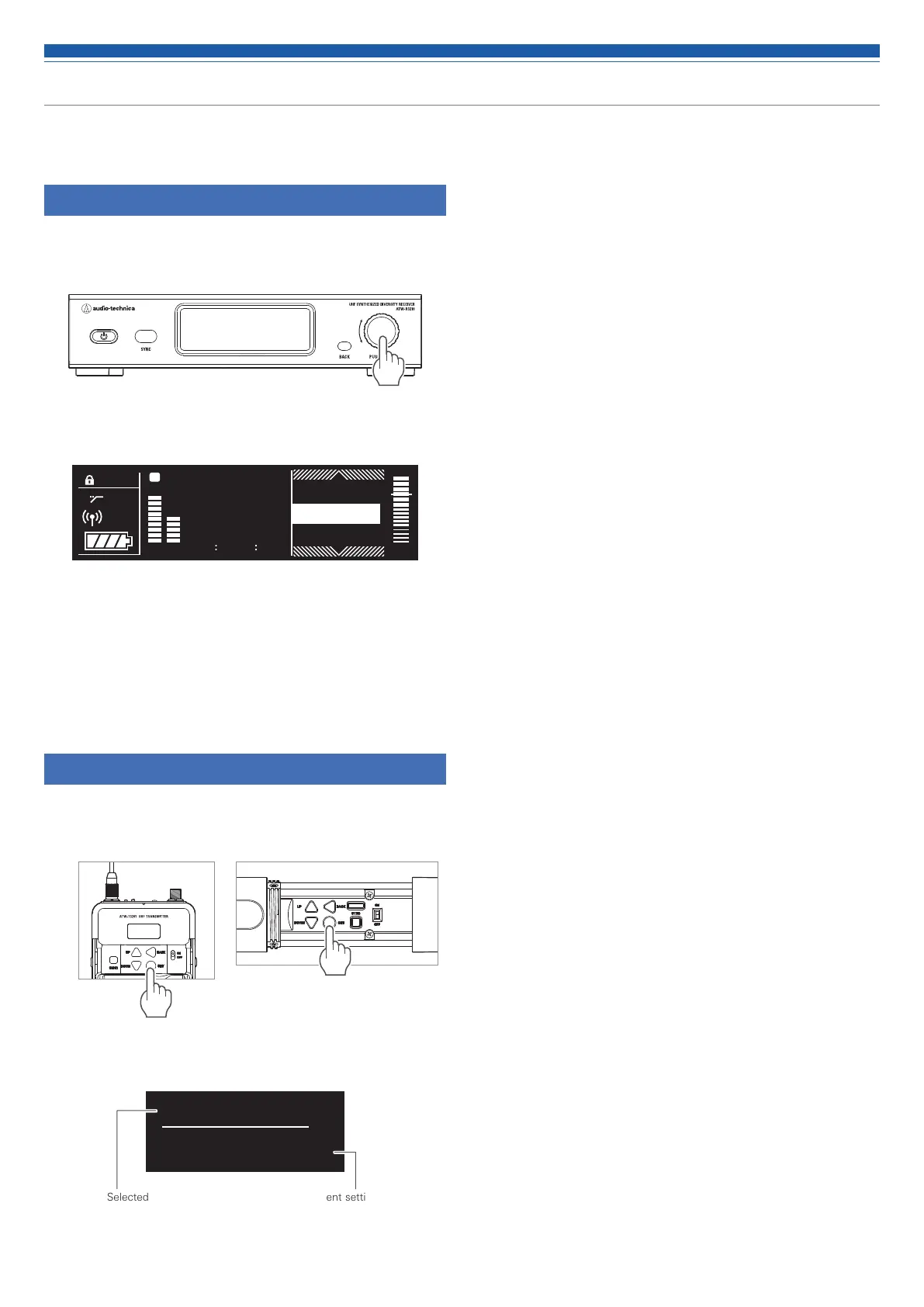

Various settings can be made from the menu screen shown on the
display.
ATW-R3210
1. Press the control dial.
• The main menu screen appears.
2. Turn the control dial to select the item you wish to set.
3. Press the control dial to open the settings menu of the selected
item.
• Press the BACK button to go back one screen.
• To cancel partway through making a setting, press the BACK button.
• While on the settings screen, the display will return to the main screen if
approximately 60 seconds pass without a button or the control dial being
used.
ATW-T3201/ATW-T3202
1. Press the SET button.
• The menu screen appears.
ATW-T3201 ATW-T3202
2. Press the UP/DOWN button to select the item you wish to set.
.000 MHz 000
FREQUENCY
Selected
menu item
Current setting value
3. Press the SET button to display the settings screen for the
selected item.
• Press the BACK button to go back one screen.
• To cancel partway through making a setting, press the BACK button.
• While on the settings screen, the display will return to the main screen if
approximately 30 seconds pass without a button being used.
TX
HPF
B
RF AF
BU
0
000.000
VOCAL1
MHz
A
30mW
G 06 C 12
NAME
UTILITIES
FREQUENCY

Audio Technica ATW-R3210 Specifications

General

Quantity	1
Antenna type	Removable
Ethernet LAN	No
Mounting type	Rack mount
Product color	Black
Built-in display	Yes
Antennas quantity	2
Antenna connector type	BNC
Operating frequency type	Ultra High Frequency (UHF)
Operating temperature (T-T)	-5 - 45 °C
Total Harmonic Distortion (THD)	1 %
Input voltage	100 - 240 V
Power supply type	AC

Weight and Dimensions

Depth	191 mm
Width	210 mm
Height	43.4 mm
Weight	1100 g
