Audio Technica ATW-R3210 User Manual

4
Part names and functions

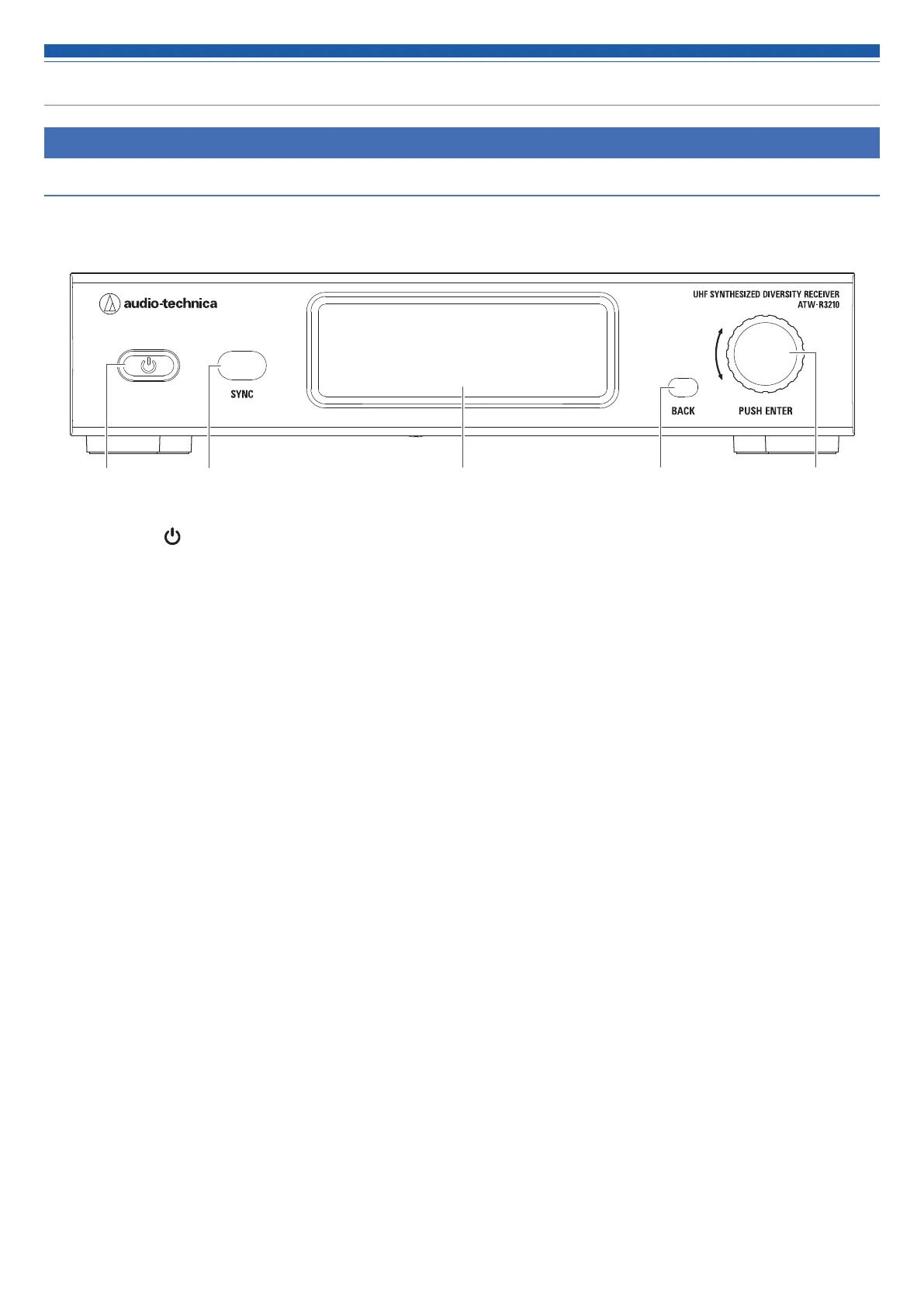

ATW-R3210
Front panel
❶ Power button ( )
Use to turn the receiver on or off.
❷ IR sync window
Use to IR SYNC with the transmitter (ATW-T3201, ATW-T3202).
❸ Display
Displays the receiver state and setting menus.
❹ BACK button
Press to take the display back one screen.
Returns to the Main screen when pressed and held.
❺ Control dial
Switches the screen when you turn the dial.
Displays the setting menu when you press the dial. Turn the dial to select a setting and press to confirm.
When you press and hold the dial, QUICK SYNC is started.
❷❶ ❹ ❺❸

Audio Technica ATW-R3210 Specifications

General

Quantity	1
Antenna type	Removable
Ethernet LAN	No
Mounting type	Rack mount
Product color	Black
Built-in display	Yes
Antennas quantity	2
Antenna connector type	BNC
Operating frequency type	Ultra High Frequency (UHF)
Operating temperature (T-T)	-5 - 45 °C
Total Harmonic Distortion (THD)	1 %
Input voltage	100 - 240 V
Power supply type	AC

Weight and Dimensions

Depth	191 mm
Width	210 mm
Height	43.4 mm
Weight	1100 g
