Part names and functions

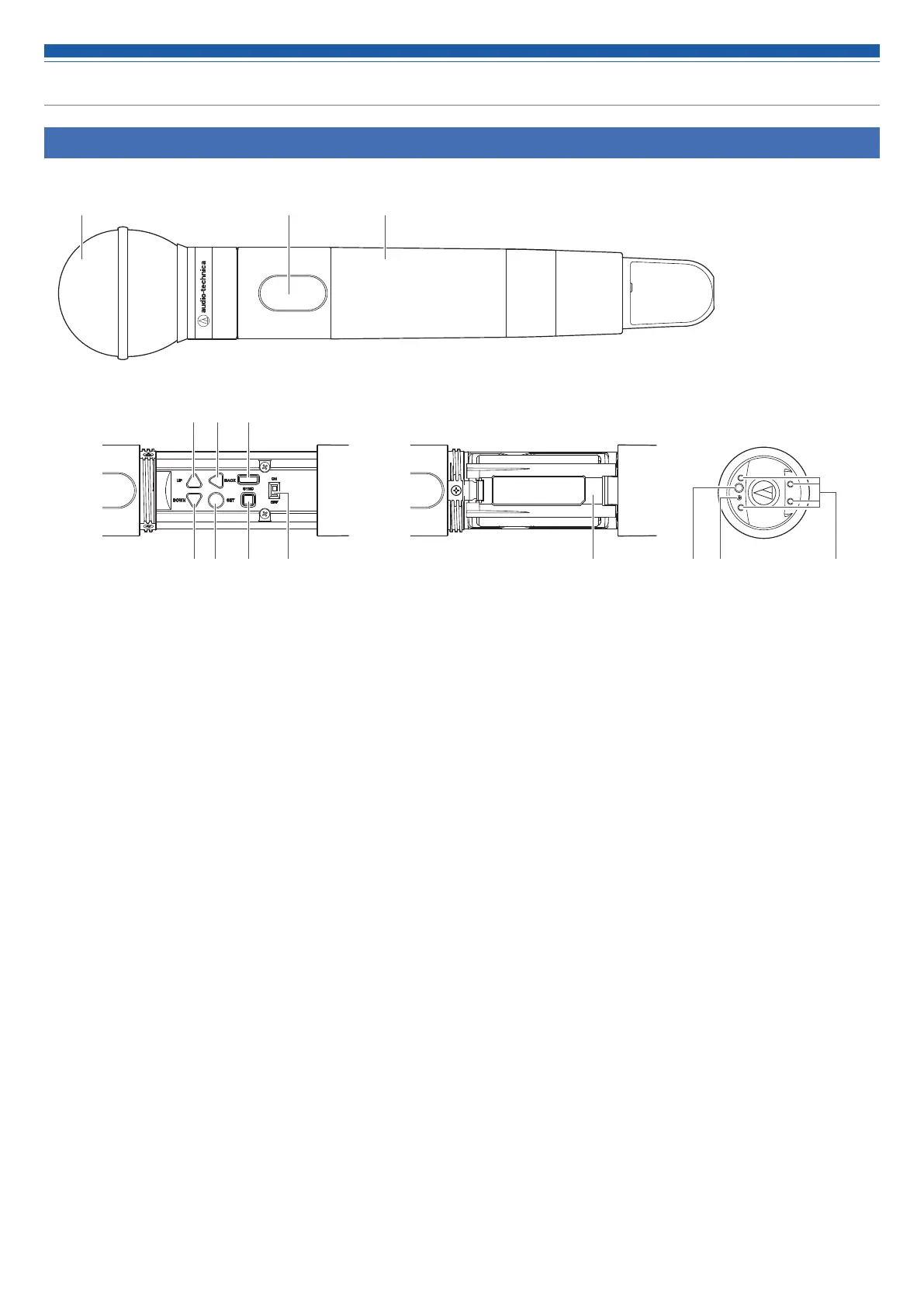

ATW-T3202
❶ Interchangeable microphone capsule
❷ Display
Shows the current status.
If no buttons are pressed for a period of 30 seconds, the display
will turn off.
❸ Grip case
❹ UP button
Use to select various settings.
❺ BACK button
Press to return to the previous screen.
Returns to the Main screen when pressed and held.
❻ IR sync window
Use to IR SYNC with the receiver (ATW-R3210).
❼ DOWN button
Use to select various settings.
❽ SET button
Press to confirm a selection.
❾ SYNC button
Use to IR SYNC with the receiver (ATW-R3210).
❿ Power switch
Use to turn the power on or off.
⓫ Battery cover
⓬ Function button
Press to turn the screen back on if it shuts off. Press and hold to
perform preselected function.
⓭ Indicator
LED that shows the status of the transmitter.
When the power is turned ON: Solid green
When the transmitter is muted: Solid red
⓮ Charging terminal
❸❷❶
❹ ❺ ❻
❼ ❽ ❾ ❿ ⓬ ⓮⓭
⓫

Audio Technica ATW-R3210 Specifications

General

Quantity	1
Antenna type	Removable
Ethernet LAN	No
Mounting type	Rack mount
Product color	Black
Built-in display	Yes
Antennas quantity	2
Antenna connector type	BNC
Operating frequency type	Ultra High Frequency (UHF)
Operating temperature (T-T)	-5 - 45 °C
Total Harmonic Distortion (THD)	1 %
Input voltage	100 - 240 V
Power supply type	AC

Weight and Dimensions

Depth	191 mm
Width	210 mm
Height	43.4 mm
Weight	1100 g
