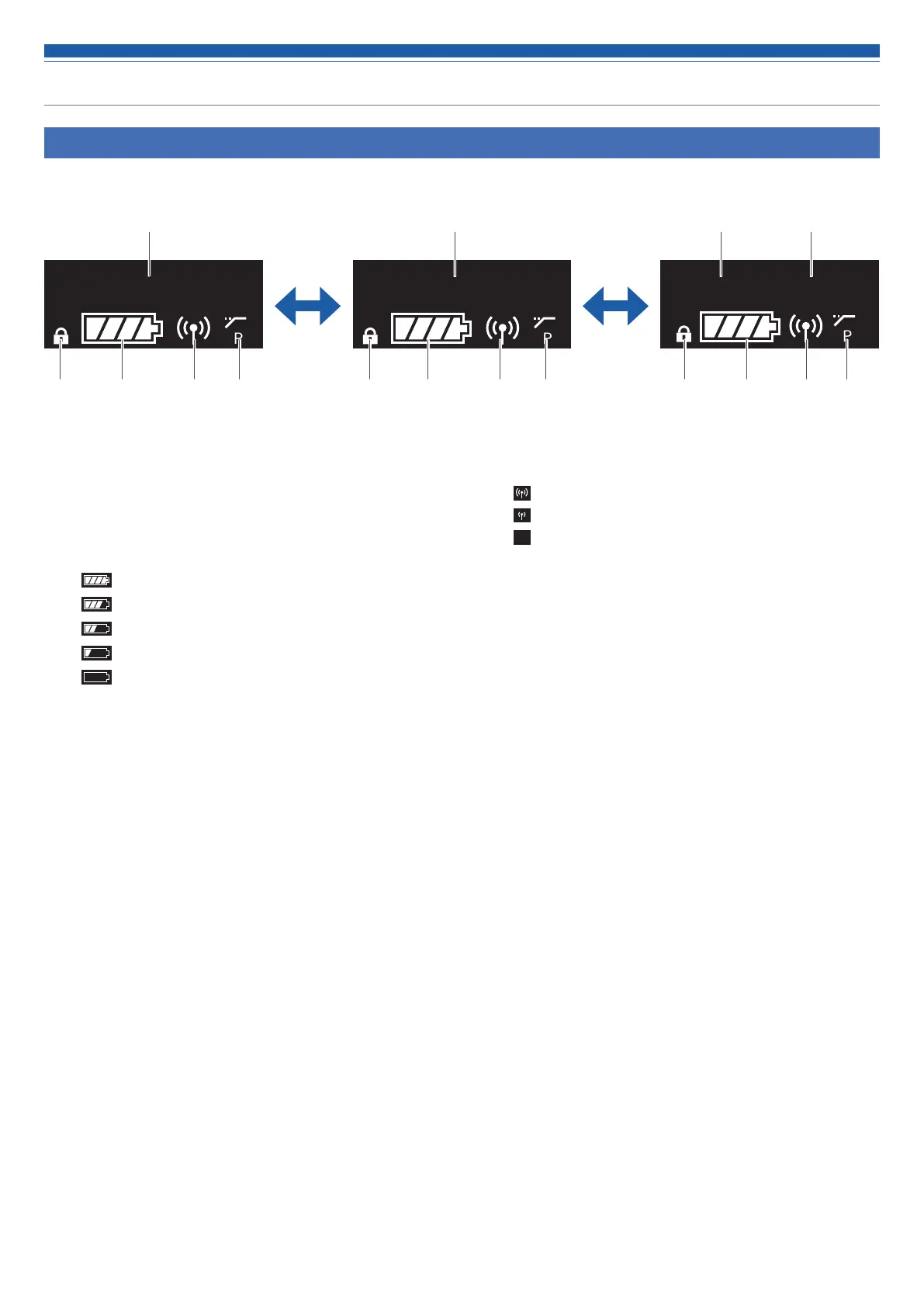

How to read the display
ATW-T3201/ATW-T3202
The main screen is displayed when the power is switched on. If you press the UP/Down button on the main screen, the screen display is switched.
HPF
000.000 MHz
VOCAL1
HPF
HPF
Gr
:
02 Ch
:
05
❶ Frequency indicator
Displays the set frequency.
❷ Lock status indicator
❸ Battery level indicator
: 75% or more battery power remaining.
: 50 to 75% battery power remaining.
: 25 to 50% battery power remaining.
: 25% or less battery power remaining.
(Flicker): Replace the batteries.
❹ RF transmission output indicator
: RF Power High (30 mW)
: RF Power Low (10 mW)
RF
OFF
: RF Power Off
❺ High-pass filter indicator
❻ Name display
Displays the specified name.
❼ Group indicator
❽ Channel indicator
❶
❷ ❷❸ ❸❸❹ ❹❹❺ ❺
❻ ❼ ❽
❷ ❺

Audio Technica ATW-R3210 Specifications

General

Quantity	1
Antenna type	Removable
Ethernet LAN	No
Mounting type	Rack mount
Product color	Black
Built-in display	Yes
Antennas quantity	2
Antenna connector type	BNC
Operating frequency type	Ultra High Frequency (UHF)
Operating temperature (T-T)	-5 - 45 °C
Total Harmonic Distortion (THD)	1 %
Input voltage	100 - 240 V
Power supply type	AC

Weight and Dimensions

Depth	191 mm
Width	210 mm
Height	43.4 mm
Weight	1100 g
