Version 5.8 19 July 2009
Installation Manual 2. Physical Description

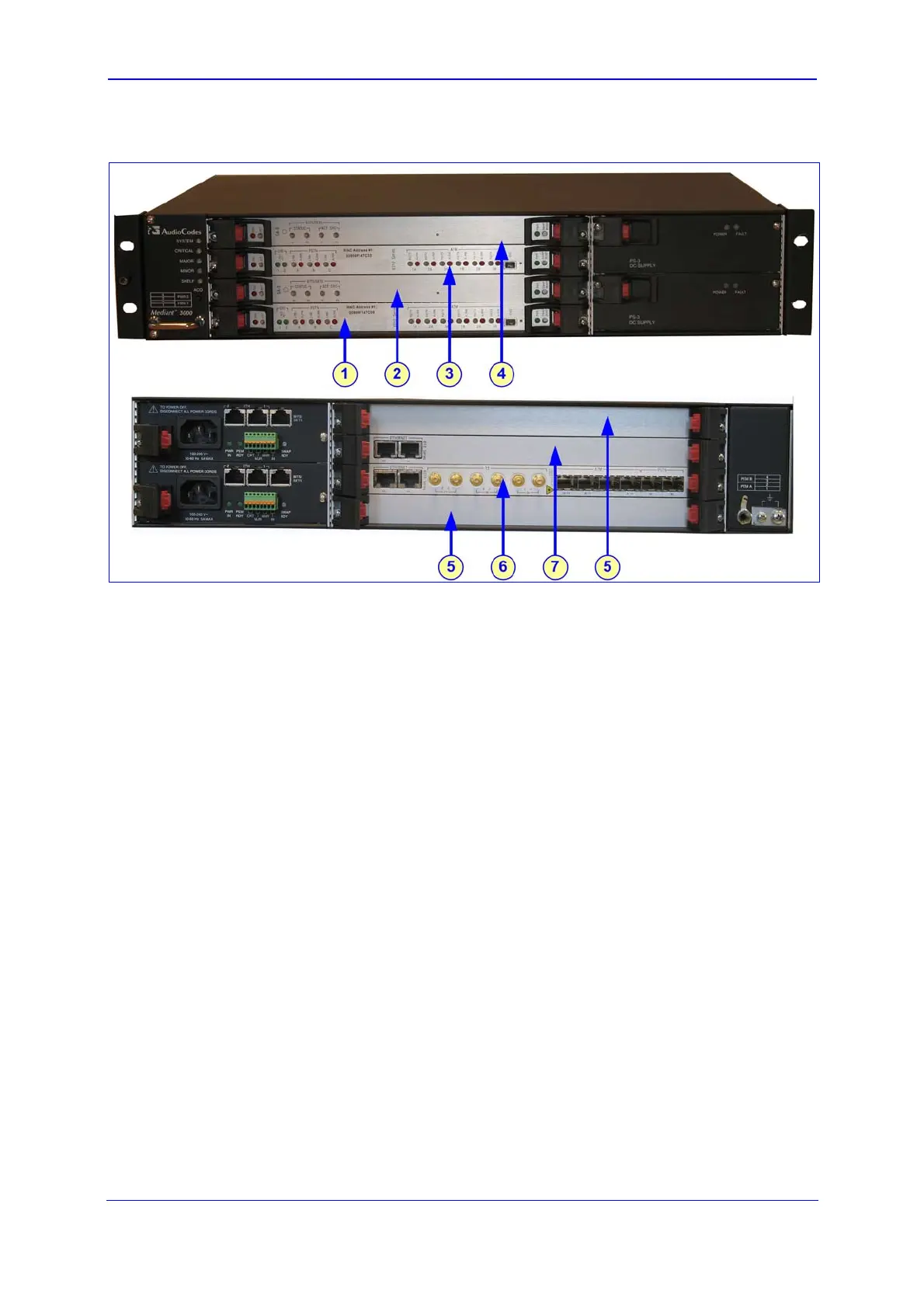

Figure 2-4: Front- and Rear-Panel Slot Assignment for Mediant 3000 HA with 6310 Blades
Legend:
1. Slot 1 front panel: 6310 blade (active blade for Mediant 3000 HA).
2. Slot 2 front panel: SA/M3K blade (active blade for Mediant 3000 HA).
3. Slot 3 front panel: Standby (redundant) 6310 blade (applicable only to Mediant
3000 HA). In Simplex mode, this slot is covered with a blank panel.
4. Slot 4 front panel: Standby (redundant) SA/M3K blade (applicable only to
Mediant 3000 HA). In a Simplex mode, this slot is covered with a blank panel.
5. Blank panels covering unoccupied slots.
6. Slot 2 rear panel: RTM-6310 providing STM-1/OC-3 or T3 interfaces, and dual
Gigabit Ethernet (GbE) interfaces.
7. Slot 3 rear panel: RTM-6310 Redundant (applicable only to Mediant 3000 HA),
providing dual GbE interfaces. In Simplex mode, this slot is covered with a blank
panel.
