2.6.3.1 RTM-8410 for 16-Span Configuration
The RTM-8410 for fixed 16 E1/T1 span configuration, includes the following port interfaces:
 A 100-pin female SCSI connector for E1/T1 trunks 1-16
 Two RJ-45 GbE ports (for 1+1 LAN redundancy)
This RTM is housed in Slot 2 of the chassis' rear panel.

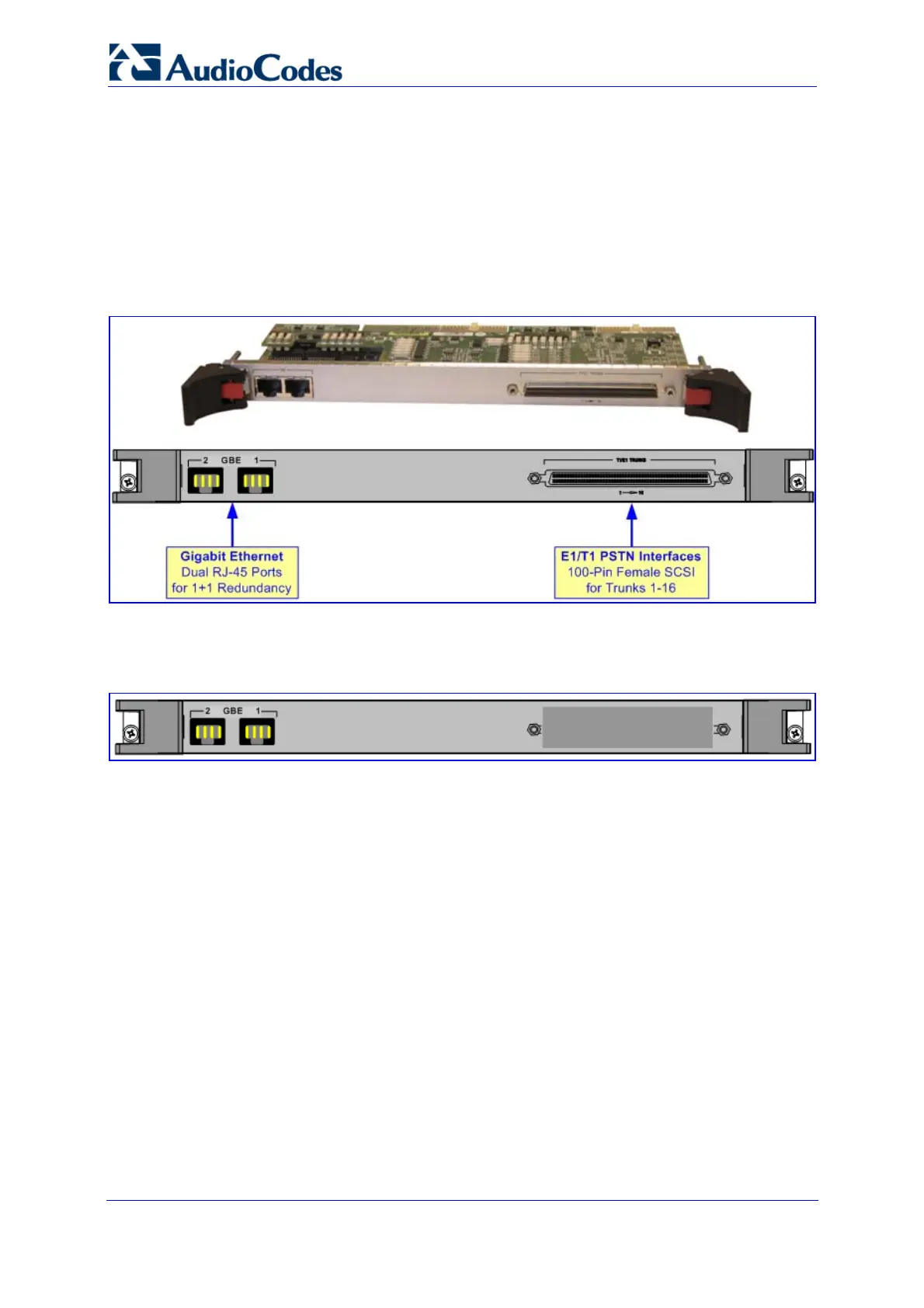

Figure 2-14: RTM-8410 for 16 Spans (Single SCSI Port)
For HA mode, an RTM-8410 that provides only GbE ports is housed in Slot 4 (as shown
below). For Simplex mode, Slot 4 is covered by a blank panel.
Figure 2-15: RTM-8410 Redundant for 16 Spans in Slot 4 (Only for Mediant 3000 HA)
