AudioCodes Mediant 3000 - Figure 3-10: 68-Pin SCSI Female Connector on RTM-8410 Blade; Table 3-5: E1;T1 Connections 26 - 42 on the 68-Pin SCSI Connector

Version 5.8 57 July 2009
Installation Manual 3. Installation
E1/T1 Number (1 to 25)
RTM-8410 in Slot 1
E1/T1 Number (43 to 67)
RTM-8410 in Slot 4
Tx Pins
(Tip/Ring)
Rx Pins (Tip/Ring)
24 66 48/47 98/97
25 67 50/49 100/99
The 68-pin female SCSI connector is shown in the figure below and must mate with a male
connector that is wired according to the connector pinouts in the following table.

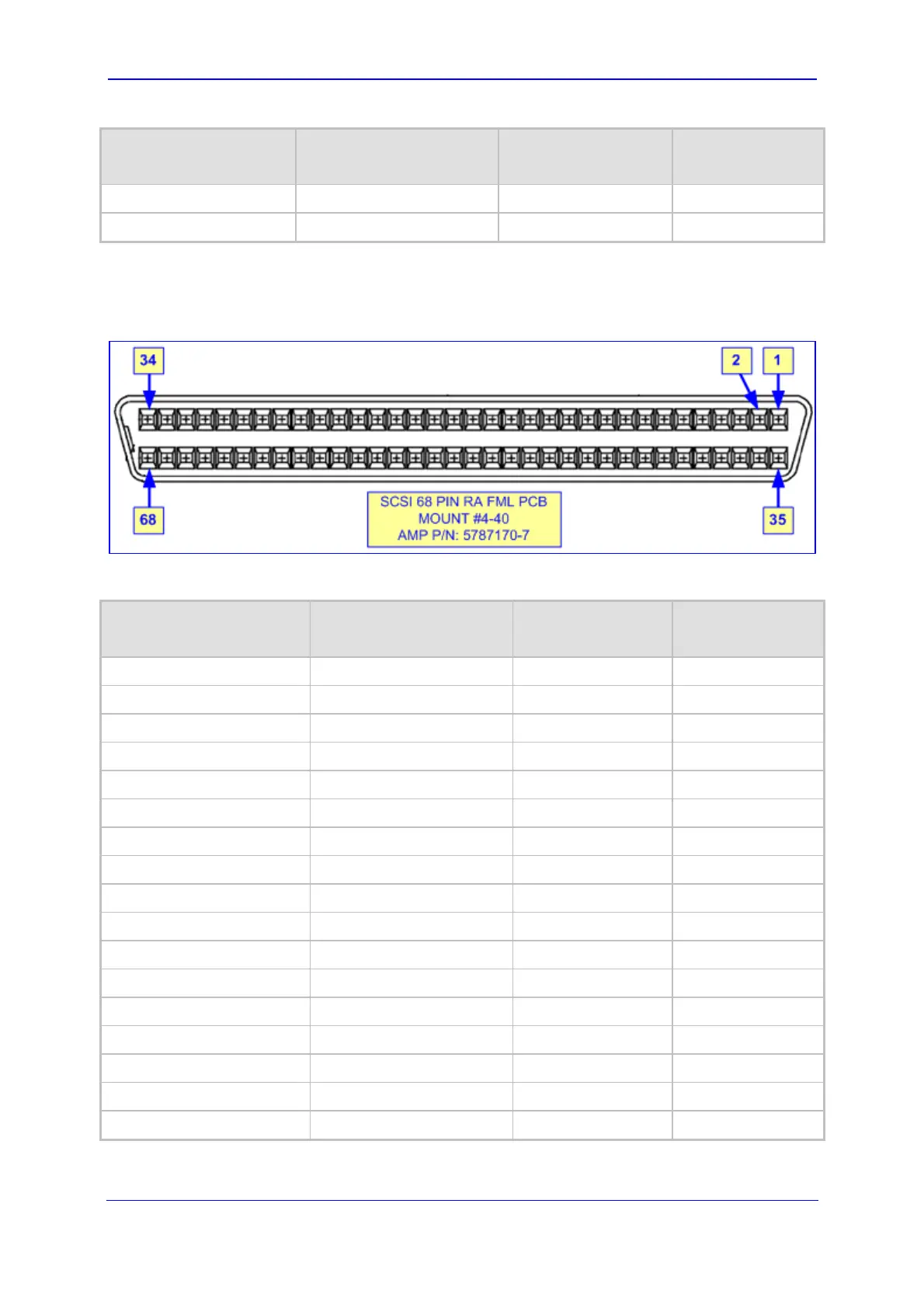

Figure 3-10: 68-Pin SCSI Female Connector on RTM-8410 Blade
Table 3-5: E1/T1 Connections 26 - 42 on the 68-pin SCSI Connector
E1/T1 Number (26 to 42)
RTM-8410 in Slot 1
E1/T1 Number (68 to 84)
RTM-8410 in Slot 4
Tx Pins
(Tip/Ring)
Rx Pins (Tip/Ring)
26 68 2/1 36/35
27 69 4/3 38/37
28 70 6/5 40/39
29 71 8/7 42/41
30 72 10/9 44/43
31 73 12/11 46/45
32 74 14/13 48/47
33 75 16/15 50/49
34 76 18/17 52/51
35 77 20/19 54/53
36 78 22/21 56/55
37 79 24/23 58/57
38 80 26/25 60/59
39 81 28/27 62/61
40 82 30/29 64/63
41 83 32/31 66/65
42 84 34/33 68/67
