Installation Manual 40 Document #: LTRT-94704
Mediant 3000 & IPmedia 3000
2.9.1.2 AC Power Supply Modules
The PS/AC/3K Power Supply (PS) module is an advanced-design, multi-output switching
power supply, which can be provided in AC primary input power configurations. The PS
modules are located on the front panel and connect to the PEM modules (located on the
rear panel) through the chassis' backplane.
Power for the device is typically supplied from redundant AC power feeds, whose input
voltage ranges from 100-240 VAC. The PS modules function in an output current, load-
sharing configuration to provide necessary voltages and fail-safe operation to the blades in
the chassis.
Table 2-20: PS/AC/3K Technical Specifications
Function Specification
Output
Output Power
300 watts maximum, continuous
Outputs (V1-V4)
+3.3 V at 40 A; +5 V at 40 A; +12 V at 5.5 A; -12 V at 1.5A
Controls and
Signaling
TTL
General Characteristics
Efficiency
75% at full load
Safety Standards
EN 60950-1, UL 6050-1
AC Input
PEM/AC
Power Entry Module for AC
Input
100 to 240 V AC 50/60 Hz, 8A Max

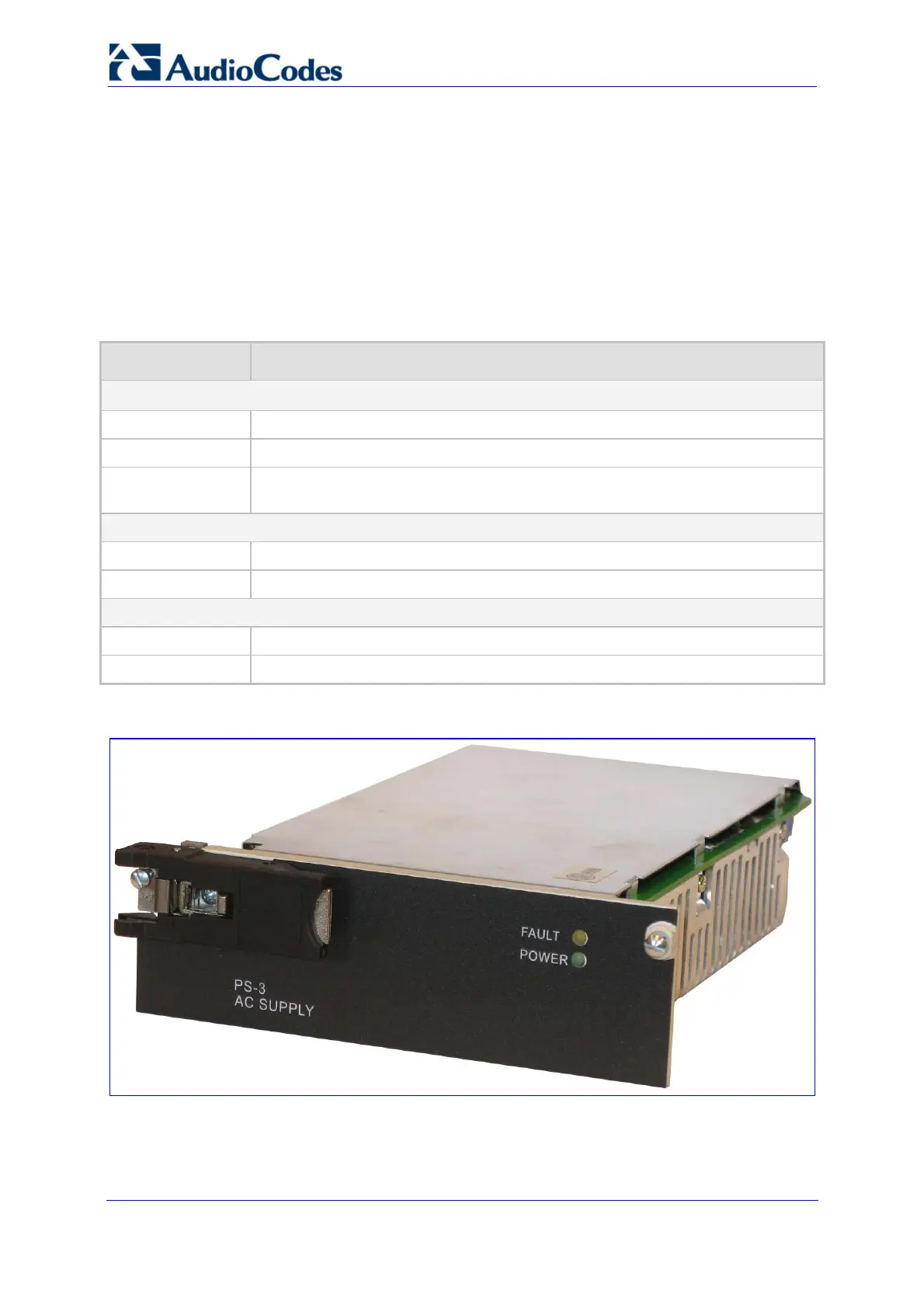

Figure 2-21: PS/AC/3K Power Supply Module
