AudioCodes MediaPack MP-112 - Figure 3-6: RJ-11 Phone Connector Pinout; Figure 3-7: 50-Pin Telco Connector (MP-124;FXS Only); Figure 3-8: MP-124 in a 19-Inch Rack with MDF Adaptor

MediaPack SIP
MediaPack SIP User’s Manual 34 Document #: LTRT-65405

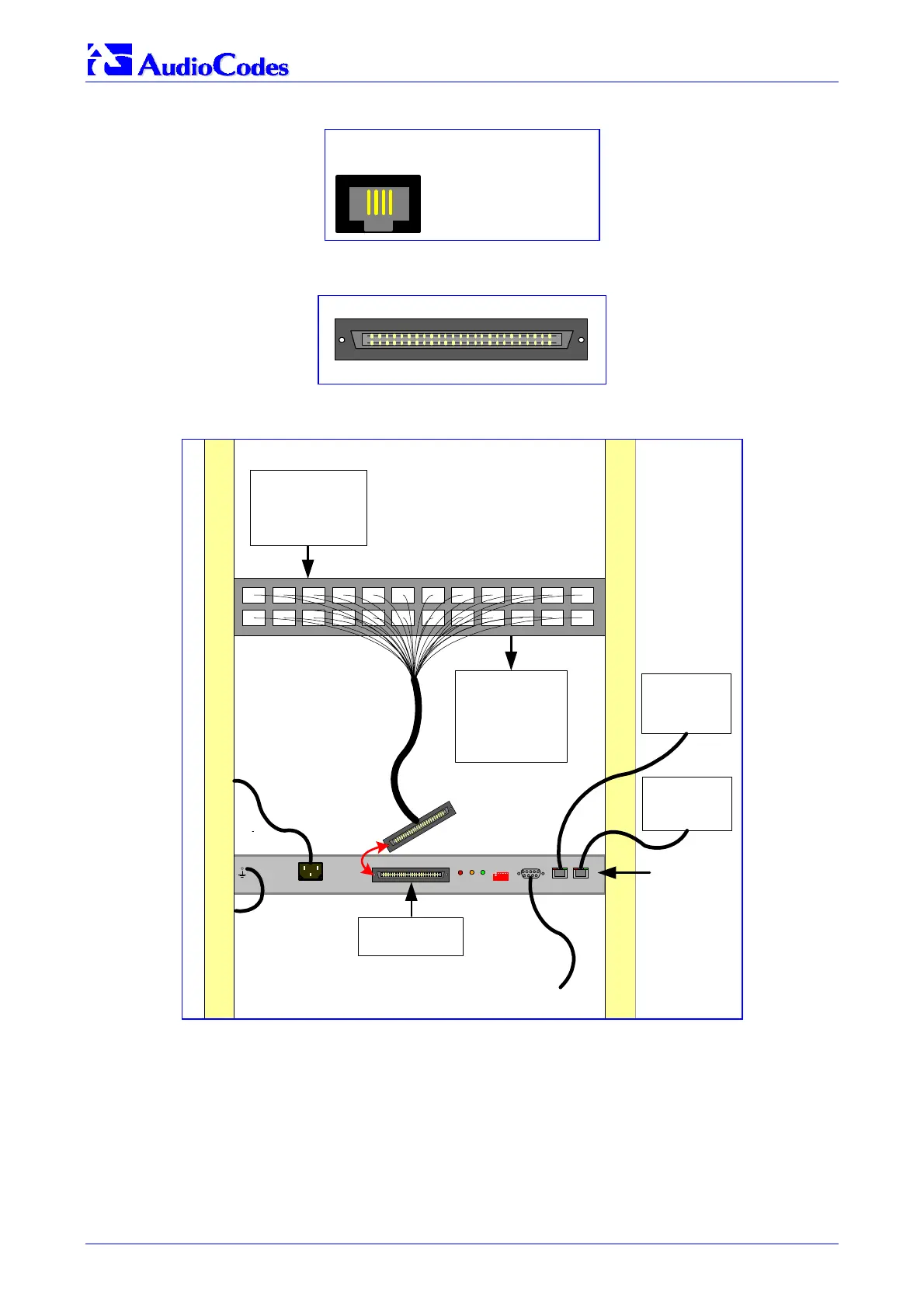

Figure 3-6: RJ-11 Phone Connector Pinout
1 2 3 4
1 -
2 -
3 -
4 -
Not connected
RJ-11 Connector and Pinout
Not connected
Tip
Ring
Figure
3-7: 50-pin Telco Connector (MP-124/FXS only)
125
26
50
Pin Numbers
Figure
3-8: MP-124 in a 19-inch Rack with MDF Adaptor
Data Cntrl Ready
CONFIG
1 2 3 4 5
ON
RS-232
Eth 1 Eth 2
ANALOG LINES 1-20
100 - 250V~
50 - 60Hz 2A
AC Power Cord
Grounding Strap
RS-232 Cable
50-pin female
Telco connector
Back-up
LAN Cable
to Eth 2
Connect to
here
MP-124
Rear View
REAR OUTPUT
24 wire pairs in
Octopus cable
with 50-pin male
Telco connector
FRONT INPUT
24 line cords
2-wire with RJ-11
connectors
M D F Adaptor Block - rear
Primary
LAN Cable
to Eth 1
19-inch Rack
Rear View
