5.3.4. Fieldbus terminal compartment: open

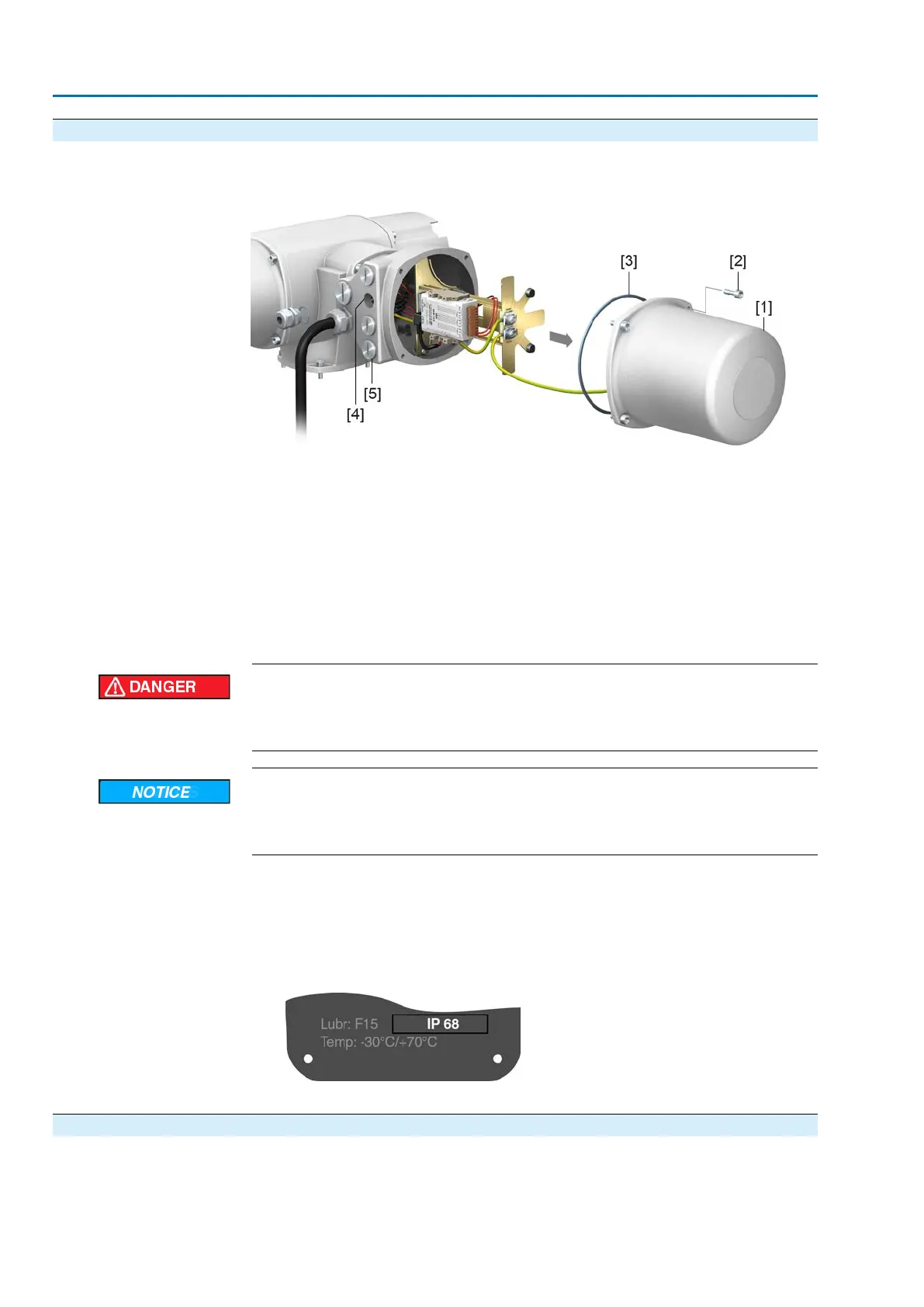

Figure 23: Open cover to fieldbus terminal compartment
[1] Cover (fieldbus terminal compartment)
[2] Screws for cover
[3] O-ring
[4] Cable entries for fieldbus cables
[5] Blanking plug
For connecting the Industrial Ethernet cable within the AUMA plug/socket connector,
a field-assembled Ethernet connector is used. When removing the cover [1], the
connection board is easily accessible.
Electric shock due to presence of hazardous voltage!
Failure to observe this warning results in death or serious injury.
→
Disconnect device from the mains before opening.
Electrostatic discharge ESD!
Risk of damage to electronic components.
→
Earth both operators and devices.
1. Loosen screws [2] and remove cover [1].
2. Insert cable glands suitable for fieldbus cables.
➥
The enclosure protection IP… stated on the name plate is only ensured if suit-
able cable glands are used.
Figure 24: Example: Name plate for enclosure protection IP68
3. Seal unused cable entries with suitable plugs.
5.3.5. Industrial Ethernet cable: connect
Information This description applies to the connection for Ethernet cables equipped with RJ-45
connectors.
30
SA 07.2 – SA 16.2 / SAR 07.2 – SAR 16.2 Control unit: electronic (MWG)
Electrical connection AC 01.2 Non-Intrusive EtherNet/IP
