4.6 System representation
The representation below shows the simplified design of an epac in SIL version.

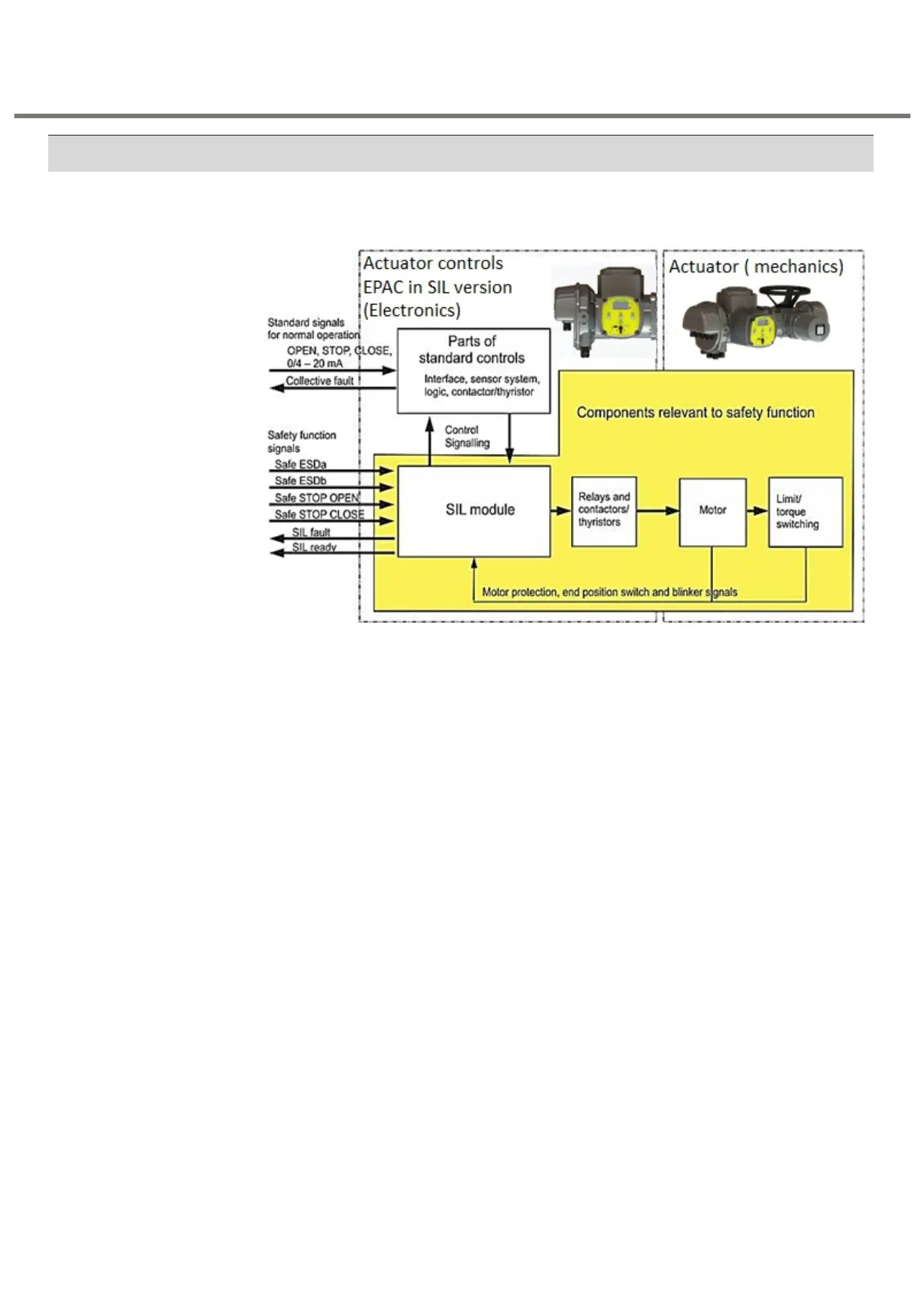

Figure 7: Simplified system representation
Multi-turn actuators
SA series with Control 3.XX /NI/SIL
