5.2.1. Terminal compartment (for mains connection): open

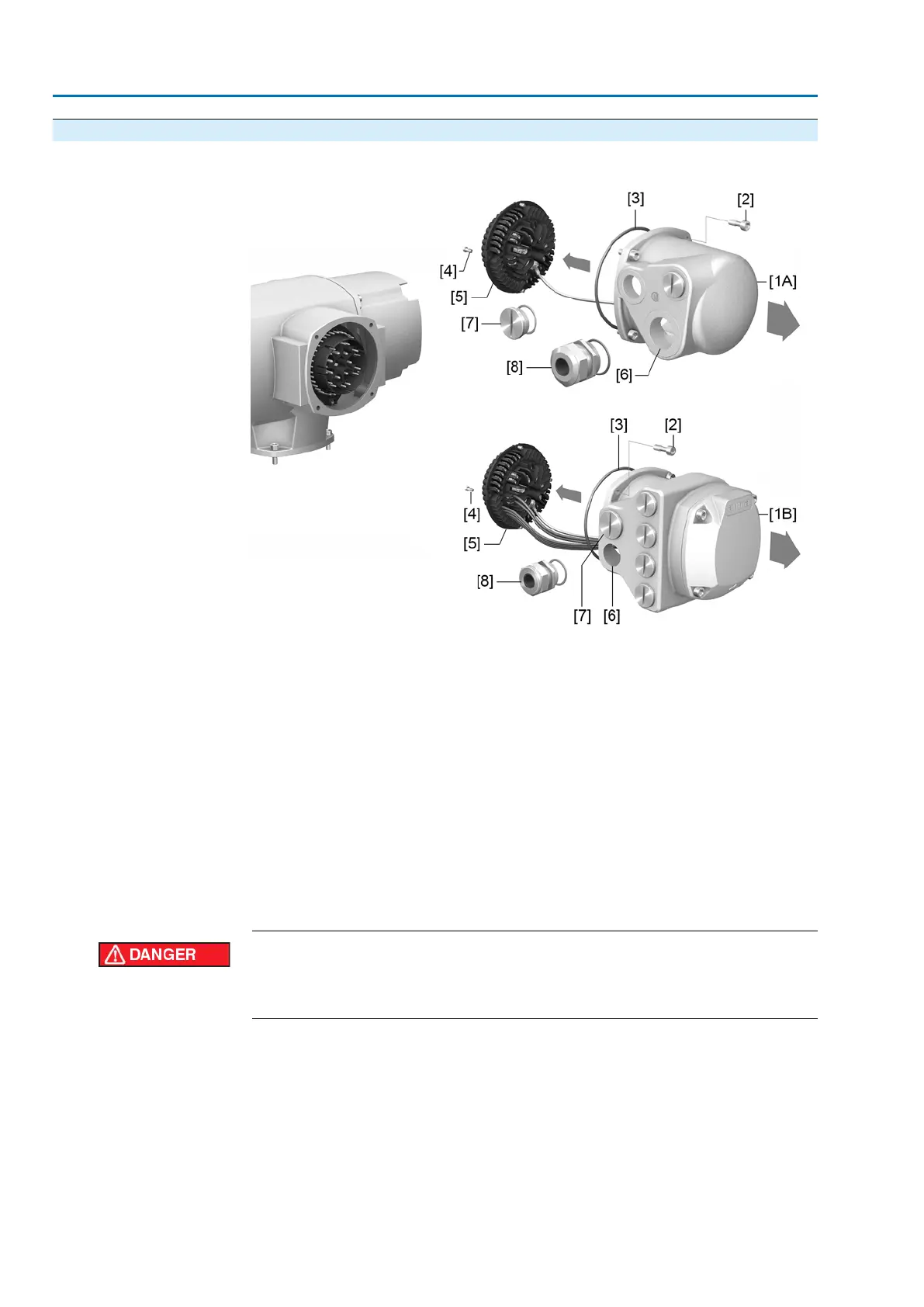

Figure 19: Terminal compartment: open
[1A] S/SH cover (figure shows S version)
[1B] Connection housing (SD version)
[2] Screws
[3] O-ring
[4] Screws for socket carrier
[5] Socket carrier
[6] Cable entry
[7] Blanking plug
[8] Cable gland (not included in delivery)
Information For S/SH version, connection of HART cables is made at the socket carrier. For SD
version, connection of HART cables is separate of mains connection (refer to <HART
terminal compartment: open>).
Hazardous voltage!
Risk of electric shock.
→
Disconnect device from the mains before opening.
1. Loosen screws [2] and remove cover [1] or connection housing [1B].
2. Loosen screws [4] and remove socket carrier [5] from cover [1A] or connection
housing [1B].
26
SA 07.2 – SA 16.2/SAR 07.2 – SAR 16.2 Control unit: electronic (MWG)
Electrical connection AC 01.2 Non-Intrusive HART
