AUMA SAR 07.2 Operation Instructions

5.2.6. HART terminal compartment: close (version with HART connection board)

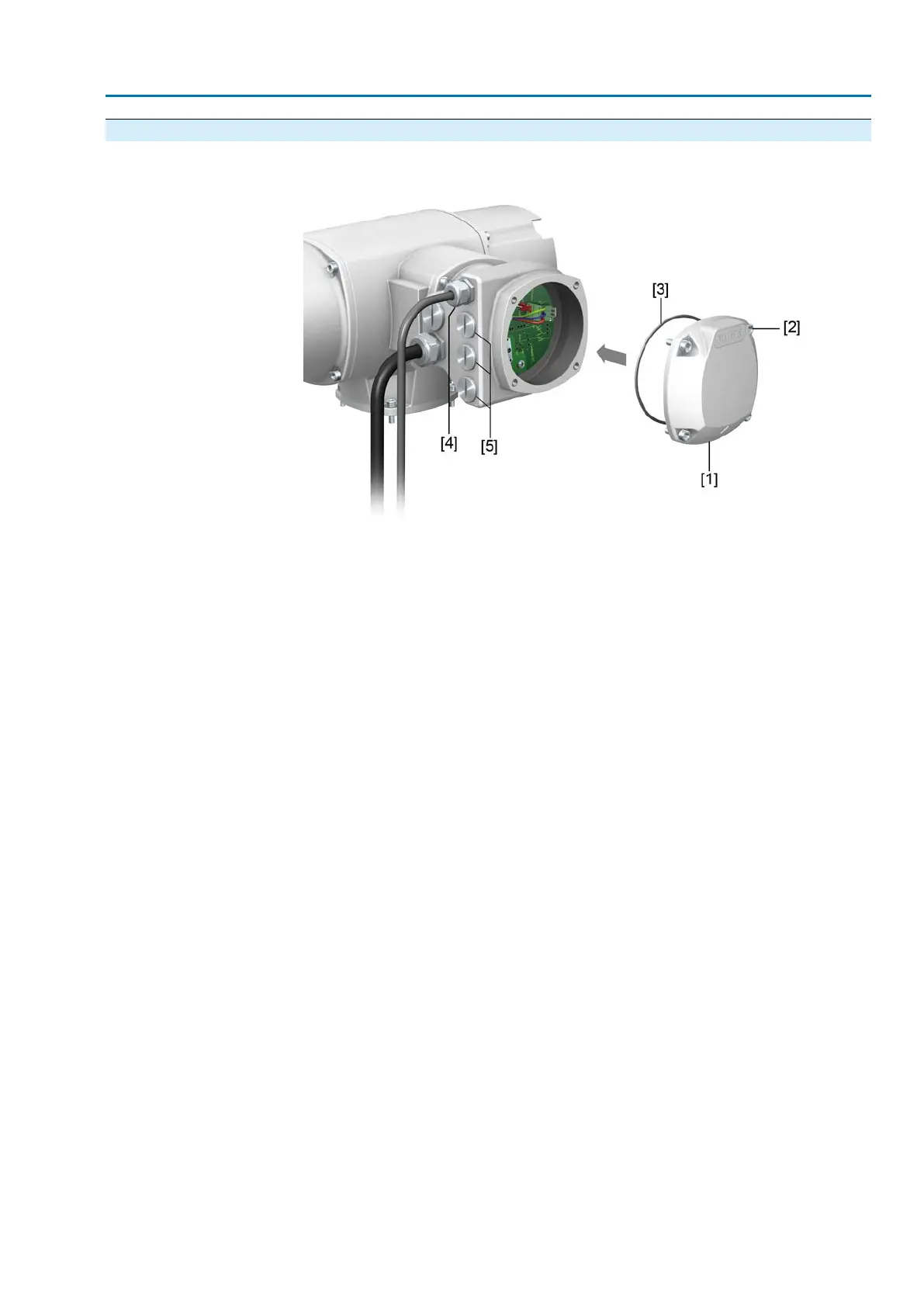

Figure 26: Close HART terminal compartment
[1] Cover (HART terminal compartment)
[2] Screws for cover
[3] O-ring
[4] Cable entries for HART cables
[5] Blanking plug
1. Clean sealing faces of cover [1] and housing.
2. Apply a thin film of non-acidic grease (e.g. petroleum jelly) to the sealing faces.
3. Check whether O-ring [3] is in good condition, correctly insert O-ring.
4. Fit cover [1] and fasten screws [2] evenly crosswise.
5. Fasten cable glands and blanking plugs applying the specified torque to ensure
the required enclosure protection.
