Table 32:
Secondary fuse F3 (internal 24 V DC supply)
AUMA art. no.F3G fuse according to IEC 60127-2/III
5 x 20 mmSize
K006.1062.0 A T; 250 VVoltage output (power supply unit) = 24 V
K006.1062.0 A T; 250 VVoltage output (power supply unit) = 115 V
F4
Table 33:
Secondary fuse F4 (internal AC supply)
1)
AUMA art. no.F4G fuse according to IEC 60127-2/III
5 x 20 mmSize
K001.1841.25 A T; 250 VVoltage output (power supply unit) = 24 V
——Voltage output (power supply unit) = 115 V
Fuse for: Switch compartment heater, reversing contactor control, PTC tripping device (at 24 V AC
only), at 115 V AC also control inputs OPEN, STOP, CLOSE
1)
F5
Automatic reset fuse as short-circuit protection for external 24 V DC supply for
customer (refer to wiring diagram)
Replace fuses F1/F2
Hazardous voltage!
Risk of electric shock.
→
Disconnect device from the mains before opening.
1. Loosen screws [1] and remove plug/socket connector [2].

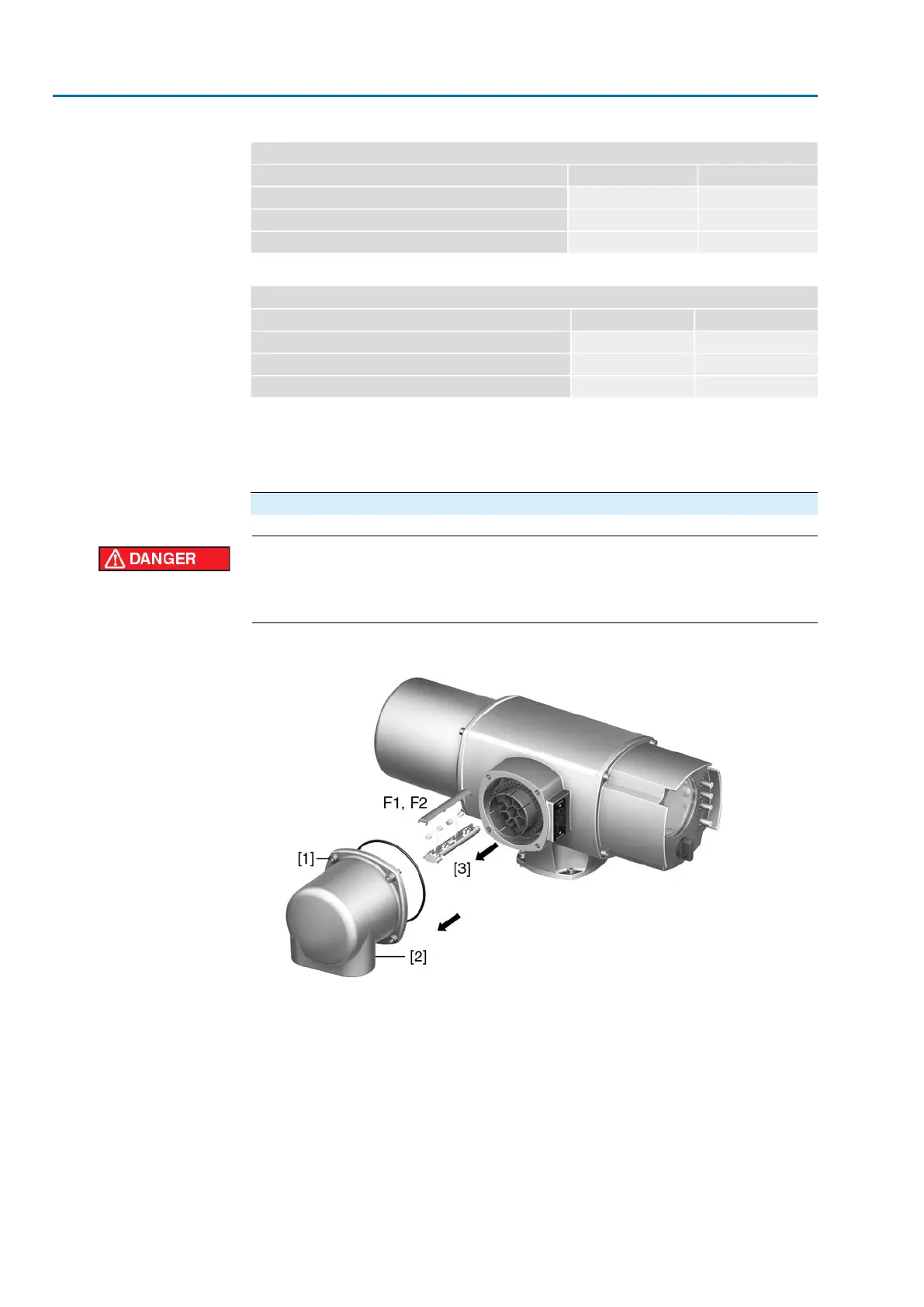

Figure 75:
2. Pull fuse holder [3] out of pin carrier, open fuse cover and replace old fuses by
new ones.
72
SA 07.2 – SA 16.2/SAR 07.2 – SAR 16.2 Control unit: electronic (MWG)
Corrective action AC 01.2 Non-Intrusive HART

AUMA SAR 07.2 Specifications

General

Type of actuator	Multi-turn actuator
Protection class	IP68
Output speed	4 to 180 rpm
Ambient temperature	-25°C to +70°C
Housing material	Aluminum
