Page 39 of 51

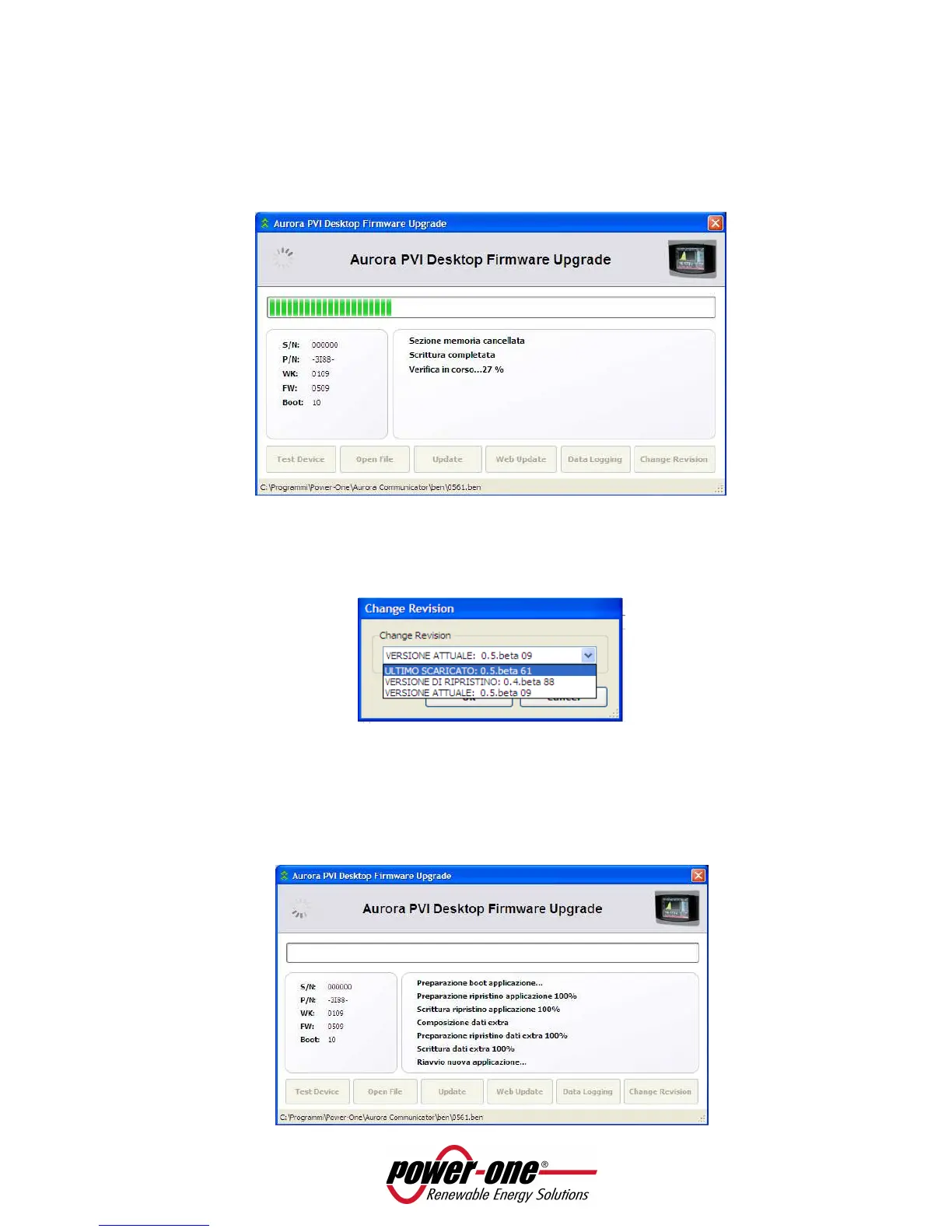

• The Firmware update will require three operations during which some messages will appear on
the display. On the PVI-DESKTOP display “FW update” will be lit. The next operations will be as
follows:
“Delete memory section”
“Writing firmware”
“Verifying firmware”
• When the three operations are completed the FW firmware version can be changed within the
PVI-DESKTOP. To carry out this operation click on Change Revision and choose the desired
version (latest downloaded, current or recovery).
• A screen, which will appear once the software revision for installation has been chosen, is
shown below. During time necessary for the version change (several minutes) the PVI-DESKTOP
display will not show any information and the process will be followed from the PC monitor.
The device will automatically restart at the end of the process. Do not disconnect the USB port
until restarting has finished.
