Autel MaxiCharger AC - Page 18

12

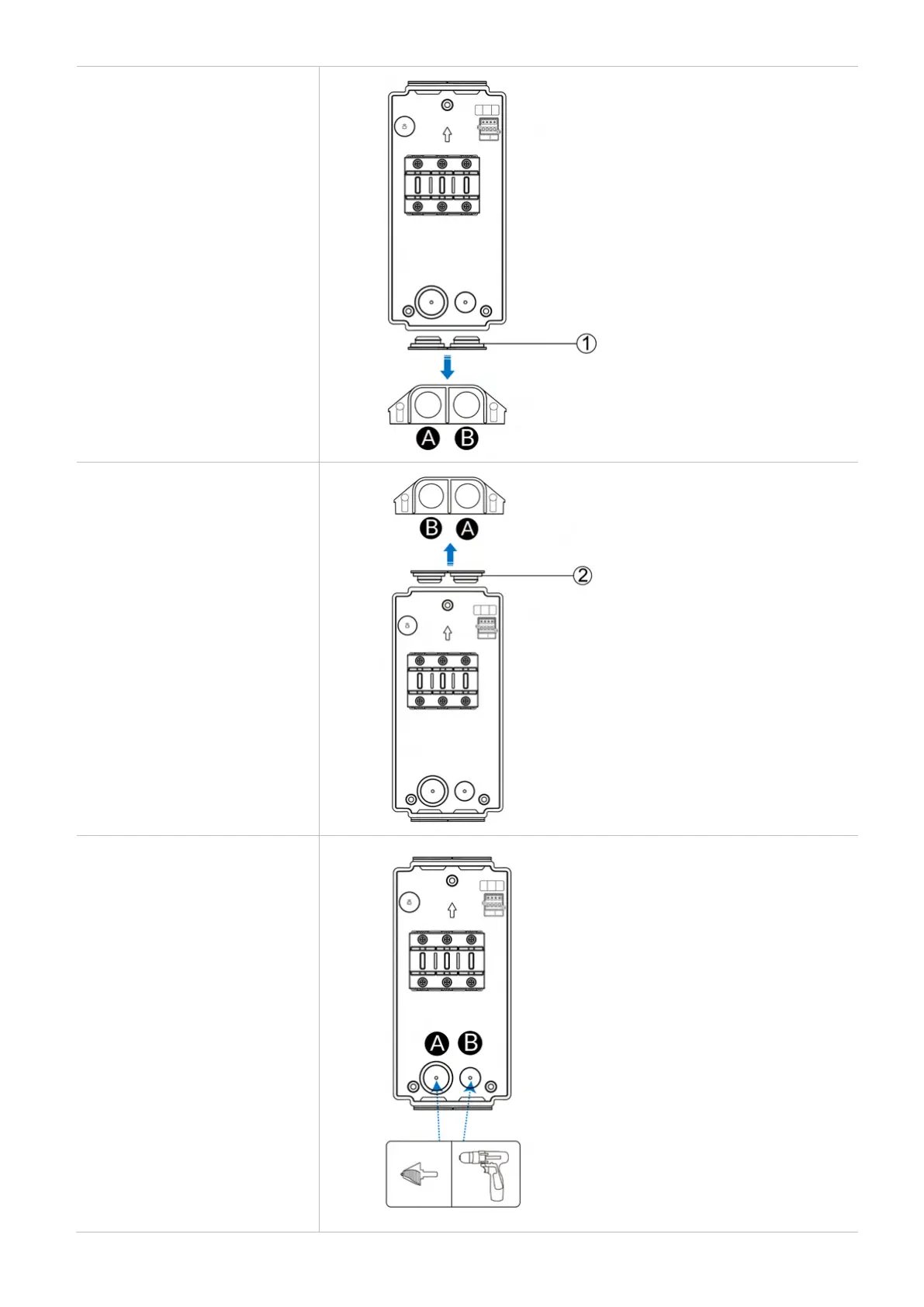

Bottom Entry:
Manually remove the plugs
(1) from the bottom of the
wire box.
Top Entry:
Manually remove the plugs
(2) from the top of the wire
box.
Rear Entry:
Use a power drill with the
1
3
/
8
” (35 mm) step bit to
drill into the rear cable
entries.
