Rear entry:

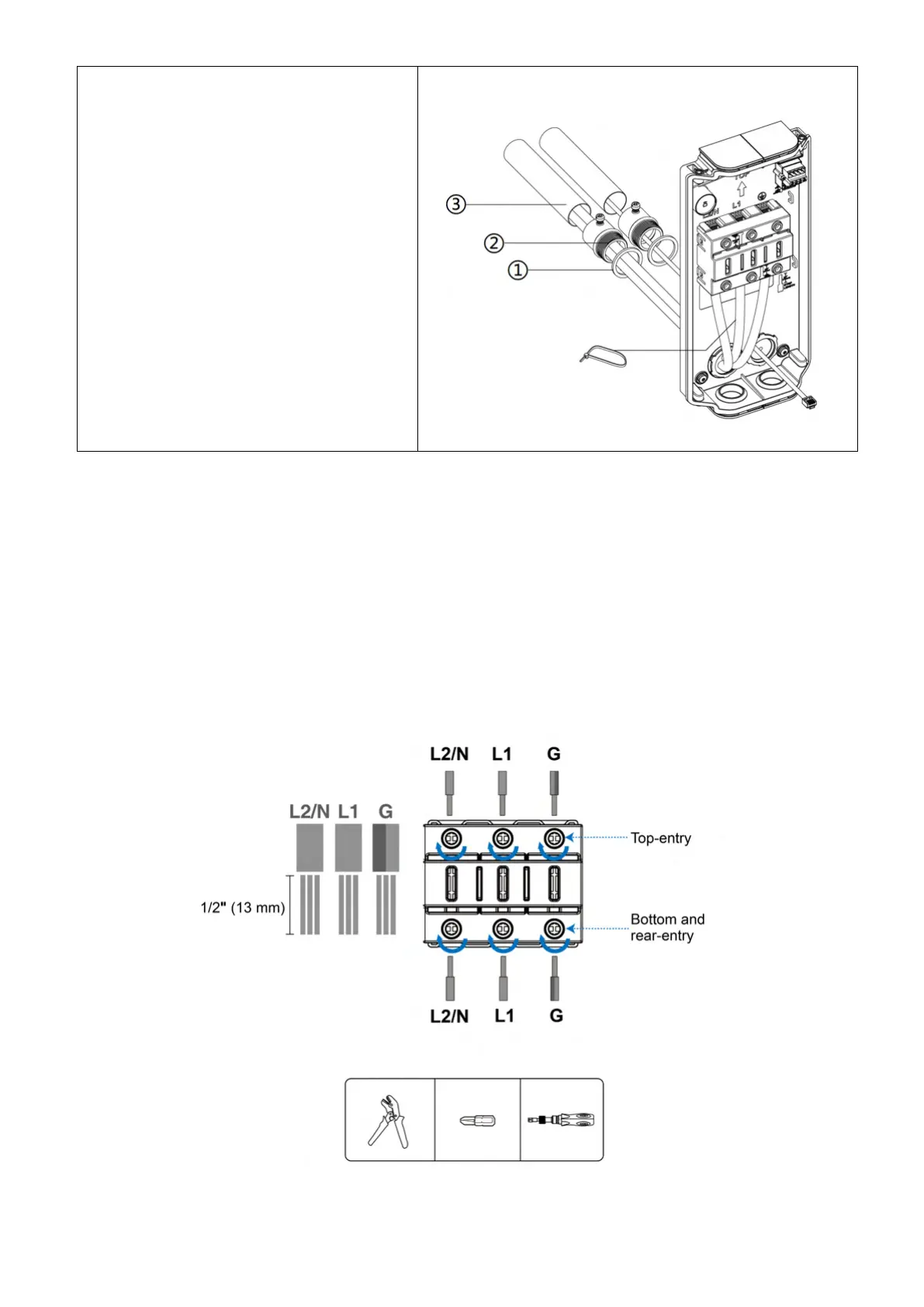

Route the cable through the conduit (3),
the conduit fitting (2), and the sealing
ring (1) into the charger from the rear.
3.4.1 Power Cable Connection
1. Loosen the terminal screws using a Phillips screwdriver with a PH2 bit or a flathead screwdriver
with the tip size being 1/4” (6 mm) x 0.035” (0.9 mm).
2. Strip the wires to 1/2 inch (13 mm) and push them into the holes.
3. Connect the wires (L1, L2, and Ground) according to the diagram and tighten each terminal screw
to 35 lbf·in (4 Nm).
4. Use the zip tie to organize the cables (for bottom and rear entries). See the table above for details.
