STEP 3

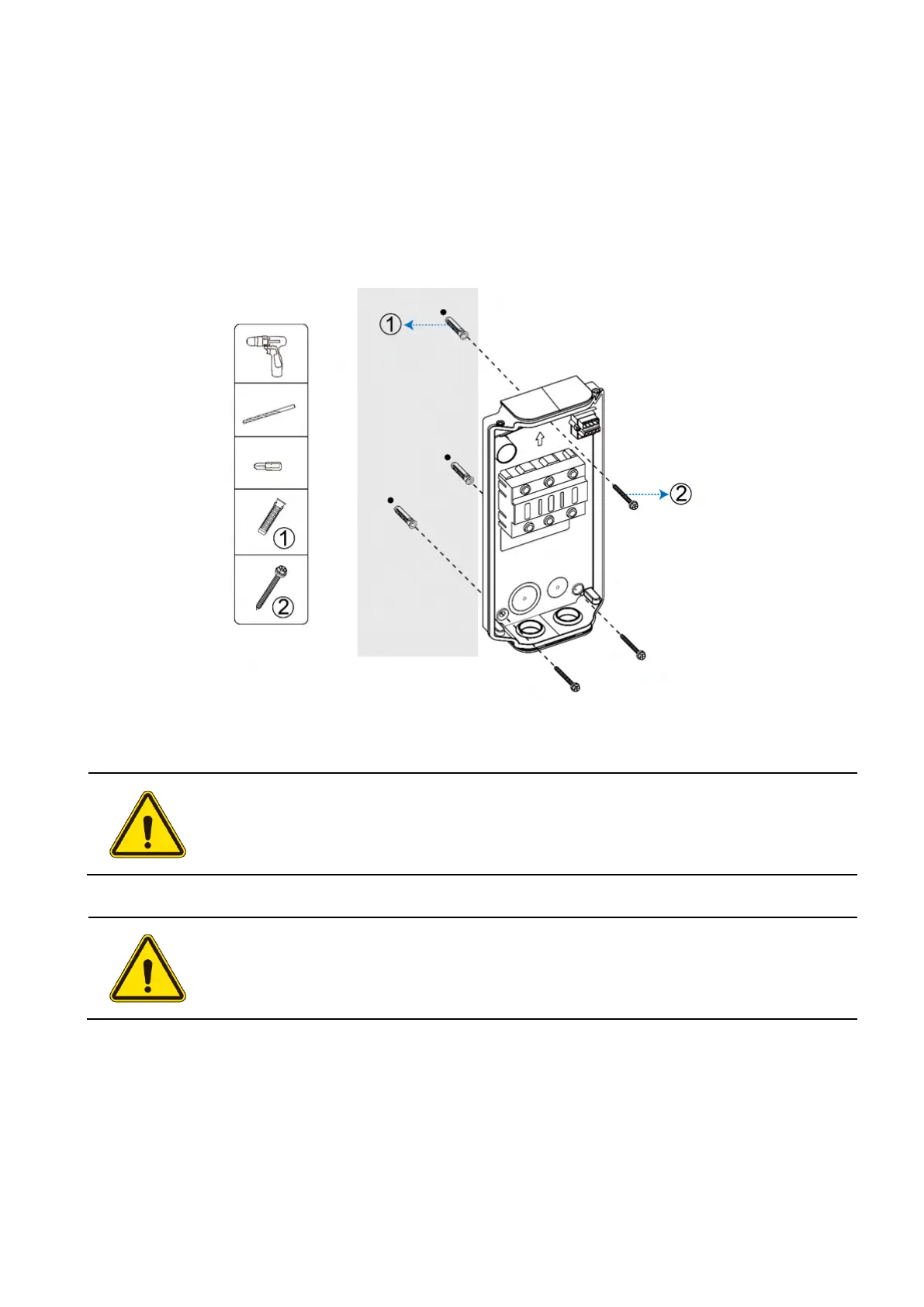

1. Drill 2 inches (50 mm) into the three holes measuring 5/16 inch (8 mm) in diameter.
2. Tap the three wall anchors (1) into the holes.
3. Place the wire box against wall aligning with the three holes. Then insert and tighten the three
M1/5” (5 mm) x 1
3
/
5
” (40 mm) self-tapping screws using a power drill with the Phillips bit (PH2) to
secure the wire box.
3.4 Cable Connection
CAUTION
For the power cable, use copper conductors with the wire size being 3 AWG
(26.67 mm²).
ATTENTION
Pour le câble d'alimentation, utilisez des conducteurs en cuivre de calibre 3 AWG
(26.67 mm²).
Prepare the conduits and conduit fittings (1-inch recommended) and route them into the charger
according to the cable entries.
