Connecting door lock inputs in vehicles without driver’s priority door unlock:
This type of keyless entry system is common in import vehicles as well as many Jeep vehicles. When unlocking

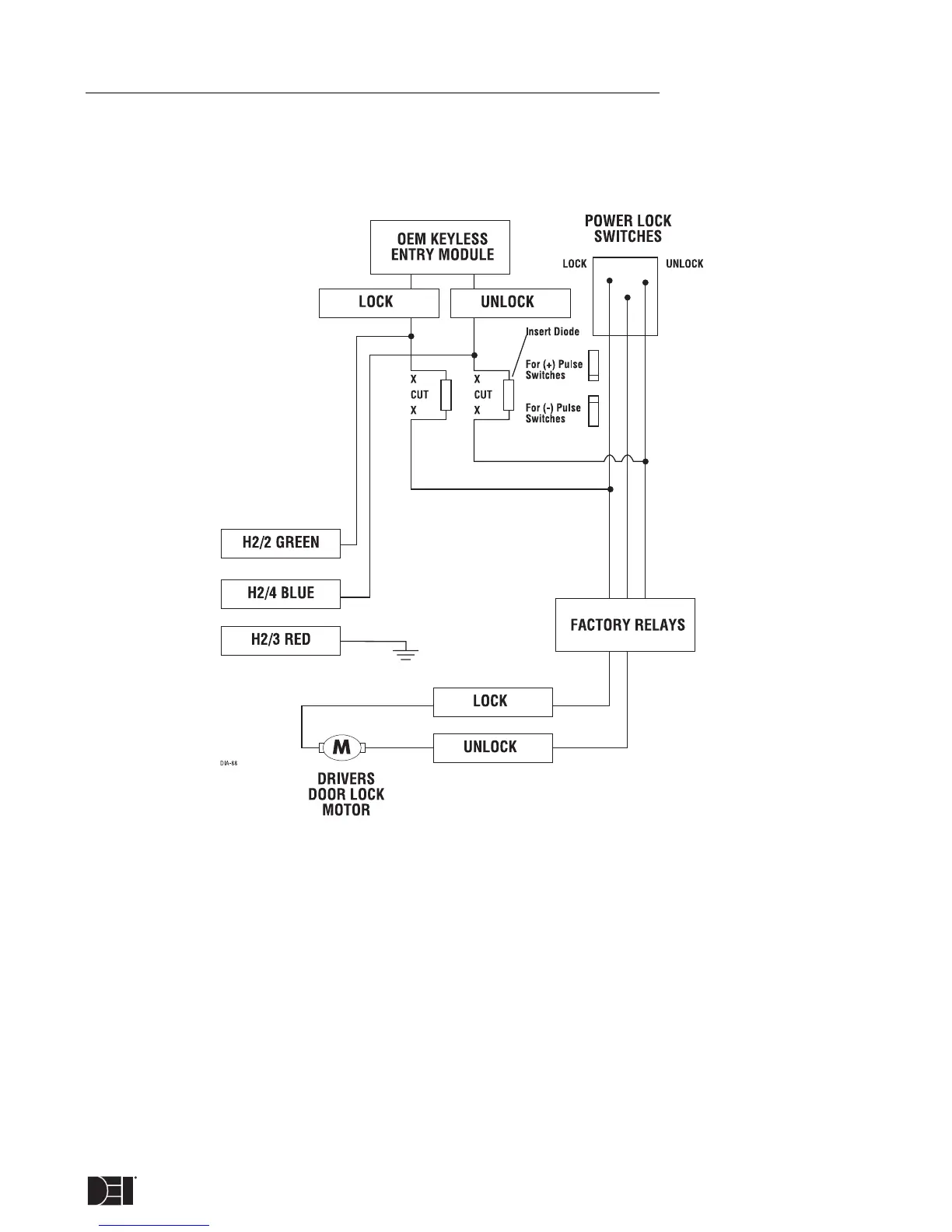

the doors with the transmitter all doors unlock at the same time. The following diagram shows how to install the
system and prevent disarming from the interior lock switch.
Note: Failure to insert the diodes at the correct point will allow the system to be disarmed by one of the
power door lock switches inside the vehicle. The best place to insert the diode is at the keyless entry mod-
ule itself or at the relays.
