INTERNAL PROGRAMMING JUMPER

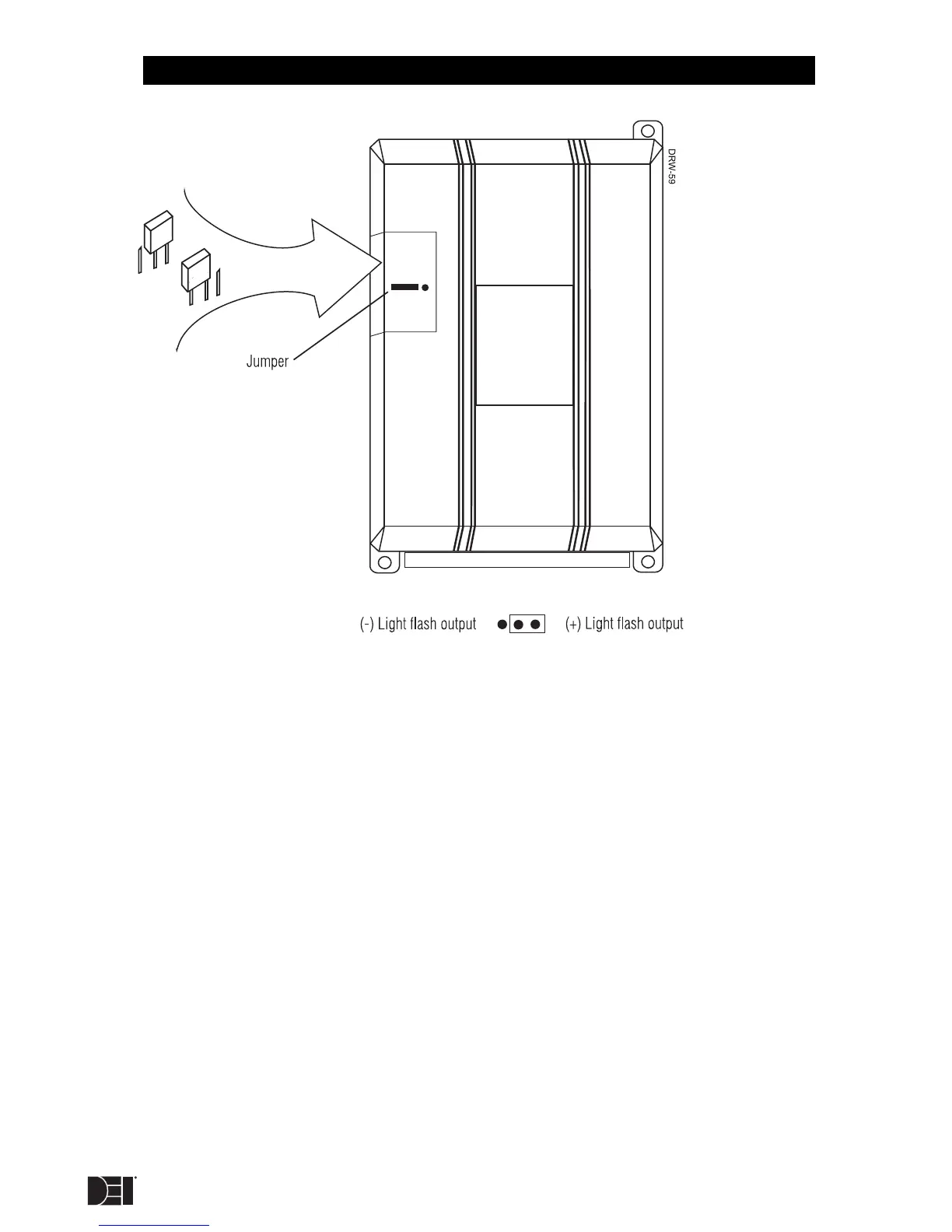

LIGHT FLASH JUMPER: This jumper is used to determine the light flash output. In the (+) position, the on-
board relay is enabled and the unit will output (+)12V on the WHITE wire, H1/2. In the (-) position, the on-board
relay is disabled. The WHITE wire, H1/2, will supply a 200 mA (-) output suitable for driving factory parking light
relays. To access the jumper, remove the sliding door from on top of the control module.
