Before beginning the installation:
• Check with the customer on Status LED location.
• Use seat and fender covers to protect the vehicle.
• Remove the domelight fuse. This prevents accidentally draining the battery.
• Roll down a window to avoid being locked out of the car.
• Do not disconnect the battery if the vehicle has an anti-theft coded radio. If equipped with an air bag,
avoid disconnecting the battery if possible.
• Remove necessary under-dash trim panels to provide access for mounting the system’s components.
IMPORTANT! Please read this entire installation guide before beginning the installation. The installa-
tion of this security system requires interfacing with many of the vehicle’s systems.
Many new vehicles use low-voltage or multiplexed systems which can be damaged by
low resistance testing devices, such as test lights or logic probes. Test all circuits with
a high-quality digital multi-meter before making the connections.
IMPORTANT! Many airbag systems will display a diagnostic code through their warning light after
they lose power. Disconnecting the battery requires this code to be erased, which can
require a trip to the dealer.
After the install:
• Test all functions. The “Using Your System” section of the Owner’s Guide is very helpful when testing.
• When testing, don’t forget that this system is equipped with Nuisance Prevention
®
Circuitry. NPC
™
. This
circuitry can bypass both instant trigger zones, making them seem to stop working.
• Carefully reassemble the under-dash trim panels.
• Inspect the engine compartment for tools that may have been left behind.

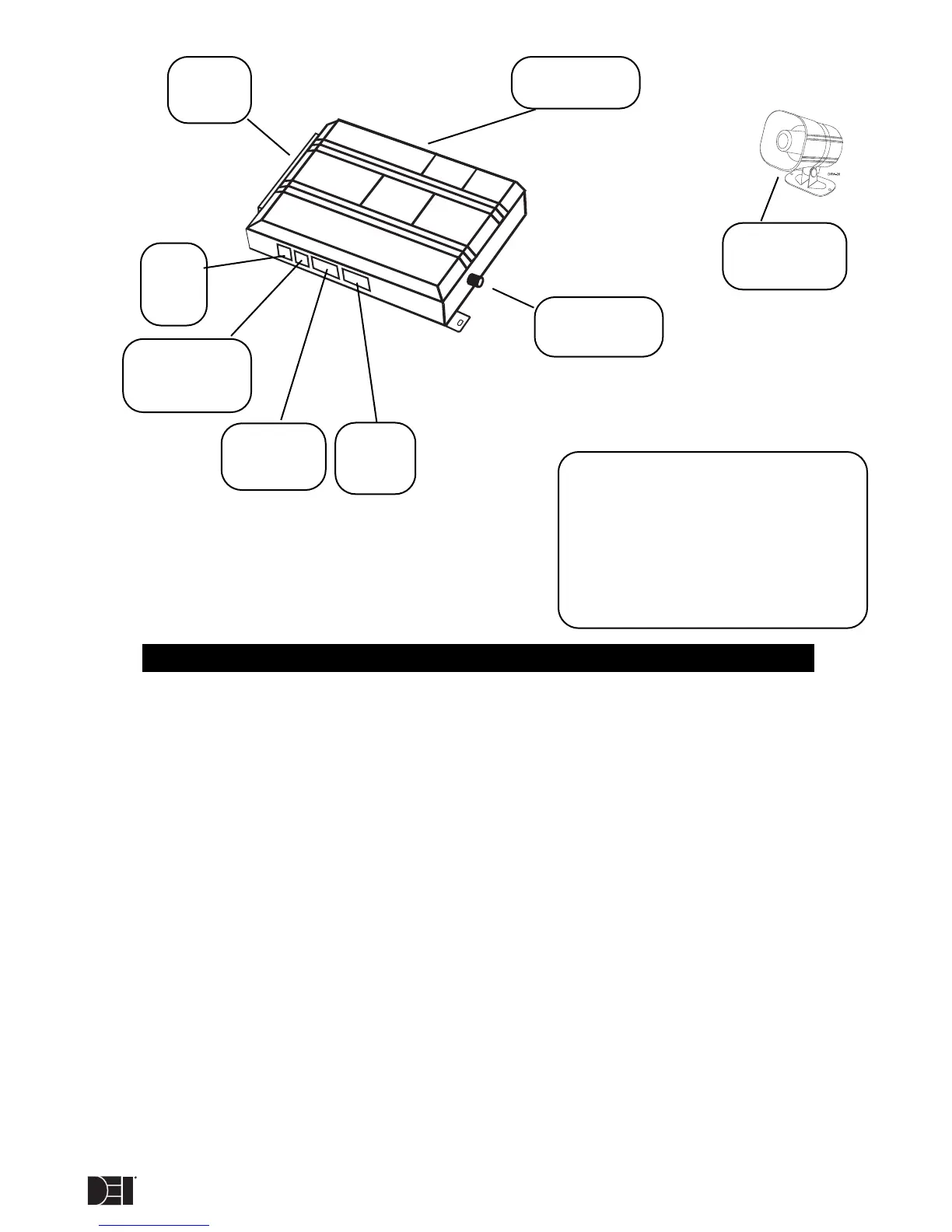

2-pin
micro
LED
plug
5-pin
auxiliary
plug
INSTALLATION POINTS TO REMEMBER
Primary
Harness
Plug H1
514T Revenger
Soft Chirp
siren
2-pin-mini blue
valet/program
plug
Control Module
Also Included:
Plug-in Status LED
Plug in Valet/program switch
Primary Harness (H1)
5-Pin Auxiliary Harness
Pre-wired Starter Kill Relay
Shock Sensor
Adjustment
4-pin
optional
sensor plug
