Control Module
Never put the control module in the engine compartment!
The first step in hot-wiring a vehicle is removing the driver's side underdash panel to access the starter and igni-
tion wires. If the control module is placed just behind the driver's side dash it can easily be disconnected.
When locating the control module, try to find a secure loca-
tion that will not require you to extend the harnesses’ wires
(they are 1.5 meters long). Keep it away from the heater
core (or any other heat sources) and any obvious leaks.
The higher the control module is in the vehicle, the better
the transmitter range will be. If you put the control module
under a seat or inside a metal dashboard, range will suffer.

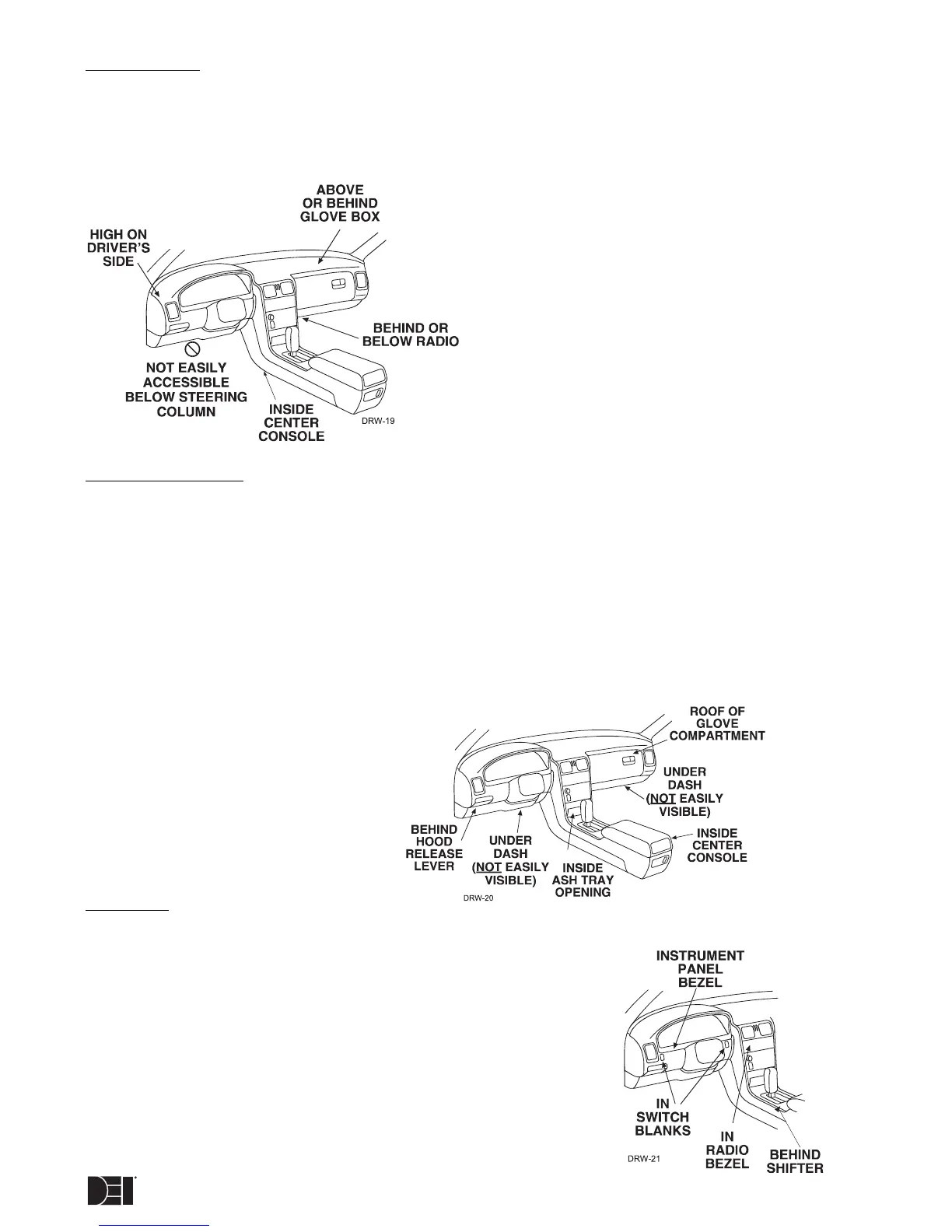

Some good control module locations: Above the glove box,
inside the center console, above the underdash fuse box,
above the radio, etc.
Valet/program Switch
Ensure that the location you pick for the switch has sufficient clearance to the rear. The switch should be well hid-
den. It should be placed so passengers or stored items (such as in a glove box or center console) cannot acciden-
tally hit it. The switch fits in a 9/32" hole.
IMPORTANT! When the vehicle is delivered, please show the user where the switch is located and how to
disarm the system with it.
Status LED
Things to remember when positioning the Status LED:
• It should be visible from both sides and the rear of the vehicle,
if possible.
• It needs at least 1/2" clearance to the rear.
• It is easiest to use a small removable panel, such as a switch
blank or a dash bezel. Remove it before drilling your 9/32" hole.
• Use quick-disconnects near the LED wires if the panel is re-
movable. This allows mechanics or other installers to remove
the panel without cutting the wires.
