Check Platter Actuation
1. Test each motor clockwise (CW) and counter-clockwise (CCW) for
a few seconds.
Position the Direction switch in either the CW or CCW position.
Then, activate the Motor Switch.
Observe proper rotation. Then, reverse the Direction switch
and test again.
As each Motor switch is actuated, the appropriate platter
should turn, and the sensor lights should blink. While testing
each motor, please note how the platters should react to the
movement. See the appendix for a drawing of the motors,
platters, and bins.
2. Test the door baffle by positioning the Direction switch in either the
CW or CCW position and actuating the Baffle switch.
Main: Main Platter – the entire internal array
will rotate
LSP: Large Sub Platter – 3 individual and 3
groups of 3 trays assemblies will rotate
SS3, 2, 1: Small Sub Platters – Individual tray
assemblies in groups of 3 will rotate

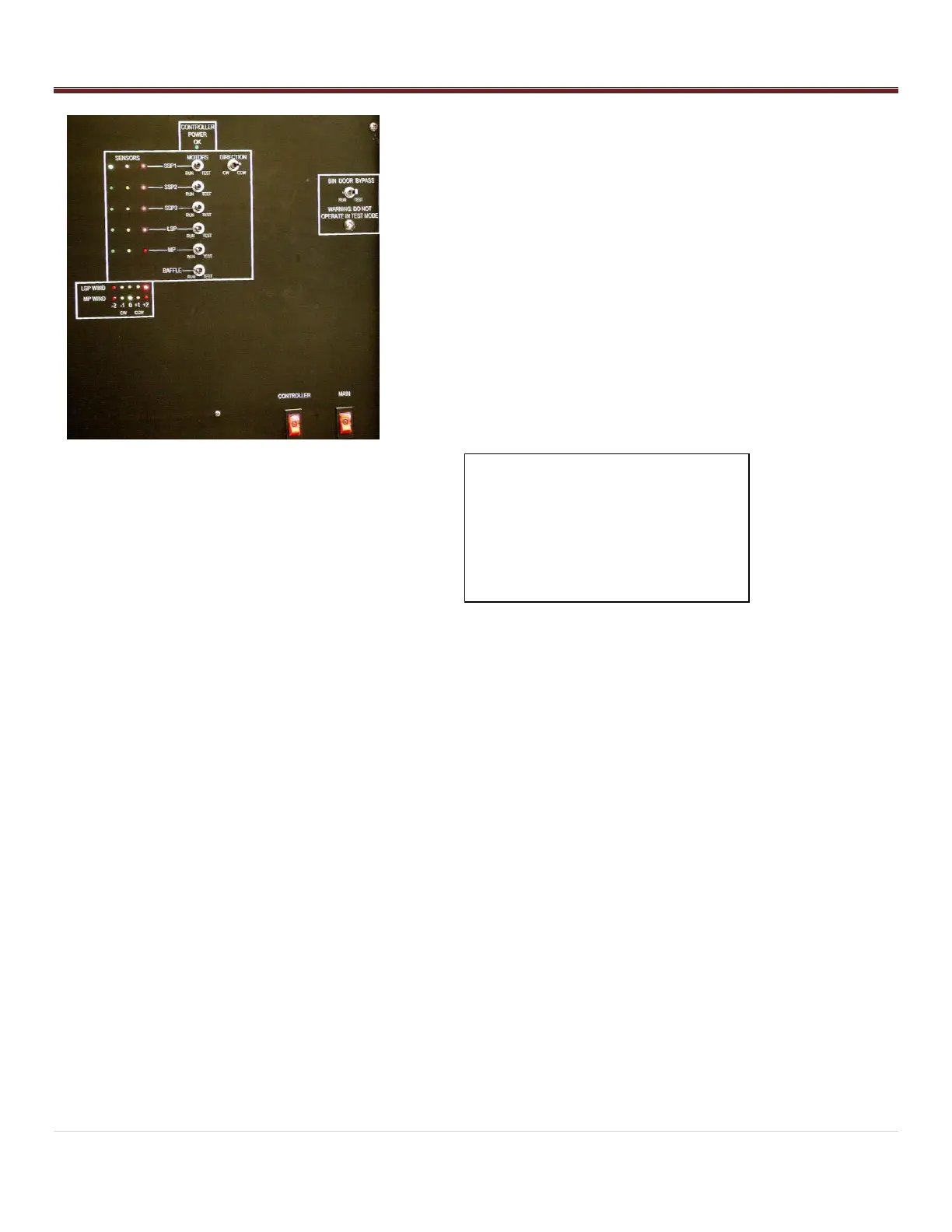

SWITCH DEFINITIONS
MP = MAIN PLATTER
LSP = LARGE SUB PLATTER
SSP3 = SMALL SUBPLATTER #3
SSP2 = SMALL SUB PLATTER #2
SSP1 = SMALL SUB PLATTER #1
